Max 96 Lc Fibers 1U 48 Ports Utp Cat 6 Patch Panel

Product details
Material:Cold-rolled Steel;Port:SHENZHEN;
Place of Origin:Guangdong China;Application:Rack Mount;
Color:Black;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Feature:High Density;Supply Ability:10000 Piece/Pieces per Month fiber optic patch panel;
Adapter Type:LC Duplex;Product name:fiber optic patch panel;
Design Style:Pre-terminated;Model Number:fiber optic patch panel;
Brand Name:NECERO;Company Type:Factory;
Dimensions:485mmx294mmx44mm;Packaging Detail:Carton Box or others.;

Max 96 Lc Fibers  1U 48 Ports Utp Cat 6 Patch Panel

We are 20 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.



Product Description



ODU-L18 Dimensions and Capability
HeightDimensions(W*D*H)Quantity of Cassette/PlateMax Capacity
LX-L CassetteLX-M Plate
1U485mm*294mm*44mm4496



LX-L Cassette Technical Specifications
SPECIFICATIONLX-L-1LX-L-2
Total Fiber Count1224
Front Adapter TypeLC DuplexLC QUAD
Front Port Count66
Rear Adapter TypeMTP/MPOMTP/MPO
Rear Port Count12



LX-M Plate Technical Specifications
SPECIFICATIONLX-M-1LX-M-2
Total Fiber Count1224
Front Adapter TypeLC DuplexLC QUAD
Front Port Count66



Operation Conditions
Operating Temperature-20℃ -- +60℃
Storage Temperature-40℃ -- +70℃
Humidity90% at 30℃
Air Pressure70kPa – 106kPa



Shipping Information
Package ContentsPatch panel, 1 unit
Package Dimensions(W*H*D)530mm*380mm*115mm
MaterialCarton box
Weight10 KG
Lead Time10-15 working days normally



Features:

1.UP to 96 Fiber LC Ports in 1U
2.Qty. 4 LX-L MTP/MPO Cassettes with 12/24 LC
3.Qty. 4 LX-M Adapter Plates with 12/24 LC
4.Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
5.Available in SM, OM1, OM2, OM3 and OM4 fiber grades
6.Flat Front Panel for Optimal Cable Routing
7.Removable Top for Easier Fiber Cable Management
8.Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
9.Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
10.Factory terminated and tested
11.MPO/MTP components feature superior optical and mechanical properties

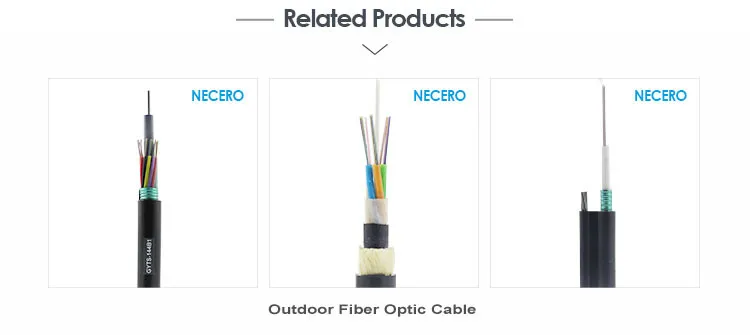

More Products



Company Information

Exhibition



FAQ



1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.



2. What is your fiber brand?

Fiber brands including : NECERO,HANXIN,MECABLE



3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

 Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable



5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS  raw material suppliers.



6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

 1 ~2 days for fiber optic patch cords with 10000 connectors.



7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



9. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.



10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
