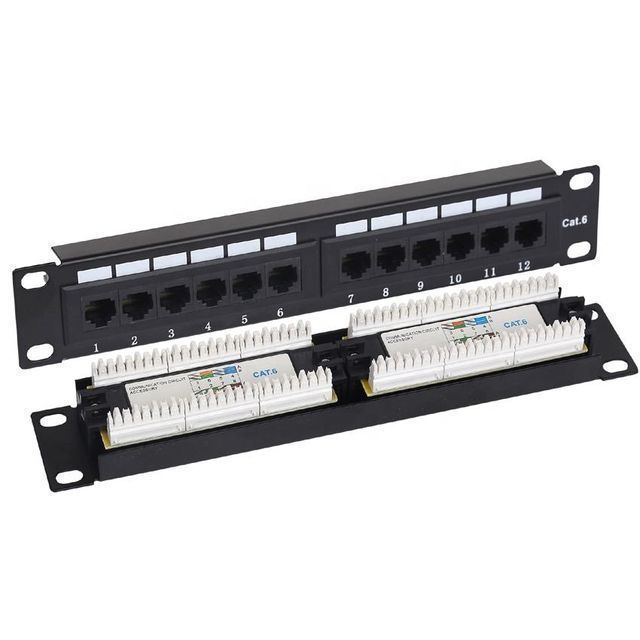

Cat5 Cat7 Cat 6A Cat6 Patch Panel Rj 45 12 Port

Product details
port:Shenzhen, Shanghai, Ningbo, etc.place of origin; place of origin:Guangdong, China
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramPackaging Details:10PCS/box
color:Blackstandard:ANSI/TIA-568B
high:1U distribution framesize:19 inches
Key words:Ningbo network 8-port distribution framebrand:Wen Rui
type:UTP FTP distribution frameapplication:networking
model:8P 12P distribution frameproduct name:cat5 cat 6 cat 6a cat 7 distribution frame rj 45 12 ports
port:8 12-port distribution framecategory:Six categories
Package preview:Supply capacity:3000 pieces per day
Product Description



product name CAT6 8 ports 12 ports UTP FTP distribution frame
type UTP FTP distribution frame
port 8-port 12-port distribution frame
color Black
category Six categories
high 1U distribution frame
application networking
size 19 inches


FTP 8 Port Patch Panel

Product description: CAT6 Type Krone IDC



Main electrical parameters:

Contact resistance: <20m ohms

Insulation resistance: >500M ohms

Dielectric strength: DC1000V (AC700V) without breakdown and flashover within one minute

Return loss: 100MHz, >8dB

Insertion loss: 100MHz, >35.9dB

Next loss: 100MHz, > 33.1dB

Attenuation: 100MHz, < 555ns

Main material: PC, phosphor bronze

Pin: 30-50"U" nickel-plated inside, gold-plated surface

Working temperature: -10℃-60℃

Storage temperature: -40℃-70℃



Main mechanical parameters: service life: more than 750 mating cycles

Number of contacts: >250 times

Allowable cable diameter: 0.57 0.01/-0.03MM
