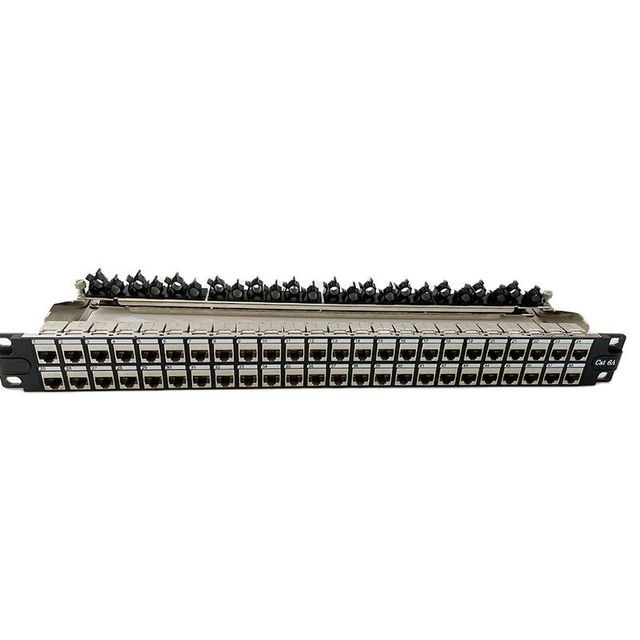

High Density Patch Panel 1U 48 STP FTP Cat6A Ports with RJ45 Keystone Jack

Product details
MOQ:100Supply capacity:20000 pieces per month
model:HPP-K4801F+HKJ-802-C6ASpecification:48 ports
product name:1U STP Cat6A 48-port patch panelapplication:Network cabling system
Material:SPCCbrand:HY connection
port:Ningbohigh:1U
Connector port:48 RJ45 jacksPackaging Details:Neutral packaging, OEM packaging can be 1 piece/box, 20 boxes/carton
payment terms:L/C, Western Union, T/Tcategory:Category 6A
color:BlackOrigin:Zhejiang, China
Package preview:

product name 1U STP 48-Port Cat6A Patch Panel with Keystone Jacks
Material SPCC
Specification 48 ports
color black+silver
used Data center, work area, management room, equipment room, etc.

1. Technical Features

• Nickel-plated brass shell, gold-plated phosphor bronze to avoid oxidation

• Front panel with port numbers and classes

• Front modules are detachable from the entire frame

• Integrated backplane provides good cable management, reduces cable strain and makes cabling system more stable and clear

• Metal structure guarantees higher mechanical strength and excellent shape of the product

• Standard 1U height 48-port panel supports T568A/B wiring sequence

• Standard 19-inch wide range application makes assembly, maintenance and upgrades quicker



2. Electrical characteristics

• Nominal voltage: 125 VAC RMS

• Rated current: 1.5AMP

• Contact resistance: 100 MΩ max.

• Insulation resistance: 1000MΩ@ 500 VDC

• Dielectric Strength: 750 VAC RMS 60Hz, 1MIN



3. Environment

• Storage: -40°C to +75°C

• Working: -10°C to +60°C

• TIA/EIA 568B Category 6 compliant



4. Machinery

• Housing material: PBT

• Panel frame: ST12, black powder coat

• IDC Material: PC, Terminal: Phosphor Bronze, Tin Plated

• RJ45 jack life: min. 750 times

• IDC life: more than 200 times

• Wire: AWG23-26

• TIA Cat6 Perm .Link test: worst pair NEXT margin ≥ 3.0dB

• Insertion structure holding force: 50N 60±5s



5. Application

• Structured cabling for transmission of data, voice, and video

• Suitable for Cat.6A
