Hydraulic pressure: | 12Mpa; | Port: | Shanghai; |
Motor power: | 4kw; | Extra Services: | Support customized; |
Delivery Detail: | Shipped in 60 working days after payment; | Control circuit: | 24V; |
Payment Terms: | L/C,T/T,Western Union; | Machine Type: | Pipe End Forming Machine; |
Weight of machine: | 500KG; | Certification: | CE&ISO&BV; |
Measurement size of machine: | 1300*800*1300mm; | Color: | Blue or support customized; |
Brand Name: | Liye; | Packaging Detail: | Wooden case for SG25NC Three working position steel pipe bend wire forming machine.It also can depend on your requirement.; |
Condition: | New; | Material / Metal Processed: | Steel, stainless steel, copper, aluminum, metal; |
Model Number: | SG25NC wire forming machine; | Supply Ability: | 100 Set/Sets per Month SG25NC Three working position steel pipe bend wire forming machi; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Power: | Hydraulic; |
Maximum working process: | 60mm; | Raw Material: | PIPE; |
Input voltage: | 380V±10% 50HZ Three-phase power (customizable); | Product name: | SG25NC Three working position steel pipe bend wire forming machine; |
Place of Origin: | Jiangsu China; | Automation: | Automatic; |
Feature: | customizable; |
wire forming machine

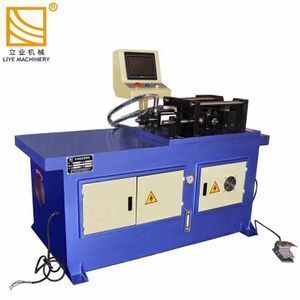

SG25NC Three working position steel pipe bend wire forming machine
Machine video:

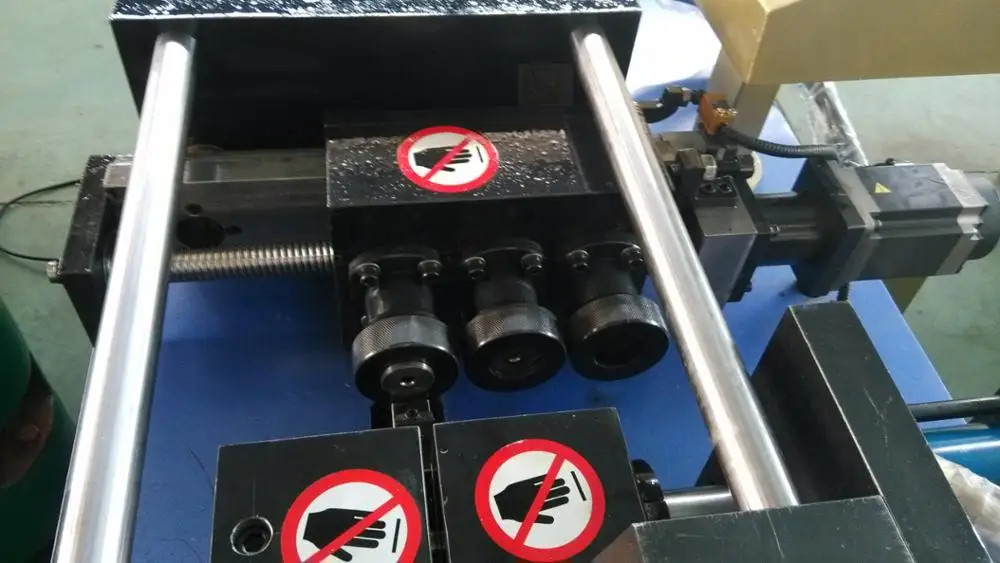

Detail:
Sample:
Specification:
SG Pipe-end shaping machine | |
Specification/model | SG25NC |
Input voltage | 380V±10% 50HZ Three-phase power (customizable) |
Control circuit | 24V |
Maximum forming pipe diameter x thickness ( Iron pipe) | Φ25*2mm |
Maximum working process | 60mm |
Motor power | 4kw |
Hydraulic pressure | 12Mpa |
Measurement size of machine | 1300*800*1300mm |
Weight of machine | 500KG |
Feature:
1. The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.
2. With three-station arrangement, pipe end forming machine can shrink the tube for three times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.
Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.
3. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)
4. Single-end clamping or double-end clamping can be carried out according to length of the tube.
5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
Standard accessories
1. One pair of mould (shrinkage mould and clamping mould)
2. One set of common tools
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
