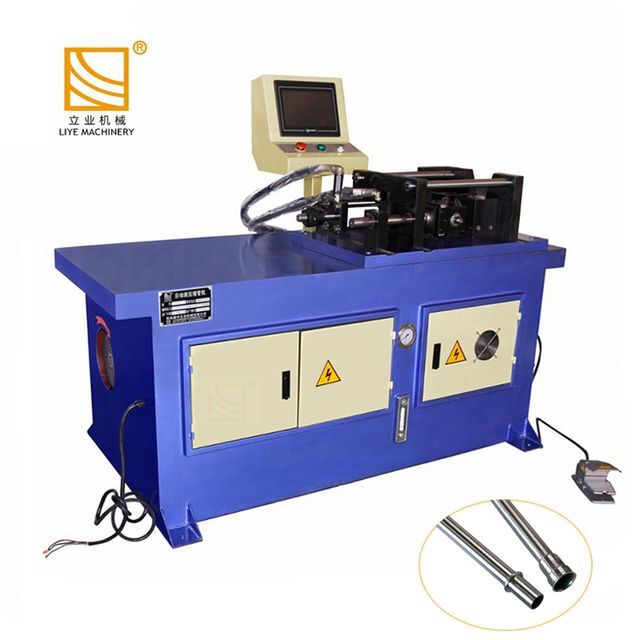

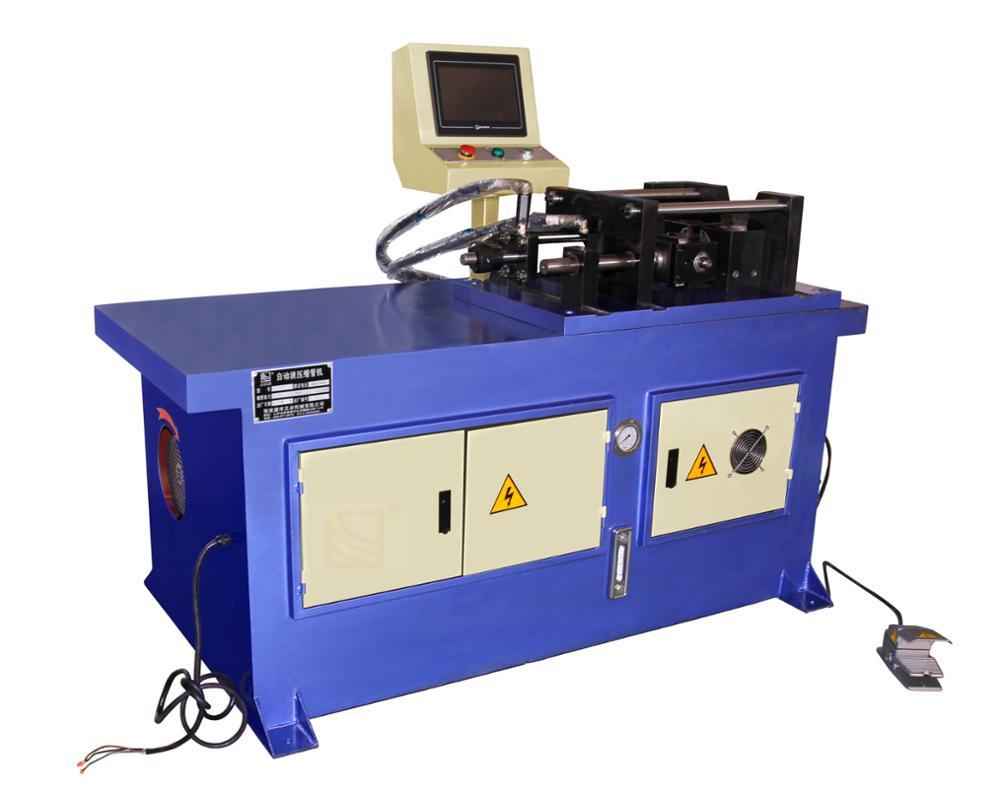

SG25NC pipe end forming machine (three stations, left and right mold clamping, servo motor mold change)

SG25NC pipe end forming machine (three stations, left and right mold clamping, servo motor mold change)

1. The product is controlled by microcomputer and driven by hydraulic pressure. It adopts Chinese character display and man-machine dialogue operation, which can be operated manually or semi-automatically. The single-point foot switch has two functions: start and emergency stop.

2. The tube end forming machine adopts a three-station arrangement, which can shrink the tube 3 times at the same time. The product uses linear guides as the carrier to ensure no wear and tear and good repeatability.

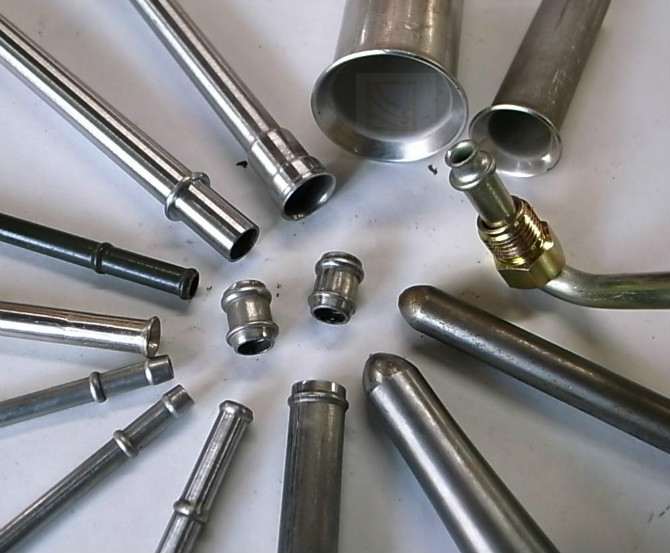

Processing shape: convex, concave, nodular, oblong, square, topological, oblique, V-shaped, cracked, flat. The shape of the mold should be subject to the processing object.

3. The distance between the two ends can be adjusted according to the length of the pipe. (Double-end forming machine only)

4. Single-end clamping or double-end clamping can be performed according to the length of the pipe.

5. The product has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor, and is an ideal equipment for the pipe processing industry.

Specification:

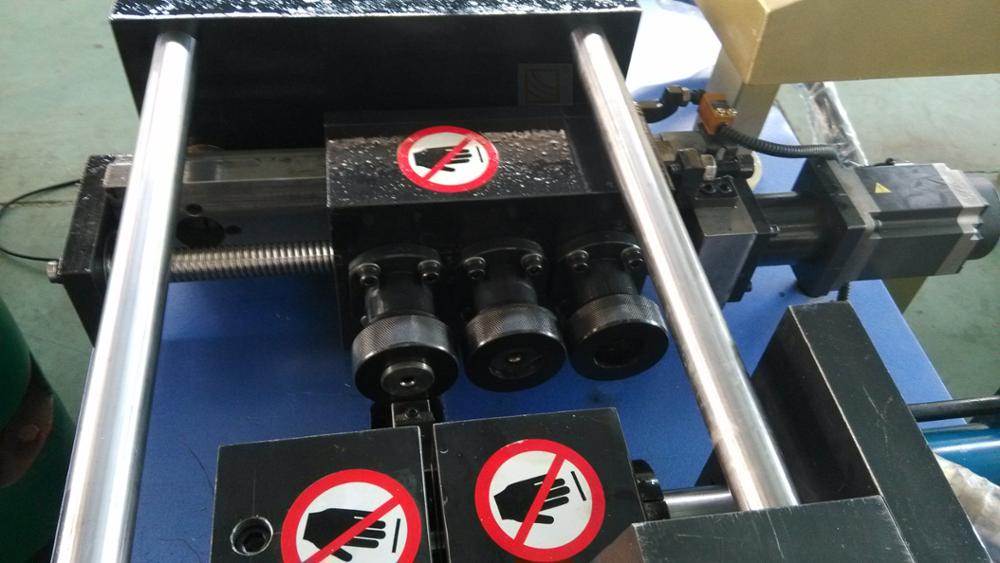

detail:

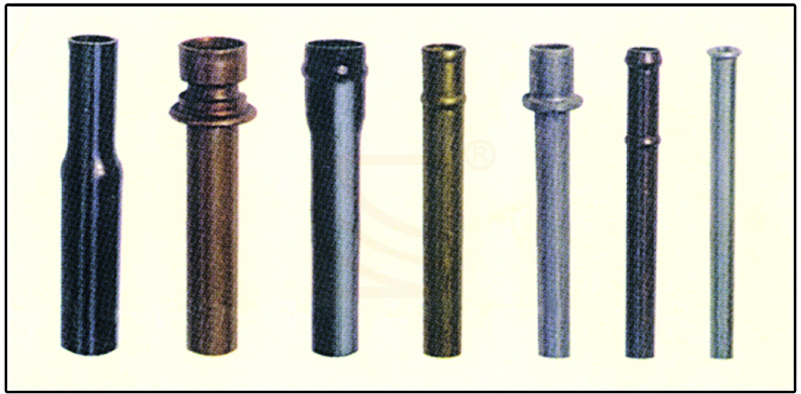

sample:

Standard accessories

1. A pair of molds (shrinkage cavity mold and clamping mold)

2. A set of common tools

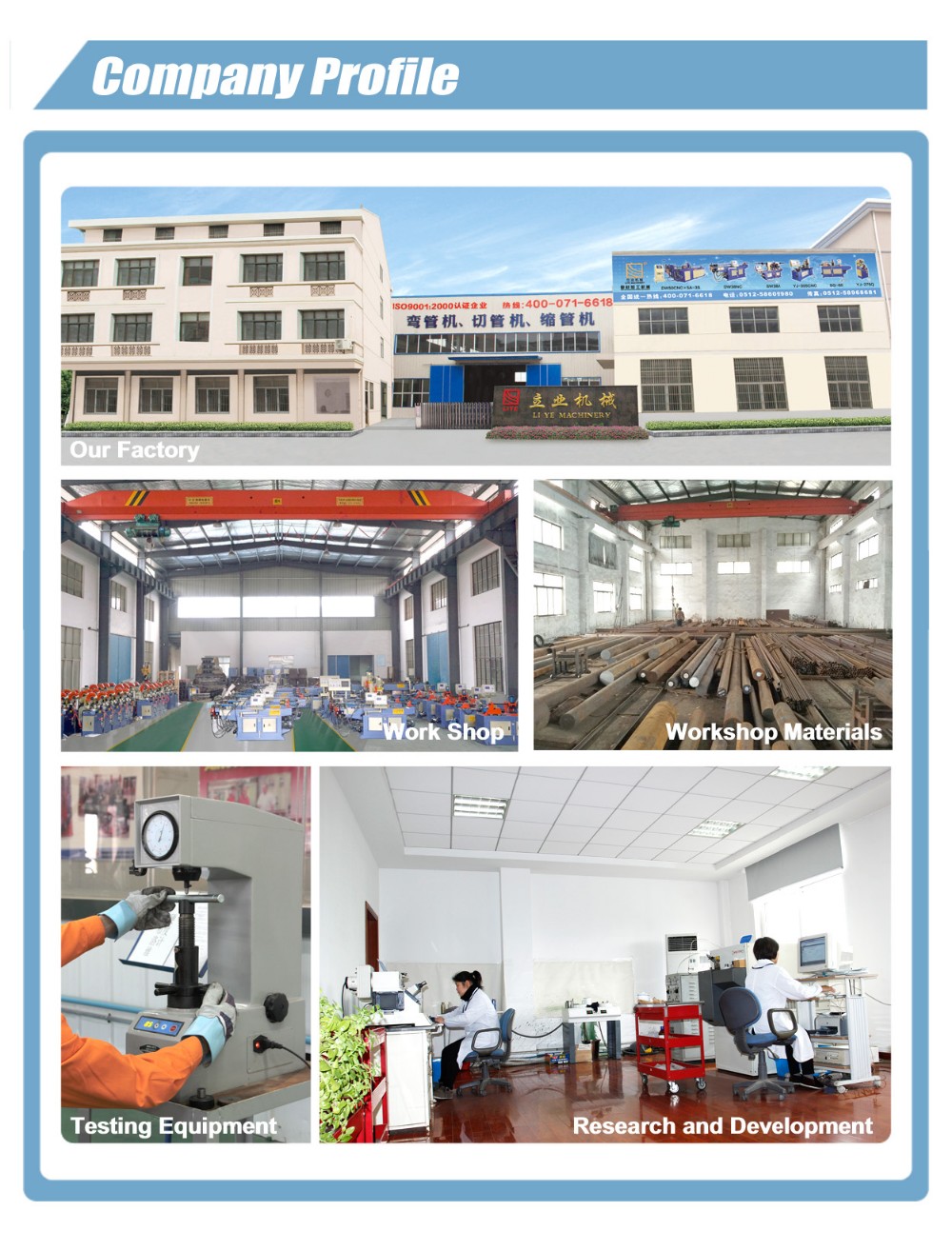

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as "the company") is an enterprise specializing in the production of metal pipe processing equipment. The company covers an area of ​​more than 10,000 square meters and has total assets of more than 20 million yuan. The main products are pipe processing line, pipe cutting machine, pipe bending machine, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine, bending machine, etc. 9 series with more than 100 models.

Our company is a physical factory. The company has a mature production, product development, product testing team. Our products are updated faster. We can design or improve new machines to meet the needs of different customers.

Q1 What are the main products of Liye Machinery?

The main products include more than 100 models in 9 series, namely pipe processing line pipe cutting machine pipe bending machine

Tube end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine

and bending machines.

Q2 Why can we trust Founder Machinery Technology?

1. All our products have passed CE, TUV, ISO quality certification

2.0ur products have been exported to more than 80 countries

3. This site is written by the founding Department of Mechanical Technology How to choose the type

Article Bender http://www zjgly.net/en/xxzn.html)

Q3 When were you established?

We have been specializing in the production of pipe processing machinery for 16 years, starting from

In 2008 to develop the international market.

Q4 Where is your factory?

Zhangjiagang City, Jiangsu Province, only two hours' drive from Shanghai Airport

Q5 Where are your strengths?

1. Integrity-based, professional technology, excellent quality

2 We have been committed to the development of new products, the equipment can be customized according to customer requirements

need

3. Strict management system and perfect after-sales service
