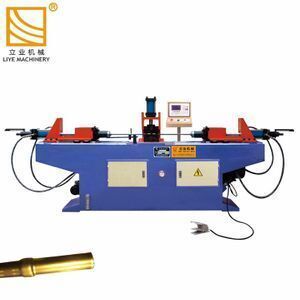

SG40NC Tube end processing end forming pipe expending machine

Supplier: Zhangjiagang Liye Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sarah Shi
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Measurement size of machine:	Customer requirement;	Key Selling Points:	Easy to Operate;
Payment Terms:	L/C,T/T,Western Union;	Place of Origin:	Jiangsu China;
Max.Shrinking Capacity (Thickness)(mm):	2;	Port:	Shanghai;
Input voltage:	380V±10% 50HZ Three-phase power (customizable);	Raw Material:	PIPE;
Material / Metal Processed:	Steel, stainless steel, copper, aluminum, metal;	Weight of machine:	Customer requirement;
Supply Ability:	100 Set/Sets per Month SG40NC Tube end processing end forming pipe expending machine;	Control circuit:	24V;
Power (kW):	4;	Hydraulic pressure:	12Mpa;
Packaging Detail:	wooden case for SG40NC Tube end processing end forming pipe expending machine.It depends on requirement.;	Product Name:	SG40NC Tube end processing end forming pipe expending machine;
Warranty:	1 YEAR;	Max.Shrinking Capacity (Diameter)(mm):	40;
Condition:	New;	Brand Name:	LYM-Liye Machinery;
Weight (KG):	1100;	Oil pump:	23L;
Showroom Location:	None;	Machine Type:	Pipe End Forming Machine;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Extra Services:	Support customized;
Automation:	Automatic;	Motor power:	4kw;
After-sales Service Provided:	Free spare parts,Online support,Field installation, commissioning and training,Video technical support,Engineers available to service machinery overseas;	Certification:	CE&ISO&BV;
Maximum working process:	110mm (customizable);	Applicable Industries:	metal pipe machining enterprise;
Local Service Location:	Russia;

pipe expending machine

Product Description

SG40NC Tube end processing end forming pipe expending machine

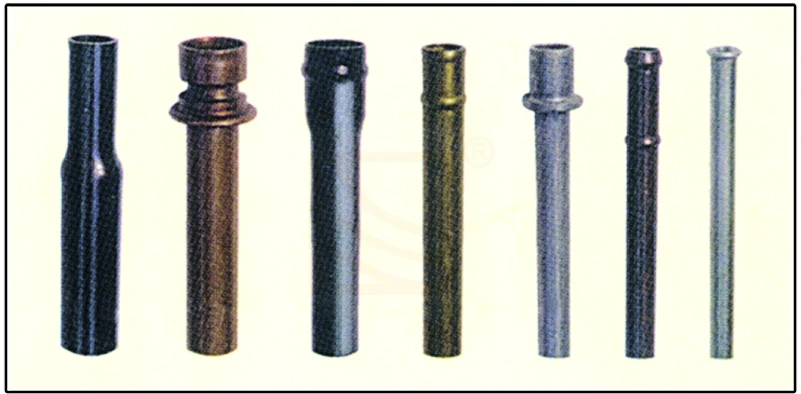

Sample:

Specification:

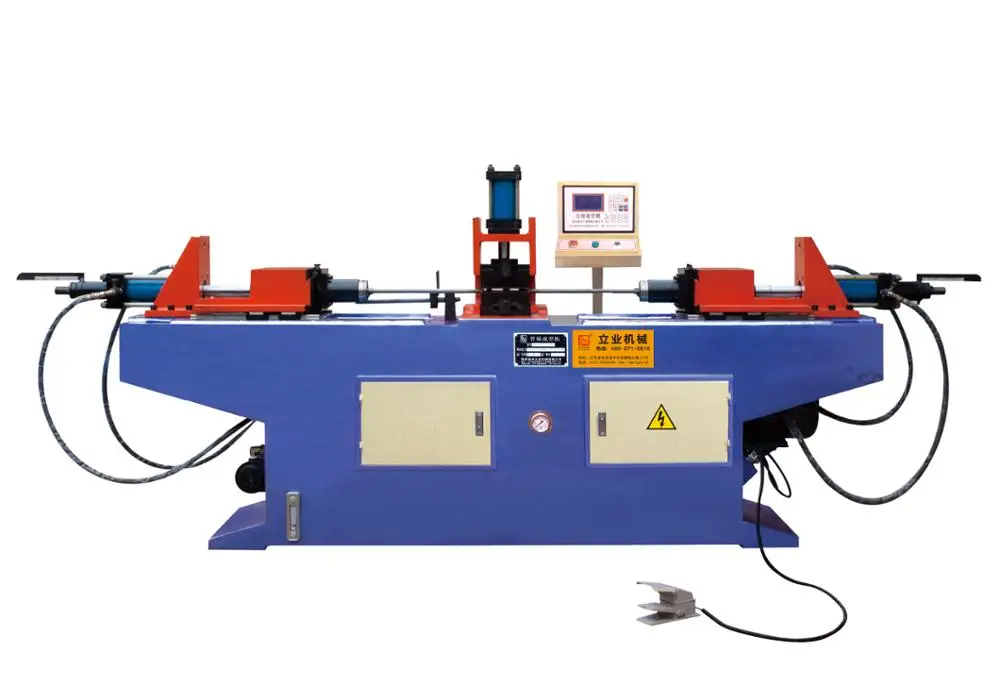

SG Pipe end forming machine
Specification/model	SG40NC (Dual head type )
Input voltage	380V±10% 50HZ Three-phase power (customizable)
Control circuit	24V
Maximum forming pipe diameter x thickness (Iron pipe )	Φ40*2mm
Maximum working process	110mm (customizable)
Machine head spacing	Customer requirement
Oil pump	23L
Motor power	4kw
Hydraulic pressure	12Mpa
Measurement size of machine	Customer requirement
Weight of machine	Customer requirement

Feature:

1. The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

2. With double-station arrangement, pipe end forming machine can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.

Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

3. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

4. Single-end clamping or double-end clamping can be carried out according to length of the tube.

5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Standard accessories

1. One pair of mould (shrinkage mould and clamping mould)

2. One set of common tools
