KC-CH double wheel diamond pattern Knurling tool on lathe

Supplier: Taizhou Ke Chi Machinery Co., Ltd.
Region: Zhejiang, China
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	KC-CH double wheel diamond pattern Knurling tool on lathe;	OEM:	Accept;
MOQ:	1;	Place of Origin:	Zhejiang China (Mainland);
Application:	Knurling;	Packing:	Customers' Request;
Certificate:	ISO9001;	Usage:	Lathe,CNC;
Supply Ability:	500 Piece/Pieces per Month Knurling tool;	Size:	Custom-made;
Packaging Detail:	Carton;	Brand Name:	KECHI;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	Ningbo or Shanghai;
Material:	HSS;

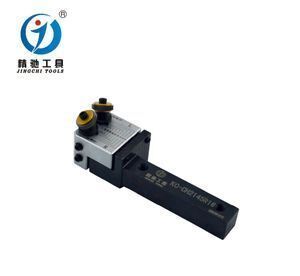

KC-CH double wheel diamond pattern Knurling tool on lathe

Product Description

KC-CH Cut knurling tool

Knurling Features: Turning outside diameter knurling tool can adjust the cutting angle, can protect the accuracy of machine tools, low rigidity for small machine tools. Suitable machine type:CNC lathe, automatic lathe. Multi spindle lathe, Swiss type automatic lathe, turn milling machine tool.

Suitable machine type: CNC lathe, automatic lathe, multi spindle lathe, Swiss automatic lathe, turning milling machine

Double wheels cut knurling tool

You can adjust the cutting angle of the tool, protect the accuracy of the machine tool, and lower the rigidity of the small lathe.

Product data

Model	Direction	Process Range	Wheel Size	Tool Shank Size		Spare Part
				C	D
CH2145R14	R	φ3-50	φ14.5×3×5	14	16	EAT14.53
CH2145L14	L
CH2145R16	R			16
CH2145L16	L					EAT21.55
CH2215R20	R+L	φ5-250	φ21.5×5×8	20	25
CH2215R25				25

Knurling wheel

Product data

Cut knurling tools usage

1. Clamp the tool into the tool seat, adjust the center height of the tool to ensure the center position of the workpiece.

2.Press the Knurling wheel close to the outer diameter of the workpiece, adjust the two wheels, the whole width of the axis, fully attached to the workpiece.

3. When knurling starts, fast to the distance between the teeth of the 1/2 and the width of the wheel is about 1/3.

4. When the shape is finished, the Z axial feed is started.

5. If the tooth type is wrong, it can be adjusted by adjusting the tool seat axial direction

6. Use larger cutting fluid to remove the scrap iron.

Company Information

TaiZhou KeChi machinery Co.,Ltd is a company specialising in the production of mirror roller burnishing tools, rotary broach tools, knurling tools, combined skive-burnishing tool, diamond burnishing tool.And setting research and development production,sales in one integrated manufacturers.The company has its own R & D team and after-sales service team,.It focus on the mirror roller burnishing, rotary broach, knurling and other technical areas. During the past ten years, it has provided perfect solutions for thousands of customers in auto parts, aerospace, hydraulic, military, cylinder, ship, construction machinery, medical, agricultural machinery, air conditioning,motor and so on.

Our certificate

Workshop

Test equipment

Exhibition

Our Services

1. Feedback within 24 hours

2. Good english communication;

3. Professional suggestion on product;

4. Good training export sales person;

5. Could issue the C/O(certificate of origin)to customer to reduce the tax;

6. Could accept payment terms of T/T, L/C, western union, paypal and etc.

Packaging & Shipping

FAQ

1.You are traders or manufacturers?

A: We are a factory. you are most welcomed to visit us
2.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer requirements.
3.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
4.Q: What is your MOQ ?
A: 1 set per style.
5.Q: What is the lead time?
A: It depends on your order quantity.
6.Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment or L/C at sight.
