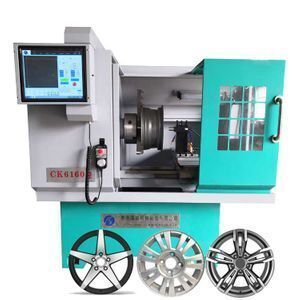

Alloy Wheel Repair CNC Lathe machine CK6160Q
-
Supplier: Taian Haishu Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms mei sun -
Price: $7000.00 /set -
Min. Order: 1 set
Product details
| CNC Control System: | TOUCH SCREEN; | Port: | QINGDAO; |
| Name: | Alloy Wheel Repair CNC Lathe machine CK6160Q; | Supply Ability: | 100 Set/Sets per Month Alloy Wheel Repair CNC Lathe machine CK6160Q; |
| Max. Spindle Speed (r.p.m): | 2500; | Spindle speed: | 150-2500rpm; |
| Year: | 2019; | Max. Swing Diameter (mm): | 600; |
| Weight (KG): | 1500; | Warranty: | 1 year; |
| CNC or Not: | CNC; | Place of Origin: | Shandong China; |
| Condition: | New; | Positioning Accuracy (mm): | 0.08; |
| Warranty: | 12 Months; | Automatic Grade: | Automatic; |
| Power(W): | 3kw; | Voltage: | 380v; |
| Packaging Detail: | Alloy Wheel Repair CNC Lathe machine CK6160Q with standard export packing; | Power (kW): | 3; |
| Brand Name: | HAISHU; | Certification: | ISO9001:2008,CE; |
| Model: | CK6160Q; | Model Number: | CK6160Q; |
| Key Selling Points: | Automatic; | Repeatability (X/Y/Z) (mm): | 0.06; |
| Product type: | Alloy Wheel Refurbishment; | After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; |
| Toolpost Brand: | Hongda; | Control system: | SYNTEC or touch screen; |
| Spindle bore: | 50mm; | Machine Type: | Lathe Machine CNC; |
| Type: | Horizontal; | Dimension(L*W*H): | 2025X1510X1910(mm); |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Precision: | High Precision Machine; |
| Max. Length of Workpiece (mm): | 500; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,AUTO SHOP; |

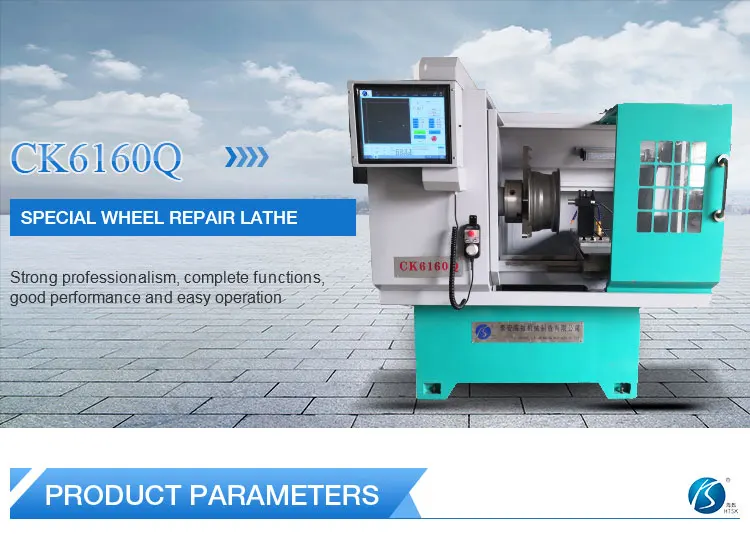

Alloy Wheel Repair CNC Lathe machine CK6160Q
Project name | Unit | Technical parameters |
Max. turning diameter | mm | 720 |
Max. wheel machining diameter | mm | 24” |
Max. workpiece length | mm | 500 |
Probe measuring direction |
| X,Z |
Probe measure way |
| Laser probe or touch probe |
Machning accuracy |
| IT6~IT7 |
Surface roughness | um | Ra0.8~1.6 |
Main transmission form |
| Independent spindle; frequency conversion step-less |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 3 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Turret form |
| 2-position fixed tool holder |
Section of turning tool | mm | 25×25 |
The size of the machine (L×W×H) | mm | 2000×1500×1800 |
Net weight of the machine | 1500Kg | |
