rubber and nylon replacement belt conveyor parts UHMWPE roller

Supplier: Henan North China Industrial Plastic Co., Ltd.
Region: Henan, China
Contact: Mr David Wang
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Standard:	DIN, CEMA, ISO, GB, SGS, JIS standard;	Shaft material:	Q235 cold-drawing steel;
Roller diameter:	50, 65, 76, 102, 114, 127, 152, 165, 178mm, 4 inch, 5 inch, 6 inch;	Service:	OEM, fast delivery, free sample, customized design;
Shaft diameter:	20, 25, 30, 35, 40mm;	Length:	150-3500mm, 24, 36, 42, 54, 60 inch, 500, 650, 800, 1000, 1200, 1400mm;
Brand Name:	FJS;	Name:	belt conveyor roller;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Application:	cement, chemical, coal mining, quarry, fertilizer plant, iron ore;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba, paypal, etc.;	Port:	Port of Tianjin, Qingdao or other ports;
Packaging Detail:	Standard wooden crate or as you requested.;	Supply Ability:	1000000 Piece/Pieces per Year;
Feature:	abrasion, corrosion, chemical, impact resistant, waterproof, dustproof;	Shell material:	UHMWPE, plastic, steel, stainless steel, HDPE, rubber, pvc;
Place of Origin:	China;

Product Description

China Top UHMWPE Conveyor Roller Manufacturer Since 1993

FJS rollers' shell are UHMWPE (ultra-high molecular weight polyethylene), which is an ideal choice over rubber, PVC, nylon, HDPE, steel and stainless steel (higer abrasion, impact, corrosion resistance). And the price is very competitive.

Details at http://www.alibaba.com/product-detail/Best-price-chemcial-waste-potable-water_60497783982.html

Features and Benefits

— Super long service life (design life: 80,000 hours): China invention patent and utility model patent Vacuum Annular Sealing against the contaminants, e.g. water, dust, and chemicals, and the grease is lubricated for life.

— Lower run-out (≤0.3mm) and axial displacement (≤0.4mm). High load capacity (>15kN).

— Conveyor belt friendly: belt life is extended 1-2 times. Do not absorb water, stick loads, or need maintenance.

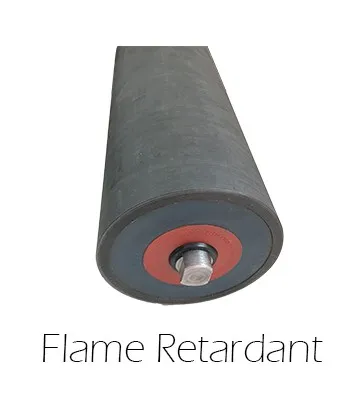

— Extremely resistant to abrasion, impact, most corrosive chemicals, microorganisms, static, and flame. About 7 times more abrasion resistant than steel. Operating temperatures: -40℃to 80℃.

— Cost and noise reducing. About 50% lighter than steel roller. Ultra-low coefficient of friction (≤0.1mm³) and rotation resistance (≤2.0N). Excellent self-lubricating properties.

— OEM service. Highly customizable. 23-year-old factory, providing with professional service and help. Free sample.

— ISO 9001: 2008 and MA (China Mining Products Safety Approval) certificated. High-tech Product awarded by the People's Government of Henan Province. Withstanding DIN, SGS, CEMA, JIS or other tests.

rubber and nylon replacement belt conveyor parts UHMWPE roller

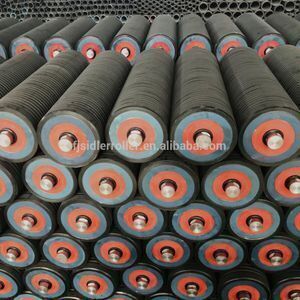

FJS Roller UHMWPE

Application

FJS conveyor rollers and idlers (UHMW-PE), widely used in industries such as coal mining, iron and steel, cement, quarry, chemical, coking, smelting, power, food, oil field and marine engineering, holds a good home market share and were also exported to Indonesia, Russia, America, Germany, South Korea, and France.

Our customer:
China Resources Cement Holdings Limited (Fengkai) is using our conveyor belt rollers (UHMWPE) for the 48Km long belt conveyor line, which is the longest one in Asia.

Specification

Specifications
Shell	UHMWPE (ultra-high molecular weight polyethylene) Parameters of the UHMWPE shell at: http://www.alibaba.com/product-detail/Best-price-chemcial-waste-potable-water_60497783982.html
Shaft	Q235 cold-drawing steel; yield strength 235MPa
Diameter (mm)	Φ50, 63.5, 65, 76, 89, 102, 108, 114, 127, 133, 140, 152, 159, 165, 177.8, 190.7, 194, 219 or cutomized
Shell Thickness (mm)	8-15
Length (mm)	150-3500
Shaft Diameter (mm)	20, 25, 30, 35, 40
Bearin g	Deep Groove Ball Bea ring 2RS LYC SKF, etc or customized
Grease	Quality EP2 lithium grease; Lubricated for life
Sealing	Vacuum Annular Sealing (acquired China invention patent and utility model patent) against contaminants, e.g. water, dust, and chemicals
Service	MOQ 1 PCS. Free sample. OEM. Special requirements. Customized service.

Parameters
Test Project	Unit	Index
Roller run-out	mm	≤0.3
Axial displacement	mm	≤0.4
Rotation resistance	N	≤2.0
Axial load	kN	＞15
Water spray test	g	0
Immersion into water for 24 hours	g	0
Coefficient of friction	mm³	≤0.1
Operating Temperatures	°C /℉	-40℃/-40℉—80℃/176℉

Company Profile

Henan North China Industrial Plastic Co., Ltd

Located in Anyang, Henan province, Henan North China Industrial Plastic Co., Ltd. (originally registered name: North China Industry Plastics Equipment Co., Ltd.) is the first and top UHMWPE conveyor rollers and idlers manufacturer in China.

Since being established in 1993, we're been focusing on R&D, production and distribution of UHMWPE rollers, UHMWPE pipes, sheets, rods, special shaped parts and other components.

With advanced technologies and equipment, such as the invented run-out lathe, automatic injection molding machines, automatic pipe extrusion machines and etc., we're able to manufacture 1 million conveyor belt rollers per year and 200,000 meters of pipe weekly.

12 China Patents Acquired ——FJS belt conveyor idlers rollers

With 23 years of accumulation of experience, our rollers have acquired 12 invention patents, utility model patents and design patents in total, and are appraised as High-tech Product by people's government of Henan province.

We're also an "Integrity and Law-abiding Company" awarded by Henan government and "Contract and Credit Compliance Company" awarded by Anyang city government.

Packing & Delivery

Standard wooden crate or customized. Supply capacity 1,000,000 pieces per year. Fast delivery guaranteed. MOQ is 1 PCS and free sample.
