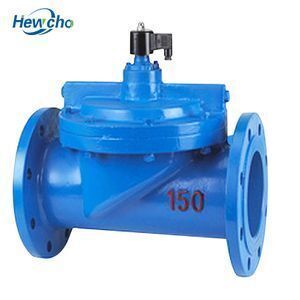

DF 2 way 2 Operation Flange Liquid Cast Iron 6 Inch Water Solenoid Valve DN150

Supplier: Ningbo Hewcho Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jason Chen
Price: $300.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Supply Ability:	3000 Piece/Pieces per Month;	Product name:	6 inch water solenoid valve;
Type:	Normally Closed Solenoid Valve;	Pressure:	1.2Mpa;
Temperature of Media:	Normal Temperature;	Temperature:	-5-80℃;
Application:	water control;	Viscosity:	Less than 20CST;
Place of Origin:	China;	Starting Pressure:	0.3 Bar;
Sealing:	NBR, EPDM, VITON;	Coil Protection:	IP 65;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Voltage:	AC220V AC110V DC12V DC24V;
Packaging Detail:	6 inch water solenoid valve Carton Box and Pallets;	Port Size:	6 Inch;
Size:	6 Inch;	Pipe Size:	6";
Media:	Water,Gas,Air,Liquid;	Mode of Action:	Pilot Operated;
Material:	Cast Iron;	Port:	Ningbo;
Structure:	Diaphragm;	Brand Name:	Hewcho;
Power:	Solenoid;	Model Number:	DF-150F;

Product Information

DF 2 way 2 Operation Flange Liquid Cast Iron 6 Inch Water Solenoid Valve

Product Description

Cast Iron 6 Inch Water Solenoid Valve

DF-150F	Pressure:0.03-1.2Mpa
Material:Cart Iron	Temperature:-5-80℃
Coil Material:Copper	Voltage:AC220V, AC110V(50Hz/60Hz)
Medium:Water, Gas, Air, Fluid	DC12V,DC24V
Type:Normally Closed	Sealing:NBR,EPDM, Viton

Cast Iron 6 Inch Water Solenoid Valve

Solenoid Valve Size Chart(mm)
Valve NO.	DN	CV	A	B	C	N-φF	Weight(kg)
DF-40F	40	30	155	110	205	4-φ18	6.5
DF-50F	50	48	200	125	200	4-φ18	9.5
DF-65F	65	52	259	145	277	4-φ18	9.5
DF-80F	80	82	278	160	289	8-φ18	18.1
DF-100F	100	125	350	180	316	8-φ18	25.4
DF-125F	125	222	400	210	380	8-φ18	45.7
DF-150F	150	292	450	240	405	8-φ22	55.2
DF-200F	200	513	560	340	516	12-φ22	112

Description

Liquid Cast Iron 6 Inch Water Solenoid Valve is the use of electromagnetic force to achieve the valve on and off the two - way automatic valve.It is the basic element to realize the automatic control of all kinds of gas and liquid pipelines with compressed air, clean water and low viscosity, no suspended substance and no corrosive medium.It can be widely used in automatic control system of machinery, metallurgy, electric power, chemical industry, textile, petroleum, light industry, transportation, national defense, scientific research and other departments.
Liquid Cast Iron 6 Inch Water Solenoid Valve is adopted pilot automatic control structure, compact structure, small volume, reliable action, excellent sealing performance, easy to use and maintenance.
After the coil energized, namely the formation of magnetic field, under the action of magnetic field, sucking up the iron core, open the pilot valve mouth, due to import the orifice is smaller than the guide valve mouth, at this point, the upper rubber diaphragm pressure is reduced, in under the action of working medium, the main valve opens, forming pathway, power outages, moving iron core reset by spring force and so on, close the pilot valve and the upper diaphragm pressure, the differential pressure function, immediately shut off the main valve.
