Brand Name: | Hewcho; | Port Size: | 2"; |
Application: | water control; | Temperature of Media: | Normal Temperature; |
Sealing: | NBR, EPDM, VITON; | Structure: | Diaphragm; |
Pipe Size: | 2"; | Model Number: | 2W500-50; |
Viscosity: | Less than 20CST; | Selling Units: | Single item; |
Type: | Normally Closed Solenoid Valve; | Media: | Water,Gas,Air,Liquid; |
Package Type: | Water solenoid valve Carton Box and Pallets; | Mode of Action: | Direct Acting; |
Coil Protection: | IP 65; | Package Preview: | https://sc01.alicdn.com/kf/HTB1XBC6UQvoK1RjSZFDq6xY3pXaM.jpg_640x640.jpg; |
Temperature: | -5-80℃; | Single package size: | 23X18X14 cm; |
Starting Pressure: | 0 Bar; | Single gross weight: | 3 KG; |
Power: | Solenoid; | Product name: | water Solenoid Valve; |
Place of Origin: | China; | Voltage: | AC220V AC110V DC12V DC24V; |

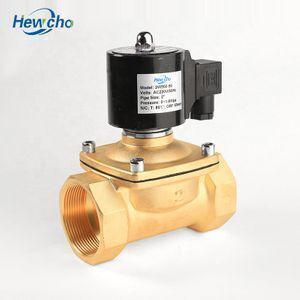

AC 220V 2 Inch Water Solenoid Valve
2W500-50 | Pressure:0-1.0Mpa |
Material:Brass | Temperature:-5-80℃ |
Coil Material:Copper | Voltage:AC220V, AC110V(50Hz/60Hz) |
Medium:Water, Gas, Air, Fluid | DC12V,DC24V |
Type:Normally Closed | Sealing:NBR,EPDM, Viton |
AC 220V 2 Inch Water Solenoid Valve
Solenoid Valve Size Chart(mm) | |||||||
Valve NO. | Orifice | CV | A | B | C | Thread | Weight(kg) |
2W160-10 | 10 | 4.8 | 63 | 56 | 106 | 3/8" | 0.63 |
2W160-15 | 15 | 4.8 | 63 | 56 | 106 | 1/2" | 0.62 |
2W200-20 | 20 | 7.6 | 66 | 56 | 110 | 3/4" | 0.66 |
2W250-25 | 25 | 12 | 90 | 72 | 118 | 1" | 0.97 |
2W350-35 | 35 | 24 | 109 | 88 | 155 | 1 1/4" | 1.97 |
2W400-40 | 40 | 29 | 115 | 95 | 162 | 1 1/2" | 2.12 |
2W500-50 | 50 | 48 | 155 | 111 | 195 | 2" | 2.94 |
Description
AC 220V 2 Inch Water Solenoid Valve. It's two way two position direct acting diaphragm electric solenoid valve with available voltage AC220V, AV110V, DC24V and DC12V. It can be used for liquid , air, water, gas in a variety of different applications. This valve uses NBR or Viton seal material that is compatible with many liquid such as water up to 80°C. The valve is normally closed, closed when de-energized and open when energized. It is capable of operating at zero differential pressure. This compact solenoid features with female BSP thread or NPT thread.
AC 220V 2 Inch Water Solenoid Valve has four coil with voltage AC220V, AV110V, DC24V and DC12V. The coil head is fitted with a DIN connection that can easily be connected with your own choice of terminals. This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.
Non-applicable fluid
When the temperature is high, it is liquid, and solid when cooled; Corrsive Fluid; Fluid above 20 cst concentration.
Attention
The impurities in the line must be cleaned first before installation. In order to prolong service life, Y filter should be installed on the front end of solenoid valve.
