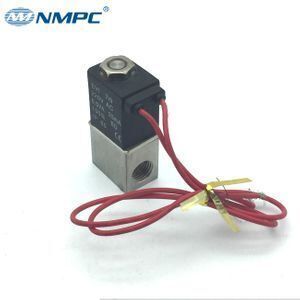

2/2 Way 2V Series DC12V NPT Direct Acting Normal Closed Air Water Solenoid Valve Mini Pneumatic Control Valve

Product details
material:Aluminum;Model Number:2 way valve;
Temperature of Media:Medium Temperature;Application:car conversion system;
coil voltage:DC12V/DC24V/AC110V/AC220V;Media:AIR;
Way and Number:2 way 2 position;Standard or Nonstandard:Standard;
Port:Ningbo or shanghai;Pressure:0~10 bar;
Power:Solenoid;Place of Origin:Zhejiang China;
Packaging Detail:1. Packed by bubble bag, then put in inner box, then loaded into carton, finally packed into pallet if quantity is large for 2 way valve 2. OEM production ,according to client's request;Brand Name:NMPC;
Supply Ability:10000 Piece/Pieces per Week 2 way valve;working medium:air, water ,gas;
port size:1/8" NPT, BSP;Payment Terms:L/C,T/T,Western Union,Paypal;
Type:SOLENOID VALVES;Structure:Control;
Port Size:1/8"NPT;Certification:ISO, CE;
power comsumption:AC:5.5VA ,6.5V DC:4.8W, 6.5W;original:zhejiang ningbo China;

2/2 Way 2V Series DC12V NPT  Direct Acting Normal Closed Air Water Solenoid Valve Mini Pneumatic Control Valve




Product Description





  1.Classical design,durable ai control design

  2.Engery saving and environmental protection with big low rate,safety and precision

  3.Can work at the low pressure,smartness for on and off,good seal performance

  4.Single action and double action types for your selection

  5.Widely used in the food,machin,industry,abstersion,lanification,printing and other area



We Mainly do solenoid valve ,pneumatic valve, air treatment units, air Cylinder, quick connection fittins and PU tube .4V. 3V.2V.2p .solenoid valve ,and 4A.3A Pneumatic valve sell so hot in Asia, Europe,and Middle East.

Our products passed ISO9001:2008 and CE Quality Certification. Brand name is NMPC.

We have so many distributors and agent in mainland of China.

So popular in pneumatic and Hydraulic market. Our accessories  taked  from the same  supplier as Airtac . O seal ring is Taiwan Xiehe,valve made by numerically controlled production center (CNC)











Model

2V025-06

Working Medium

Air,Water,Oil

Motion Pattern

Direct Drive Type

Type

Normal Close Type

Aperture of Flow Rate

2.5

CV Value

0.23

Joint Pipe Bore

1/8”

Operation Fluid Viscosity

20 CST Below

Working-pressure

0~1.0

Max.Pressure Resistance

1.5

Operating Temperature

-10~60°C

Voltage Range

-10%~+10%

Protect Class

IP65

Power Consumpton

AC:7VA   DC:6W

Insulation

F Class

Material of Body

aluminum alloy

Material of Oil Seal

NBR or VITON

Shortest Excitation Time

0.05













Packaging & Shipping





Company Information

NINGBO FENGHUA NINGMAO PNEUMATIC COMPONENTS FACTORY



Professional production equipment

The factory  has  five  production line,more than 100 workers .  Cutting workshop make the brass raw material into  appropriate length.after cutting some material send to Instrument lathe workshop and CNC workshop ,some of material  send to punch workshop processed into the shape which we  need. our CNC work shop  Produces the product accuracy can be controlled in the error of 0.01 mm . And punch workshop can make goods according to your needed .    The Assembly shop with automated equipment , Reduce the error of the product.  PU tube workshop using European automation equipment,and clean management.

Rich processing experience

Our  engineers team with rich experience in production line, an average of more than 10 years of experience in practice

Each year more than a month of study and communication It is our claim to the engineer.we have the modern warehouse management to ensure that the appropriate inventory to guarantee the delivery time, through the information management to reduce the warehouse cost, make products with competitive price.

Profession design team

We have our own product design team, and packaging design team.Help us to make the products  fit your market , and help you  win the market. we can  make your logo on  products  and  make the packaging with your logo or your design .

Rigid quality control

Every products we produce  with strict inspection more than two times before packaging. We have a full set of inspection equipment,to do Pressure test and temperature test,some of products will do the durability test.To ensure every products with good quality .
