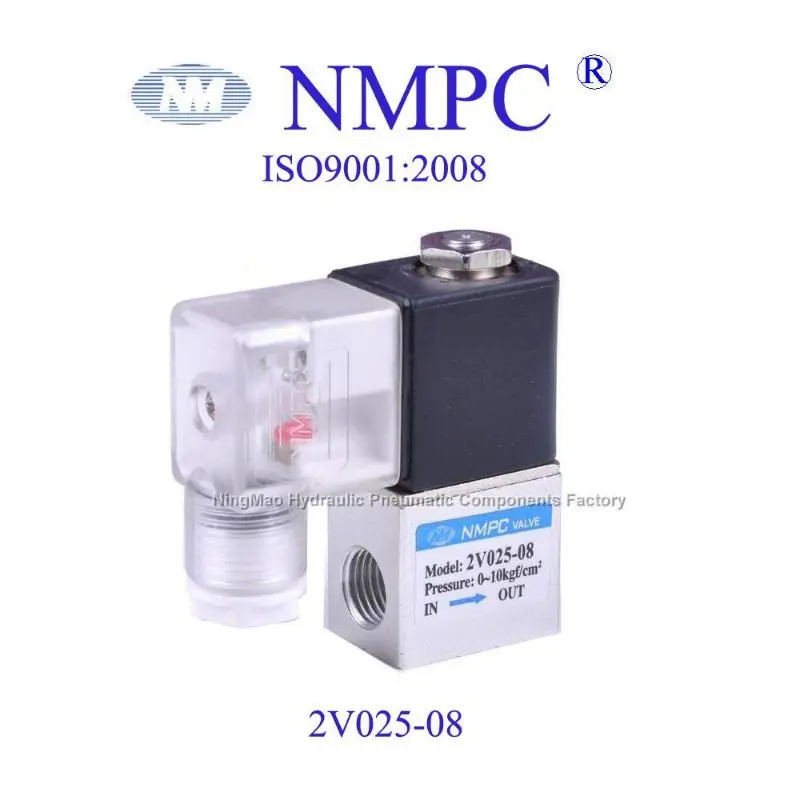

Low Cost 2V025-06 2V025-08 1/8 1/4 inch DC 12V 2 Way Normally Closed Electric Solenoid Air Valve for Air Water Oil

Product details
aperture of flow rate:1.0mm or 2.5mm;actiong mode:direct drive;
pressure:middle;Power:Solenoid;
Payment Terms:L/C,T/T,Western Union,Paypal;Port:Ningbo/shanghai;
Quality System and Ceritification:Passed ISO9001:2008 and CE approved;Place of Origin:Zhejiang China;
Supply Ability:1000 Piece/Pieces per Week mini solenoid 12v;lubrication:NBR/ VITON;
place of original:zhejing china(mainland);Brand Name:NMPC;
port size:BSPP ,PT or NPT1/8";working medium:air ,water,oil;
Standard or Nonstandard:Standard;material of body:Aluminum alloy;
Type:SOLENOID VALVES;Port Size:BSPP ,NPT or PT1/8";
Structure:Control;Application:automation field;
Media:Water;Temperature of Media:Medium Temperature;
Packaging Detail:1. Marked NMPC brand name 2. OEM production, any logo. 3. blank;Model Number:2v025-06 mini solenoid 12v;

Low Cost 2V025-06 2V025-08 1/8 1/4 inch DC 12V 2 Way Normally Closed Electric Solenoid Air Valve for Air Water Oil

Product Description





  1.Classical design,durable ai control design

  2.Engery saving and environmental protection with big low rate,safety and precision

  3.Can work at the low pressure,smartness for on and off,good seal performance

  4.Single action and double action types for your selection

  5.Widely used in the food,machin,industry,abstersion,lanification,printing and other area



We Mainly do solenoid valve ,pneumatic valve, air treatment units, air Cylinder, quick connection fittins and PU tube .4V. 3V.2V.2p .solenoid valve ,and 4A.3A Pneumatic valve sell so hot in Asia, Europe,and Middle East.

Our products passed ISO9001:2008 and CE Quality Certification. Brand name is NMPC.

We have so many distributors and agent in mainland of China.

So popular in pneumatic and Hydraulic market. Our accessories  taked  from the same  supplier as Airtac . O seal ring is Taiwan Xiehe,valve made by numerically controlled production center (CNC)





Specification:

Model2V025-062V025-08
Working MediumAir,Water, Oil, Gas
Acting TypeDirect Action
TypeNormally Closed
Effective Area1.2mm²
CV value0.23
Port Size1/8''1/4''
Operation fluid viscosity Below 20 CST
Working Pressure0~8.0kgf/cm²
Max. Pressure Resistance10kgf/cm²
Operating Temperature-5~60℃
Standard voltage DC12V,DC24V    AC110V,AC220V  Optional
Voltage range Plus or minus 10%
Material of valve bodyAluminum Alloy
Material of sealNBR
