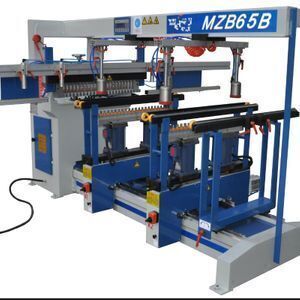

Woodworking Double Rows Multi Boring Machine with 42pcs drilling shafts

Supplier: Qingdao Zhongding Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Bruce Lee
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Certification:	ISO;
Total Motor Power:	6.0 kw;	Brand Name:	ZD;
Depth of drilled holes:	0-60mm;	Power(W):	6kw;
Highlight:	LG brand of PLC;	Local Service Location:	None;
Characteristic:	Horizontal & Vertical;	Dimension(LWH):	385026001700(mm);
Voltage:	As your request;	Rotation of spindle:	2840r/min;
Showroom Location:	None;	After-sales Service Provided:	Free spare parts;
Line Number:	Double;	CNC or Not:	Normal;

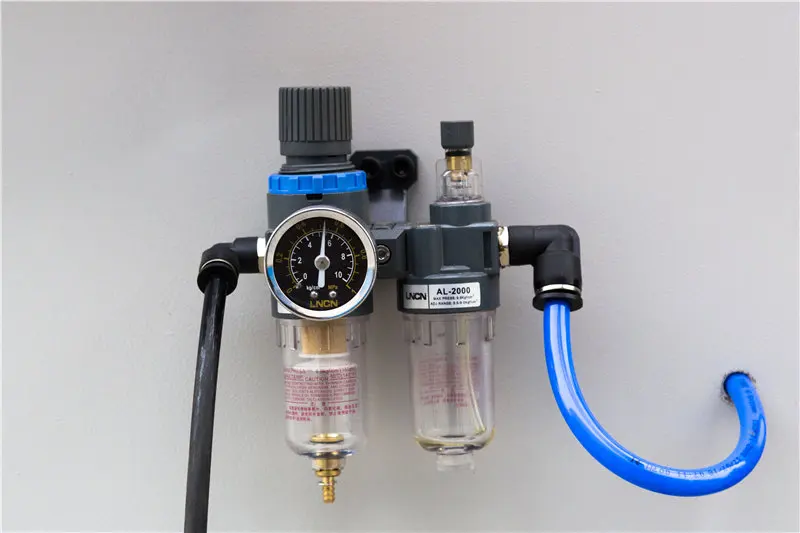

Air Pressure:	0.5-0.8Mpa;	Port:	Qingdao;
Weight (KG):	2000 KG;	Condition:	New;
Key Selling Points:	Easy to Operate;	After Warranty Service:	Video technical support,Online support,Spare parts;
Applicable Industries:	woodworking;	Weight of the whole machine:	2000kg;
Packaging Detail:	Wooden Box or what you want;	Motor Type:	Normal;
The number of spindles:	84;	Warranty:	1 year;
Supply Ability:	100 Set/Sets per Month;	Place of Origin:	Shandong China;
Overall Size:	385026001700(mm);

Multiple Spindle Woodworking Drilling Machine

borehole drilling machine for woodworking machinery

1. Introduction

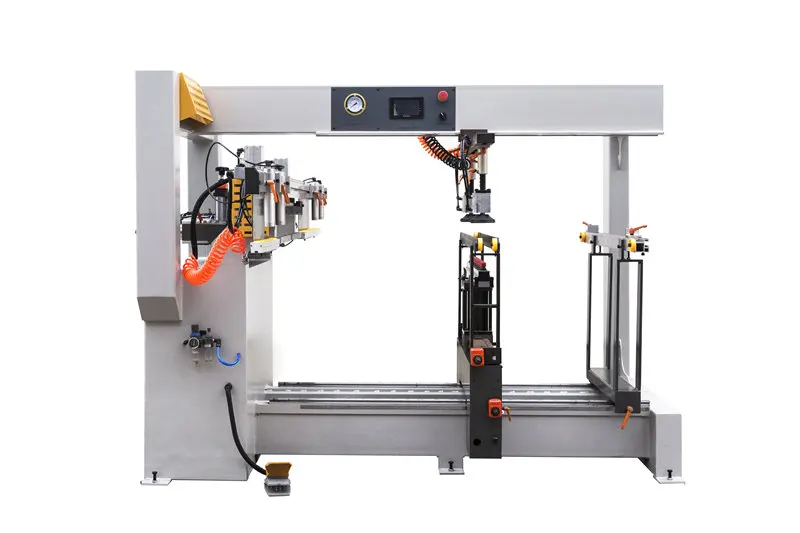

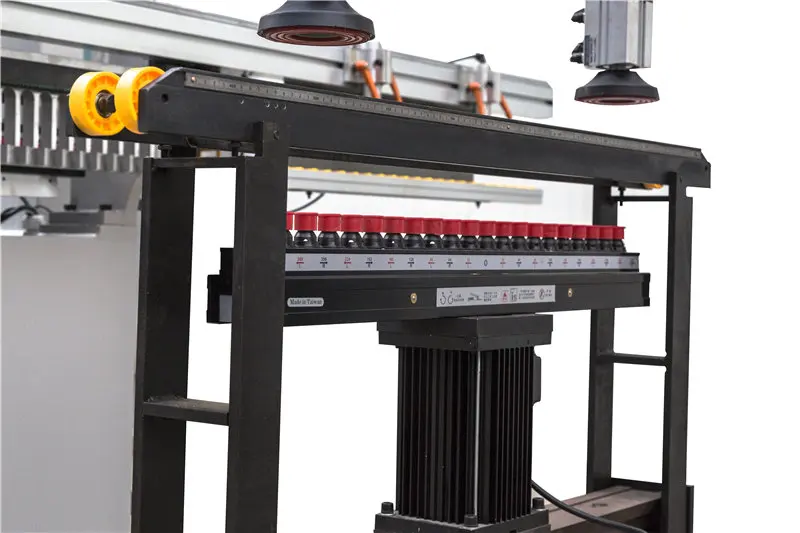

(1)Multiple rows hole drilling machines are combined single horizontal and double sets of vertical boring units to upgrade working efficiency and reduce your production costs.

(2)The vertical boring unit is set 90° for maximum boring position flexibility.

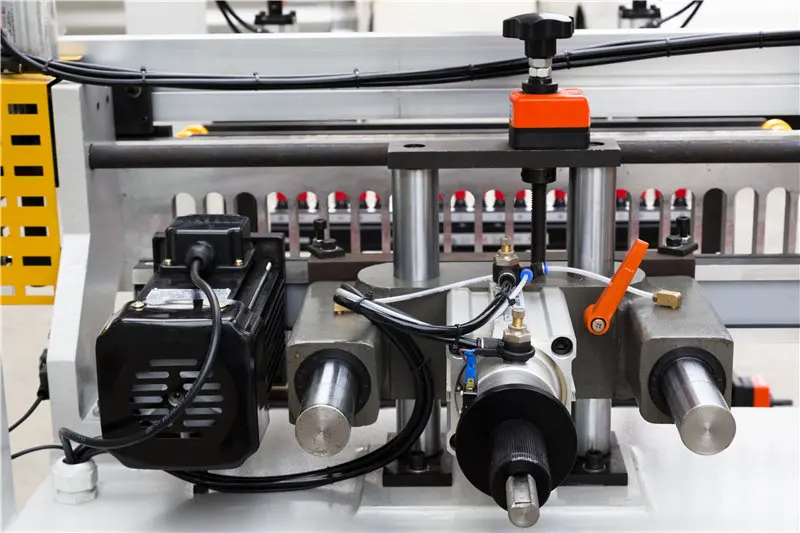

(3)The mechanical switch provides convenient and accurate adjustment for boring depth and position.

(4)Additional, optional automatic feeding equipment is available for upgrading working efficiency.

(5)The speed stabilizer guarantees smooth feeding against the workpiece.

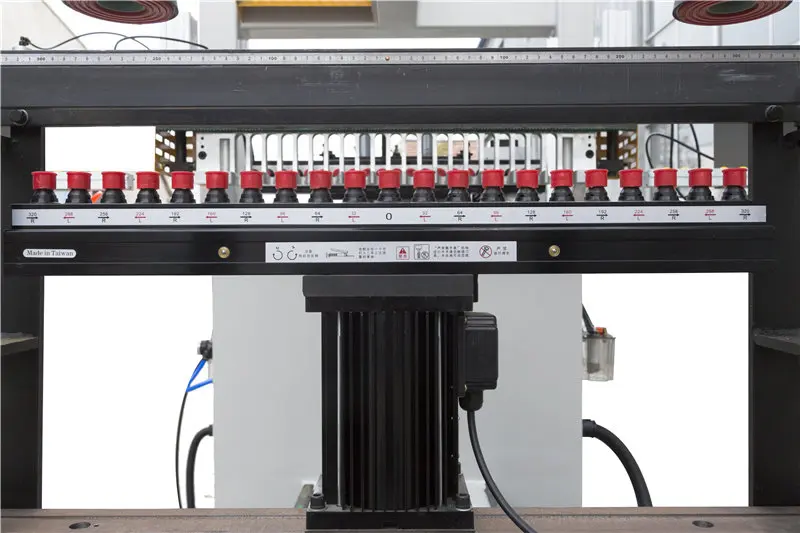

(6) Quick chucks provide convenient fitting and dismantling for boring bits. This is a combined single horizontal and double vertical, high efficiency multiple head rows drilling machine.

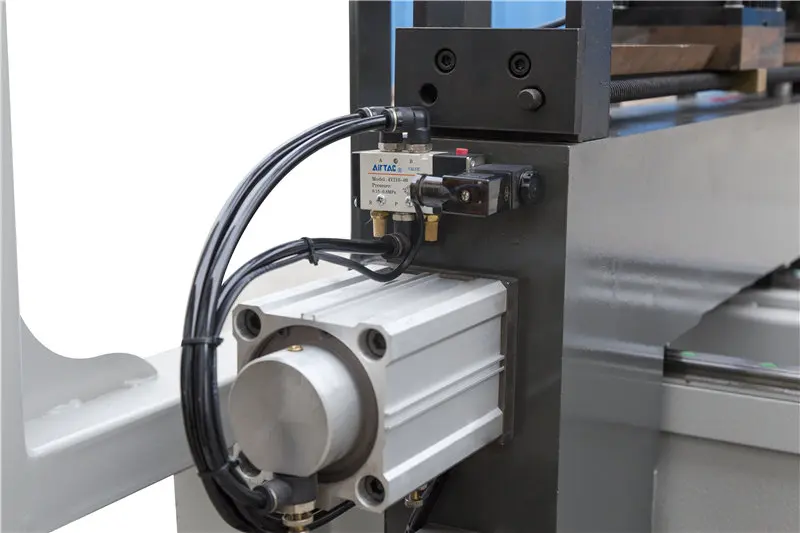

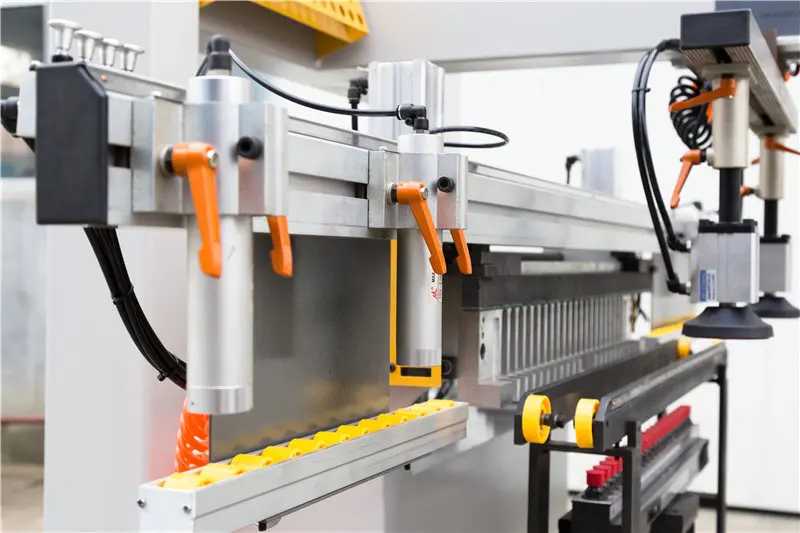

(7)Furthermore, the air-operated stoppers are convenient for repeat boring.

2. Technical Specifications

Maximum diameter of holes	35mm
Depth of drilled holes	0-60mm
The number of spindles	84.00
Centerdistance between spindles	32mm
Rotation of Spindle	2840r/min
Total Motor Power	6.0kw
Packing Size	*400013501750mm*
Suitable Voltage	~380v
Air Pressure	0.5-0.8Mpa
Gas consumption for drilling ten panels per minute approximately	35L/min Aproximately
Overall Size	*385026001700mm*
Weight of the whole machine	2000kg
High of working paltform off ground	850mm
Max. distance of the two longitudinal heads	2200mm

3. Characteristics

(1) Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill

(2) High-strength, reinforced the structure of the whole body of cast iron base. Vertical tank, horizontal seat, left and right panels, motors and other key parts of the base is also used in all cast iron

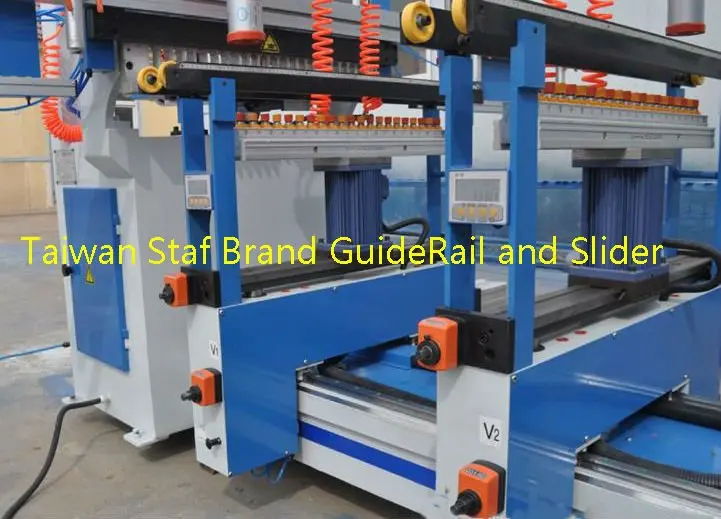

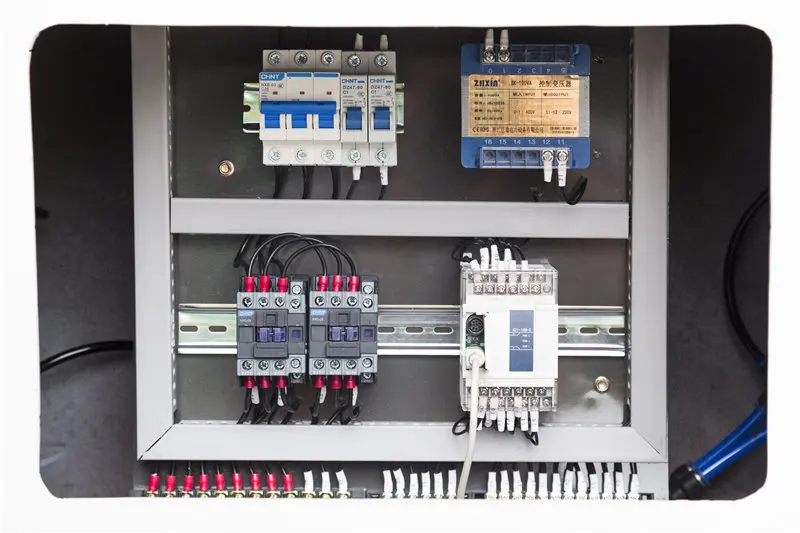

(3) The use of high-precision guide rail and the slider staf Taiwan, Hongkong production drill row,omron appliances. LG brand of PLC microcomputer control system, making the equipment more stable, easier to operate.
