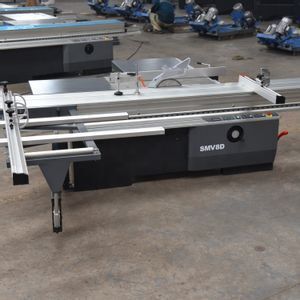

Woodworking Machinery 45 degree Cutting Sliding Table Panel Saw

Supplier: Qingdao Zhongding Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Bruce Lee
Price: $2400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components:	Motor;	Gross cutting capacity:	3200mm;
color of sliding table saw:	blue, red, black or any you like;	Application:	For furniture manufacturering;
Warranty of core components:	2 years;	Supply Ability:	10 Set/Sets per Week;
Voltage:	220V or any voltage you want;	main saw motor power:	5.5kw;
warranty:	2 years;	Payment Terms:	L/C,Western Union,T/T;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Retail,Construction works ;	Dimension(LWH):	32503150900mm;
After Warranty Service:	Video technical support,Online support;	Tilting saw group:	0-45°;
Condition:	New;	Certification:	ISO9001, CE;
Style:	Horizontal;	Video outgoing-inspection:	Provided;
Saw blade diameter:	300mm;	Type:	Panel Saw;
Weight (KG):	850;	Marketing Type:	Hot Product 2019;
Key Selling Points:	High-accuracy;	Dimensions of sliding table:	3200*388mm;
Packaging Detail:	packed by plywood case;	Max.Cutting Height at 90°(mm):	80mm;
Product name:	Woodworking Machinery 45 degree Cutting Sliding Table Panel Saw;	Max. Length of Workpiece (mm):	3200mm;
Power (kW):	6.6kw;	Max.Cutting Height at 45°(mm):	55mm;
Machinery Test Report:	Provided;	Showroom Location:	Viet Nam,Malaysia;
Warranty:	2 years;	Local Service Location:	Egypt,Viet Nam,Malaysia,Uzbekistan;
Use:	Woodworking;	Place of Origin:	Shandong China;
After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support;	Usage:	cut panel ,ABS, MDF board;
Brand Name:	QDZD;	Package Preview:	;
Port:	Qingdao;	Max. cutting width:	1250mm;

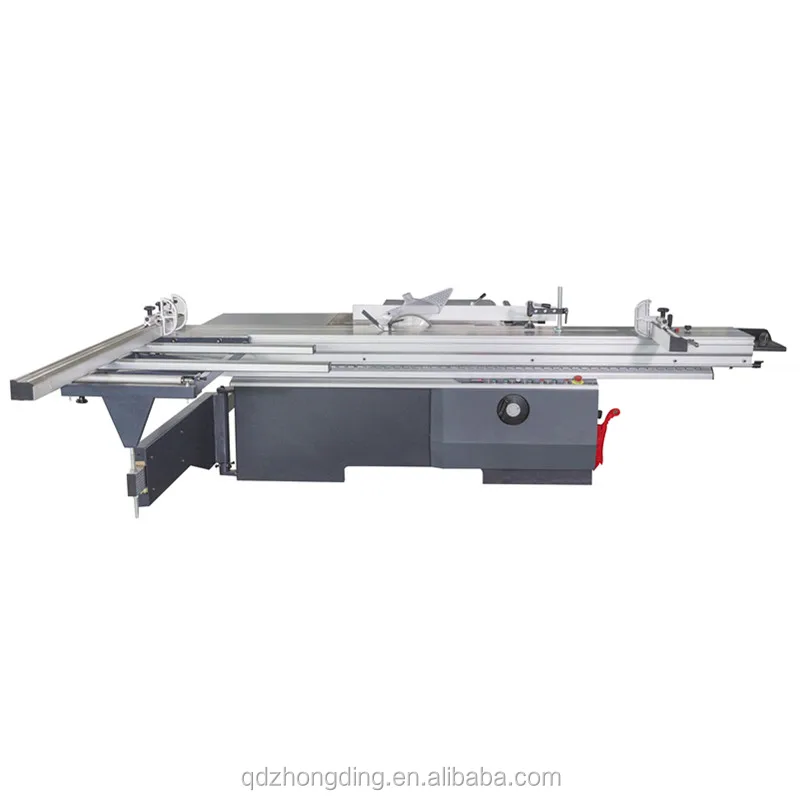

Woodworking Machinery 45 degree Cutting Table Panel Saw

Technical Specification

Model	ZDV8D
Dimension of sliding table	3200*388mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Tilting saw group	0-45°
Diameter of main saw blade	300mm
Max. cutting height (90°)	80mm
Speed of main saw spindle	4000/6000r.p.m
Main saw motor power	5.5kw
Main spindle diameter	30mm
Diameter of scoring saw blade	120mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1kw
Scoring saw spindle diameter	20mm

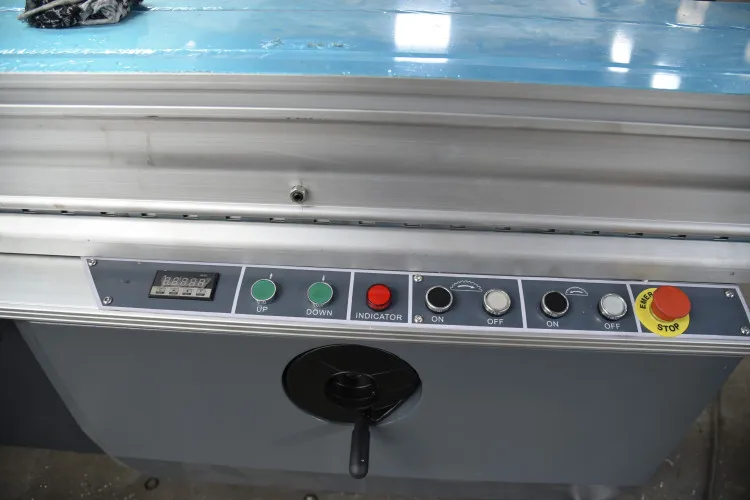

Lifting of saw blade	electrical lifting
Weight	750kg
Overall dimension	32503150900mm

Performance features

1. Improved internal structure, ensure stable and precision working environment;

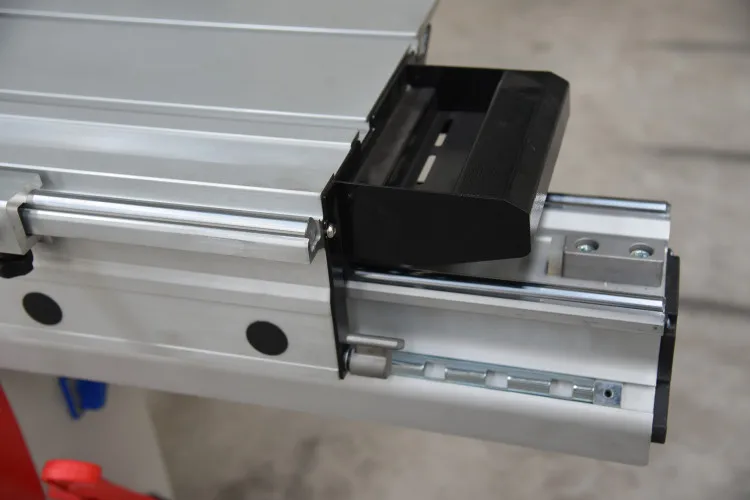

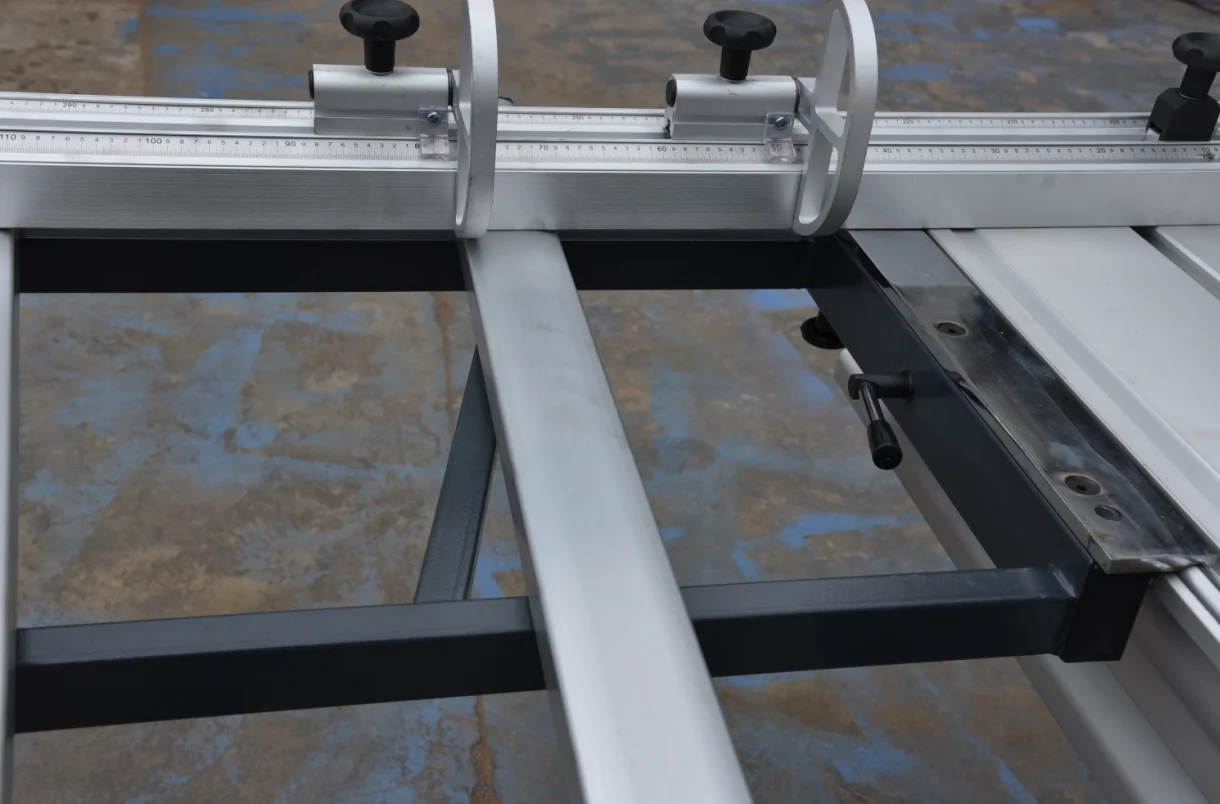

2. Aluminum sliding table with round stick rail, ensure smooth running;

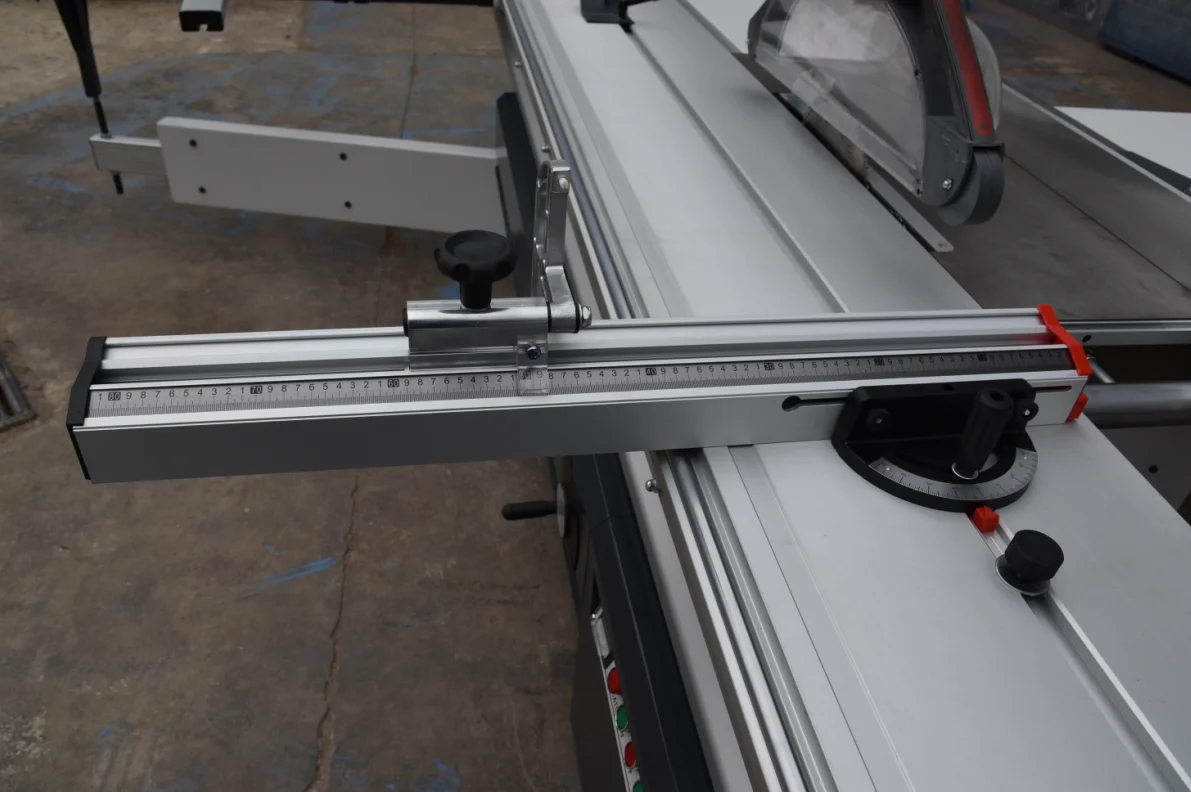

3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.

Detailed pictures

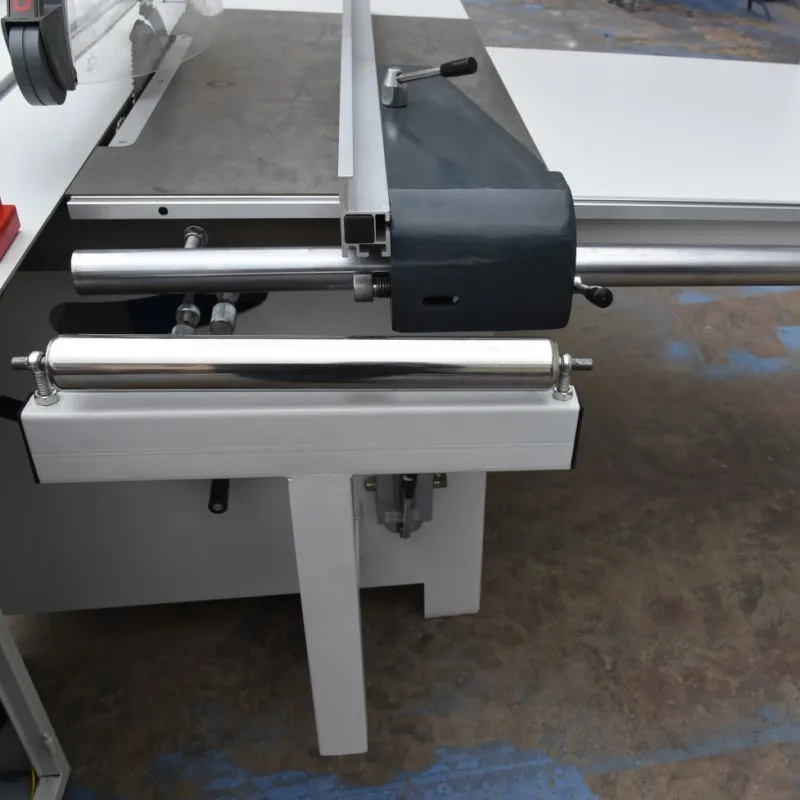

roller guide -- Euro-Seating
