MachineryOffers

hydraulic press machine, heat press machine, heat press

Product details
Size:4*8 foot;Pressure:as you want;
Key words:heat press machine;Packaging Detail:Standard Export Package for heat press;
Minimum Order Quantity:1set;Voltage:380v as your request;
Supply Ability:50 Set/Sets per Month heat press;Dimension(L*W*H):3850*1600*2210mm;
Payment Terms:L/C,T/T,Western Union;Warranty:1 Year;
Item:heat press;Power(W):4.5kw;
Weight:103800Kg;After-sales Service Provided:Engineers available to service machinery overseas;
Certification:ISO CE;Brand Name:ZD;
Max service opening:80-120mm;Working pressure of high pump:25Mpa;
Dimension of hot platens:1300*2500mm;Port:QingDao;
Nominal pressure:1.0MN;After-sales Service Provided:Free spare parts;
Place of Origin:Shandong China;Condition:New;
Heating medium:Steam or thermal oil;

Hydraulic Press Machine, Heat Press Machine, Heat Press



 Feature of heat press:



1. The heating platen is processed by a piece of complete steel, so its surface is smooth, and can be heated evenly.

2. The frame of machine is made of high-precision steel with reasoned design. It can prevent the deformation caused by high pressure.

3. The hydraulic cylinders of this machine are the same as the ones used in big engineering machine, they can be used for many years without any oil leak, and they can meet high pressure demand.



Specifications of heat press



Model

BY214*8/10(1)H

Size of worktable (mm)

1300x2500mm

Nominal pressure

100T

Max. Service opening

80-120mm

Max. Working temp

120°C

Number of layers

1 layers

Power source:

according to your request

 Usage hydraulic press machine

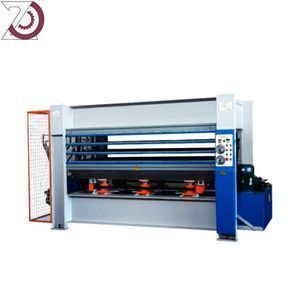

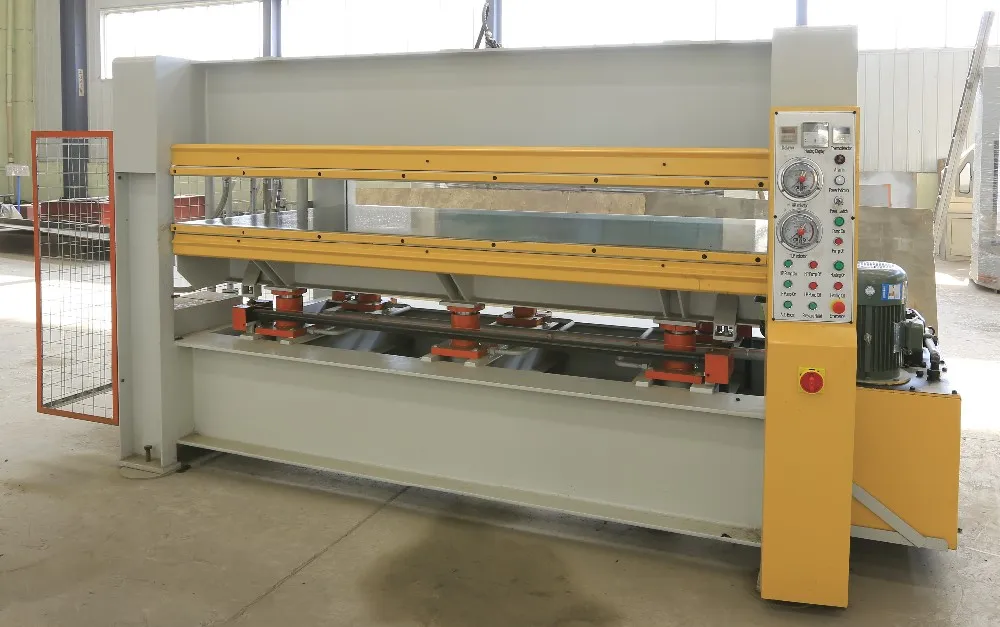

Pictures of Heat Press Machine

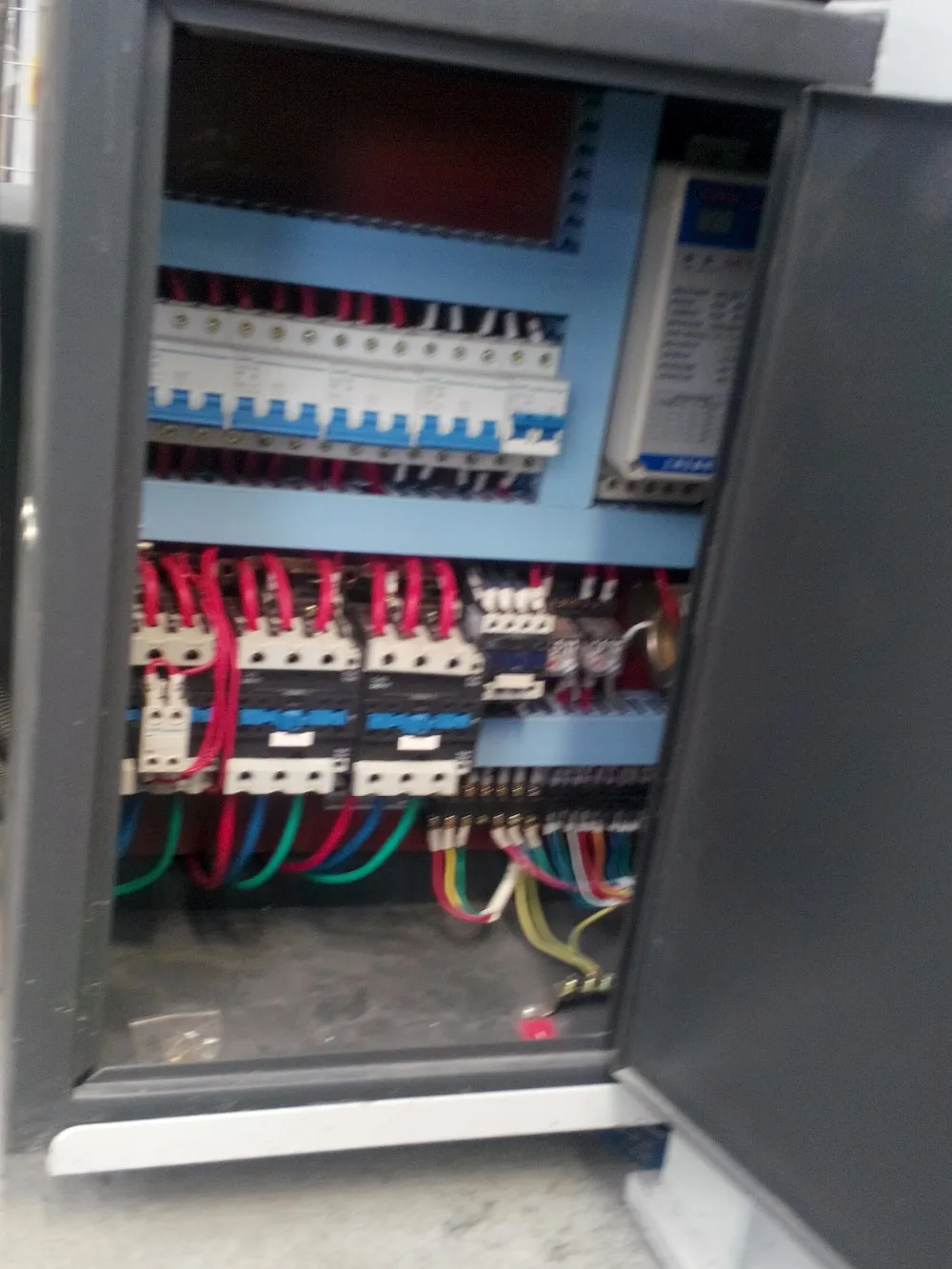

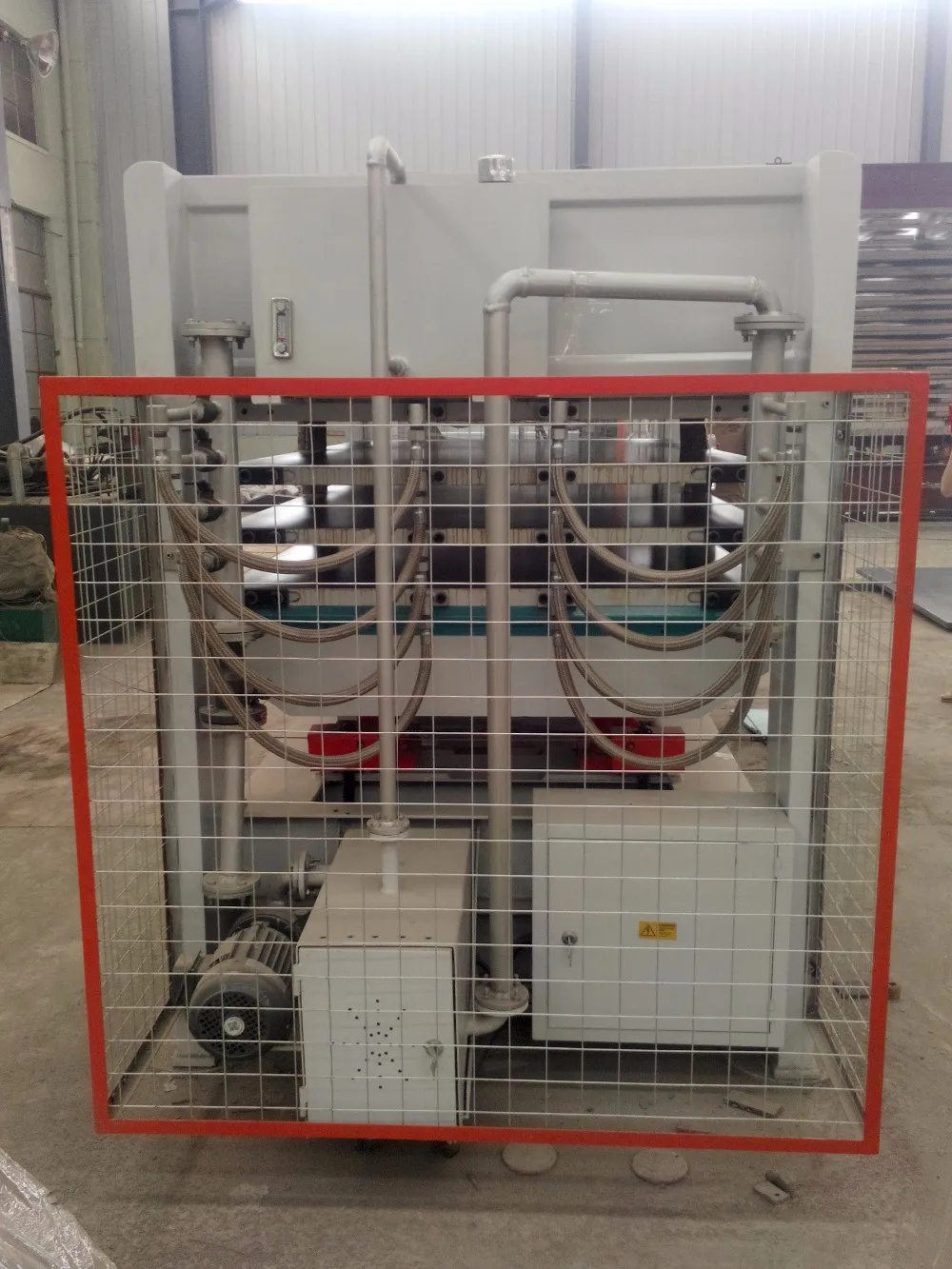

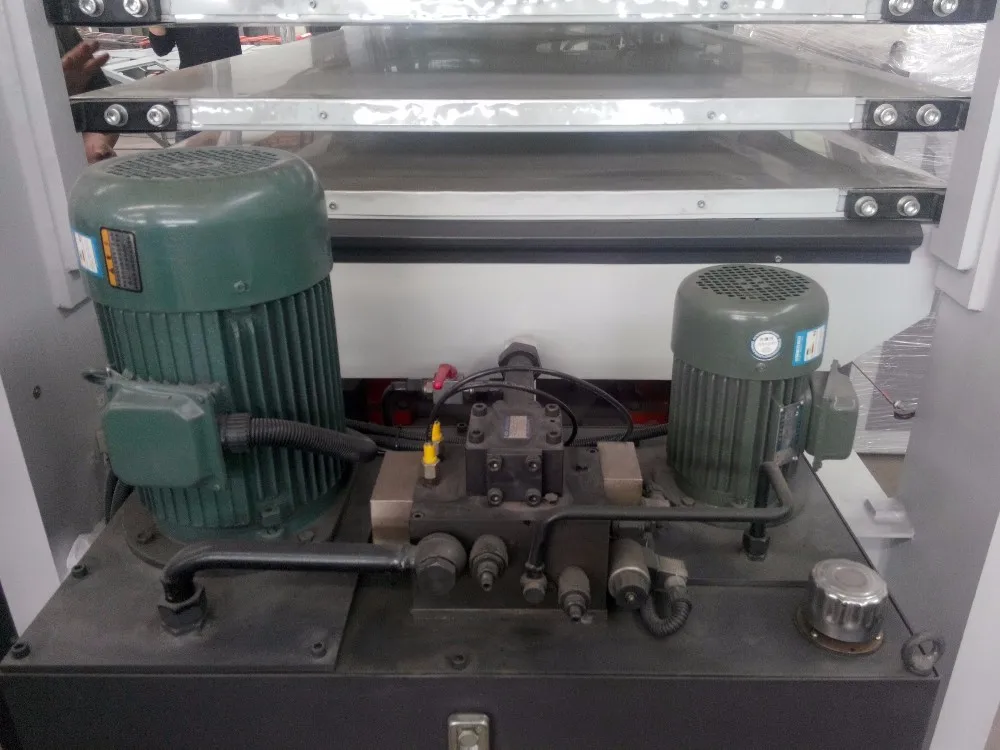

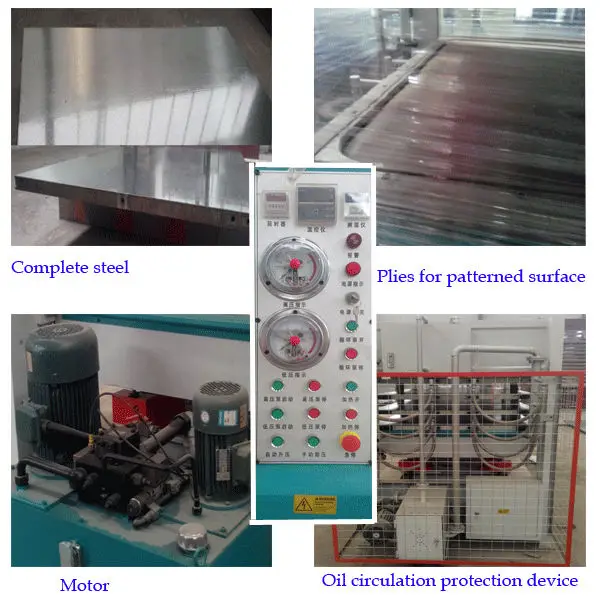

Parts of Heat Press

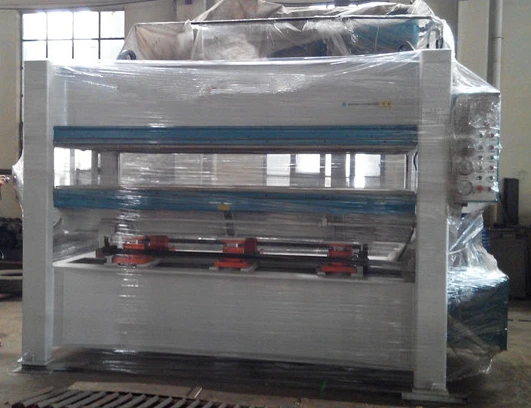

Packaging & Shipping







Our Services

 Sale services for Plywood Heat Press Machine :

(1) Pre-sale services:

* Provide the free consultation of the equipment .

* Provide the standard device and the flow chart.

* According to the clients’ special requirement, offering the reasonable plan and free design helping to

select the equipment.

* Welcome to visit our factory.

(2)Services during the sales:

* Inspect the machine before leaving the factory.

* Oversea install and debug the equipment.

* Train the first-line operator.

(3)After sale services:

* 24 hours online service.

* Provide the VIDEO with Install and debug the equipment.

* Provide technical exchanging.

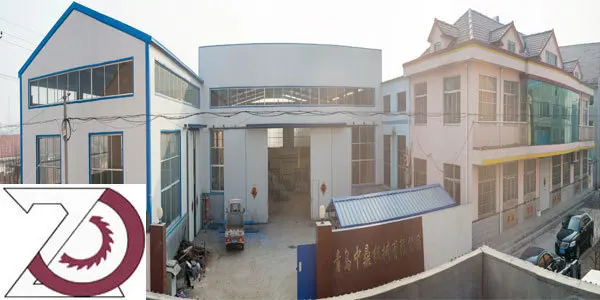

Company Information

    Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.

    Our products are mainly included Precise panel saw, R series Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
