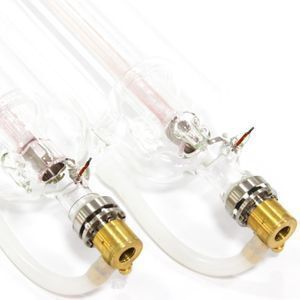

10600nm 10000 hours 80w 90w 100w 130w 150w 180w co2 Reci EFR laser tube

Supplier: Wuhan Kindlelaser Optoelectronic Co., Ltd.
Region: Hubei, China
Contact: Mr Robert Chen
Price: $110.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Triggering voltage:	20-35KV;	Weight (KG):	4 KG;
Place of Origin:	Hubei China;	Warranty:	6 Months;
Operating current:	5-40mA;	Port:	WuHan,Shanghai;
Key Selling Points:	Low Maintenance Cost;	After-sales Service Provided:	Free spare parts,Online support;
Outer diameter(mm):	50-80;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Spare Parts Type:	consumable;	After Warranty Service:	Video technical support,Online support,Spare parts;
Beam diameter:	1.95-3.8;	Power stability:	≤±5;
Actual power:	40-150w;	Certificate:	CE;
Showroom Location:	None;	Local Service Location:	None;
Brand Name:	JINSHIDA;	Operating voltage:	10-25KV;
Packaging Detail:	To be packed in a standard wooden case or as clients' requirements for reci laser tube;	Supply Ability:	1000 Piece/Pieces per Month laser tube;
Condition:	New;	Applicable Industries:	Machinery Repair Shops,Retail;

10000 hours 80w 90w 100w 130w 150w 180w co2 Reci EFR laser tube

Laser tube features

There is a kind of laser tube

High power rate, fast - speed cutting and small size

Origin: Asia and Pacific Area China

Quality standard: International

8 hours working every day,it goes for 3years
It's kerf received a full of customer praise and won reputation

How much do you ecaluate it?

Item specifics

Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.

Laser Wave Length: 10.6um

Laser Mode:low order mode

Water-Cooling:purified water, appropriate temperature 10-35℃.

Working Environment:temperature 5-35℃, humidity 10-60%, clean environment, no serious pollution.

Working Current:26~30mA is appropriate (excessive current will affect laser power and laser tube lifetime.

Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.

Laser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )

Model	Rated Power(W)	Max Power(w)	Length(mm)	Diameter(mm)	Catalyze
JSD-50-700	40	50	700	50	Yes
JSD-50-800	50	60	800	50	Yes
JSD-50-1000	50	70	1000	50	Yes
JSD-55-1000	50	70	1000	55	Yes
JSD-55-1200	60	80	1200	55	Yes
JSD-55-1250	60	80	1250	55	Yes
JSD-60-1200	60	80	1200	60	Yes
JSD-60-1250	60	80	1250	60	Yes
JSD-80-1250	80	100	1250	80	Yes
JSD-60-1600	80	110	1600	60	Yes
JSD-80-1200	90	100	1200	80	Yes
JSD-80-1400	100	120	1400	80	Yes
JSD-80-1450	100	120	1450	80	Yes
JSD-80-1600	130	150	1600	80	Yes
JSD-80-1650	130	160	1650	80	Yes
JSD-80-1800	150	180	1800	80	Yes
JSD-80-2000	180	190	2000	80	Yes

A good or bad one?

How to identify a good or bad laser tube?

1)Install the laser tube properly;
2)Prepare a piece of acrylic board;
3)Put the acrylic board on the light outlet of the laser tube for laser dot test;
4)If it can form a standard conical hole (it proofs the standard TEMOO Basement Membrane Mode was applied), it means the laser tube is qualified. Then you can use it without any worry.
