New Leadshine DM2282 digital stepper driver for 2 phase NEMA 34 and NEAM 42 step motor 2.2~8.2A work 80~220VAC

Extra-low motor noise offers excellent quietness

Anti-Resonance, provides optimum torque and nulls mid-range instability

Self-test and Auto-configuration technology, offers optimum responses with different motors

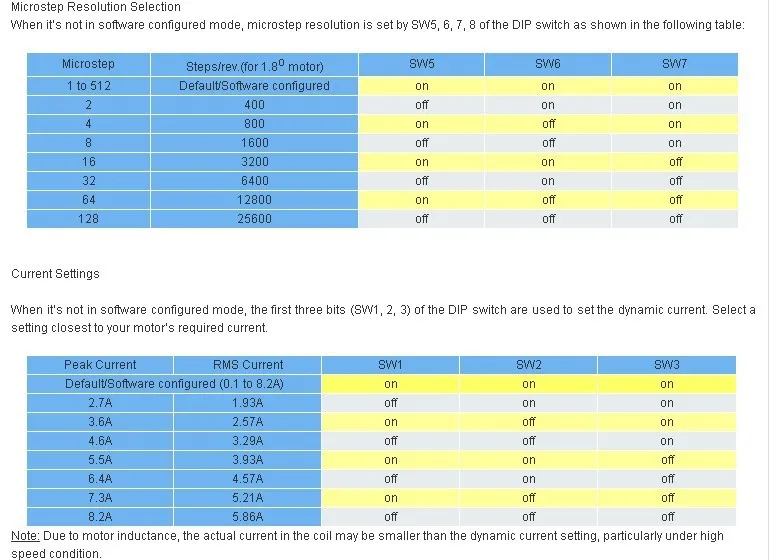

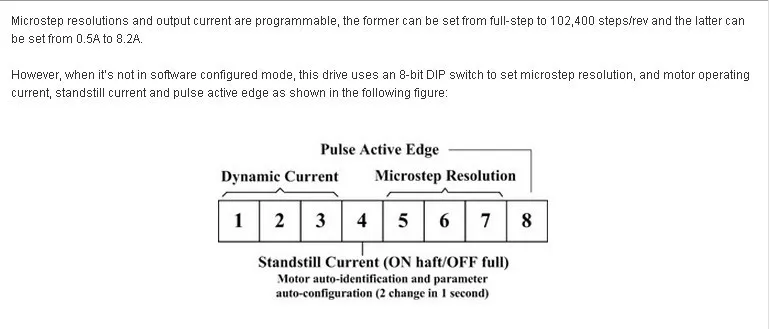

Microstep resolutions programmable, from full-step to 102,400 steps/rev

Supply voltage up to 220 VAC

Output current programmable, from 0.5A to 8.2A

Pulse input frequency up to 200 KHz

Automatic idle-current reduction

Supports PUL/DIR and CW/CCW modes

Description:

The DM2282 is a high voltage, versatility fully digital stepping driver based on a DSP with advanced control algorithm.  It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers on the markets. Its unique features make the DM2282 an ideal solution for applications that require low-speed smoothness.

Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.

Application:

Suitable for a wide range of stepping motors, from NEMA size 17 to 54. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precisio

Leadshine mainly includes digital stepper drive, stepper motor, simple servo system, AC servo system, digital DC servo system, integrated motor, multi-axis PCI motion control card, stand-alone motion controller, dedicated CNC system In the electronics, machinery, measurement, laser, medical, textile, packaging, advertising and other industries hundreds of automation equipment has been widely used.
