40W 50W 60W 80W 100W 130W 150W Laser Cutting Engraving Machine With Laser Tube

Supplier: Wuhan Kindlelaser Optoelectronic Co., Ltd.
Region: Hubei, China
Contact: Mr Robert Chen
Price: $196.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Diameter:	50mm+/-2mm or 80mm+/-2mm;	Package Type:	To be packed standard wooden case or as clients' requirements;
Wavelength:	10.6um;	Warranty:	6months;
Single gross weight:	20 KG;	Brand Name:	JINSHIDA;
Selling Units:	Single item;	Power:	50w/60w/70w/80w/90w/100w/130w/150w;
Application:	Laser Engraving;	Material:	Glass;
Color:	Transparent;	Applicable Industries:	Machinery Repair Shops,Printing Shops,Energy & Mining,Advertising Company;
Certificate:	CE;	Place of Origin:	Hubei China (Mainland);
Single package size:	180X40X40 cm;	Laser Type:	"C"catalytic;
Usage:	Laser Cutter Machine;

40W 50W 60W 80W 100W 130W 150W Laser Cutting Engraving Machine With Laser Tube

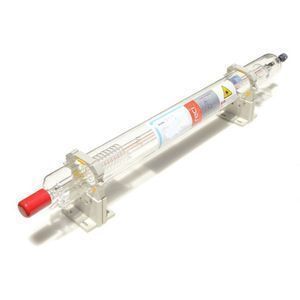

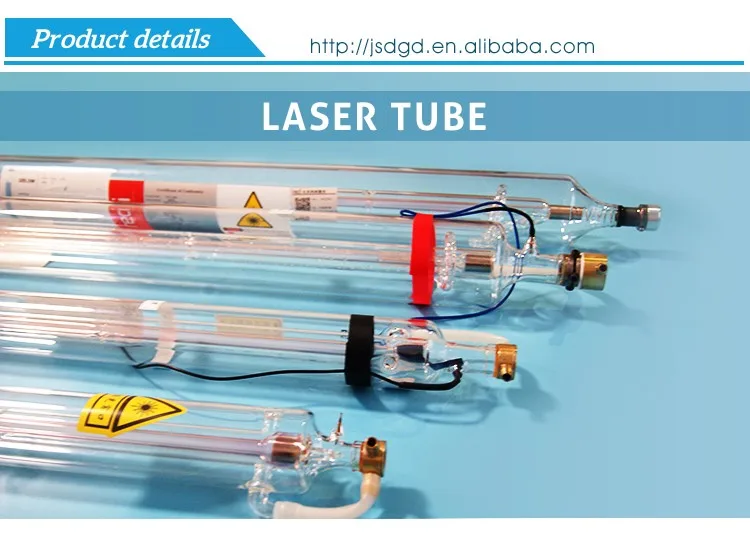

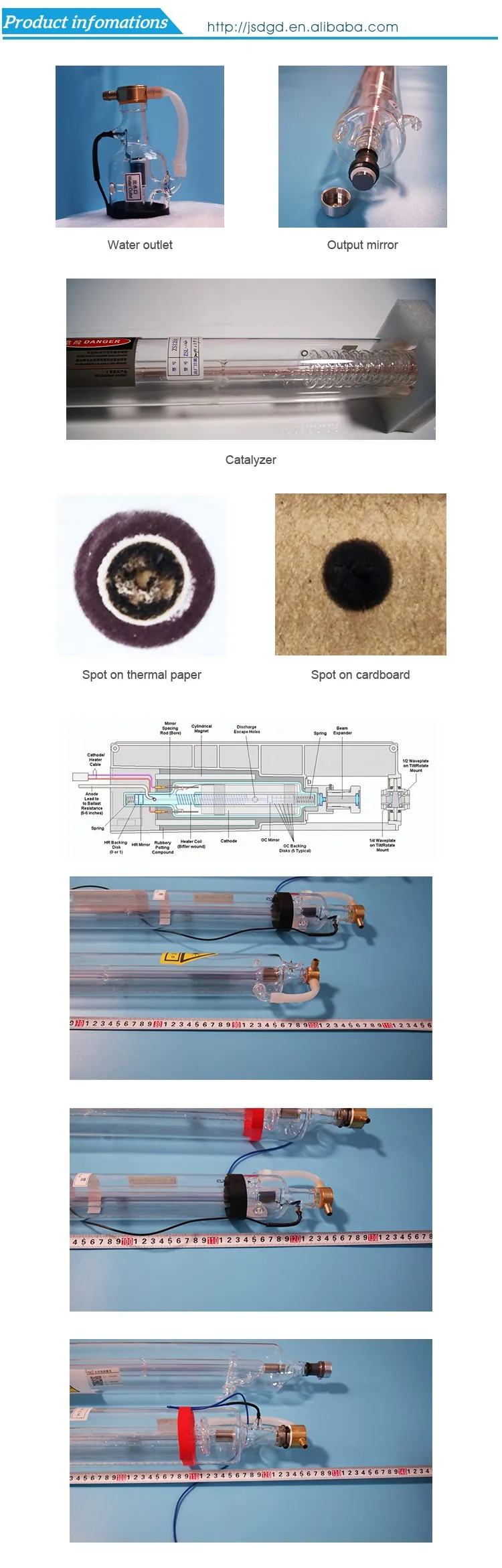

Laser tube features

There is a kind of laser tube

High power rate, fast - speed cutting and small size

Origin: Asia and Pacific Area China

Quality standard: International

8 hours working every day,it goes for 3years
It's kerf received a full of customer praise and won reputation

How much do you ecaluate it?

Item specifics

Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.

Laser Wave Length: 10.6um

Laser Mode:low order mode

Water-Cooling:purified water, appropriate temperature 10-35℃.

Working Environment:temperature 5-35℃, humidity 10-60%, clean environment, no serious pollution.

Working Current:26~30mA is appropriate (excessive current will affect laser power and laser tube lifetime.

Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.

Laser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )

Model	Rated Power(W)	Max Power(w)	Length(mm)	Diameter(mm)	Catalyze
JSD-50-700	40	50	700	50	Yes
JSD-50-800	50	60	800	50	Yes
JSD-50-1000	50	70	1000	50	Yes
JSD-55-1000	50	70	1000	55	Yes
JSD-55-1200	60	80	1200	55	Yes
JSD-55-1250	60	80	1250	55	Yes
JSD-60-1200	60	80	1200	60	Yes
JSD-60-1250	60	80	1250	60	Yes
JSD-80-1200	80	100	1200	80	Yes
JSD-80-1250	80	100	1250	80	Yes
JSD-60-1600	80	110	1600	60	Yes
JSD-80-1200	90	100	1200	80	Yes
JSD-80-1400	100	120	1400	80	Yes
JSD-80-1450	100	120	1450	80	Yes
JSD-80-1600	130	150	1600	80	Yes
JSD-80-1650	130	160	1650	80	Yes
JSD-80-1800	150	180	1800	80	Yes
JSD-80-2000	180	190	2000	80	Yes

A good or bad one?

How to identify a good or bad laser tube?

1)Install the laser tube properly;
2)Prepare a piece of acrylic board;
3)Put the acrylic board on the light outlet of the laser tube for laser dot test;
4)If it can form a standard conical hole (it proofs the standard TEMOO Basement Membrane Mode was applied), it means the laser tube is qualified. Then you can use it without any worry.
