Frequency: | 50HZ, 60HZ; | Output Type: | AC Three Phase; |
Power: | 50 kva generator; | Delivery Detail: | 2 to 4 weeks(5kw diesel generator); |
Supply Ability: | 500 Set/Sets per Month 50 kva generator; | Rated Voltage: | 110/220V, 220/380V, 230/400V, 240/415V, 254/440V, 277/480V; |
Packaging Detail: | Standard packing under shrink; | Port: | Xiamen; |
Rated Current: | Depend; | Rated Power: | 50kva; |
Controller: | Deepsea; | Degree: | IP 23; |
Governor: | Electrical; | Engine: | with Perkins engine; |
Place of Origin: | Fujian China (Mainland); | Brand Name: | AOSIF; |
QC Test: | one hour; | Generator: | generator head; |
Class: | H; | Speed: | 1500rpm,1800rpm; |
Excitation: | brushless; | Alternator: | Power by Leroy somer,Power by Stamford; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Model Number: | AP; |
More Information ABOUT US Please Click Here

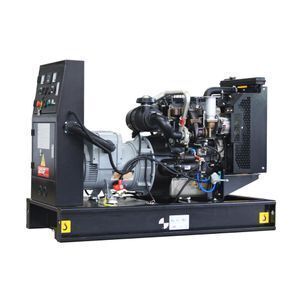

Aosif 5-80kw Diesel generator with Perkins engine 403 404 1103 1104 series 50HZ/1500rpm
Genset Model | Prime power | Engine model | Fuel consumption(L/h) | Cylinder | Displacement(L) | Genset Dimension | weight(kg) |
KW/KVA | |||||||
AP10-I | 7/9 | 403A-11G1 | 3.0 | 3L | 1.1 | 1090*500*1000 | 353 |
AP10-II | 7/9 | 403D-11G | 2.6 | 3L | 1.1 | 1090*500*1000 | 353 |
AP14-I | 10/13 | 403A-15G1 | 3.7 | 3L | 1.5 | 1140*500*1000 | 427 |
AP14-II | 10/13 | 403D-15G | 3.6 | 3L | 1.5 | 1140*500*1000 | 427 |
AP17 | 12/15 | 403A-15G2 | 5.0 | 3L | 1.5 | 1170*500*1000 | 434 |
AP22-I | 16/20 | 404A-22G1 | 5.3 | 4L | 2.2 | 1290*500*1000 | 494 |
AP22-II | 16/20 | 404D-22G | 5.3 | 4L | 2.2 | 1290*500*1000 | 494 |
AP28 | 22/28 | 404D-22TG | 7.1 | 4L | 2.2 | 1290*500*1000 | 494 |
AP33 | 24/30 | 1103A-33G | 7.1 | 3L | 3.3 | 1450*630*1120 | 772 |
AP50 | 36/45 | 1103A-33TG1 | 10.7 | 3L | 3.3 | 1520*530*1120 | 812 |
AP66 | 48/60 | 1103A-33TG2 | 13.9 | 3L | 3.3 | 1550*630*1120 | 866 |
AP72 | 52/65 | 1104A-44TG1 | 14.8 | 4L | 4.4 | 1730*630*1350 | 1015 |
AP88-I | 64/80 | 1104A-44TG2 | 18.7 | 4L | 4.4 | 1730*630*1350 | 1085 |
AP88-II | 64/80 | 1104C-44TAG1 | 18.6 | 4L | 4.4 | 1755*630*1350 | 1085 |
AP110 | 80/110 | 1104C-44TAG2 | 22.6 | 4L | 4.4 | 1820*750*1250 | 1240 |
Aosif 5-80kw Diesel generator with Perkins engine 403 404 1103 1104 series 60HZ/1800rpm
Genset Model | Prime power | Engine model | Fuel consumption(L/h) | Cylinder | Displacement(L) | Genset Dimension | weight(kg) |
KW/KVA | |||||||
AP13 | 9/11 | 403D-11G | 3.0 | 3L | 1.1 | 1090*500*1000 | 353 |
AP18 | 13/16 | 403D-15G | 4.2 | 3L | 1.5 | 1140*500*1000 | 427 |
AP20 | 14/18 | 403A-15G2 | 4.3 | 3L | 1.5 | 1170*500*1000 | 434 |
AP26 | 19/24 | 404D-22G | 6.2 | 4L | 2.2 | 1290*500*1000 | 494 |
AP35 | 26/32 | 404D-22TG | 8.3 | 4L | 2.2 | 1290*500*1000 | 494 |
AP39 | 28/35 | 1103A-33G | 8.6 | 3L | 3.3 | 1450*630*1120 | 772 |
AP59 | 43/54 | 1103A-33TG1 | 12.9 | 3L | 3.3 | 1520*530*1120 | 812 |
AC75 | 55/68 | 1103A-33TG2 | 16.6 | 3L | 3.3 | 1550*630*1120 | 866 |
AC84 | 61/76 | 1104A-44TG1 | 17.8 | 4L | 4.4 | 1730*630*1350 | 1015 |
AP100-I | 72/90 | 1104C-44TAG1 | 22 | 4L | 4.4 | 1755*630*1350 | 1085 |
AP100-II | 73/91 | 1104A-44TG2 | 22.3 | 4L | 4.4 | 1730*630*1350 | 1085 |
AP126 | 92/115 | 1104C-44TAG2 | 26.9 | 4L | 4.4 | 1820*750*1250 | 1240 |
Contact us for more details about Price,Paking,Shipping and Discount.
