deepsea control panel with cummins engine for diesel generator

Click here to contact

Product details

Product Name:	control panel with cummins engine deepsea;	Supply Ability:	500 Set/Sets per Month;
Port:	Xiamen;	Type:	DSE Generator Control Module;
Weight:	0.5kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	foam and PE film package, plywood package, plastic film package;	Place of Origin:	Fujian China;
Certificate:	CE ISO9001;	Warranty:	365days/1 Year;
Brand Name:	Aosif;	Color:	Black;

Product Description

Deepsea control panel of 7320 for diesel gensetsea control panel of 6020 f

Deepsea 7320 is an auto mains failure controller for single generator, it can monitor and protect the generator working all the time.

it has a LCD display which clearly shows the status of the engine. this controller include seven inputs and six outputs.

This controller can also be programmed using the frong panel or by using DSE configuration Suite PC software.

Parameters: This controller can provide Generator frequency, Under/over speed, Generator volts, Generator current, Engine oil pressure,

Engine coolant temperature, Flexible fuel level, Hours run counter, Battery volts, Fail to start/stop, Emergency Stop.

Failed to reach loading voltage/frequency, Charge fail, Loss of magnetic pick-up signal, Low DC voltage, CAN diagnostics and CAN fail/error,

Mains volts 3 phase, Mains frequency, AMF indications

Protection:

♦Low Oil Pressure

♦High water Temperature

♦High voltage and low voltage

♦Overspeed

♦Volt adjuster and frequency adjuster.

♦Emergency stop

♦Fail to start

Features:

♦Protection: Automatic start/stop, load transfer and alarming of generator;

♦ CAN and magnetic pick-up versions.

♦PC and front panel configurable

♦4 digital inputs and 3 analogue inputs.

♦6 outputs(4 configurable on magnetic pick-up, 6 configurable on Canbus version).

♦3 phase generator and mains voltage monitoring.

♦remote start on or off load.

♦advanced metering capability.

♦test button.

♦protected solid state outputs.

♦transfer between mains and generator power.

♦user-friendly set-up and button layout.

♦multiple engine parameters are monitored simultaneously.

♦module can be configured to suit individual applications.

♦IP 65 rating offers advanced resistance to water ingress when gasket is fitted.

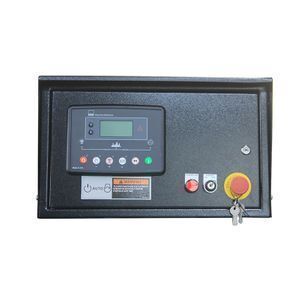

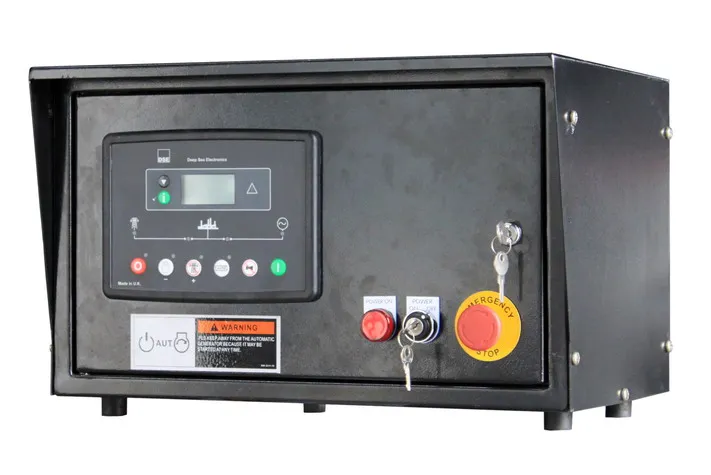

Product Show
