250A GBT Ev Connector Quick Ev Charging Station Outlet Plug

Product details
Type:Plug;Voltage:1000V DC;
Ingress Protection:IP 55( working condition);Package Type:standard oversea packing for car plug;
Place of Origin:China;Application:Electric Vehicle Car Charging Station;
Withstand Voltage:3200V;Selling Units:Single item;
Insulation resistance:>2000MΩ (DC1000V);Case Material:Thermoplastic, Flame retardant grade UL94-0;
Brand Name:SENKU;Single gross weight:2 KG;
Pin:Cooper alloy + Sliver plating;Type:car plug;
Single package size:15X15X10 cm;Contact Resistance:0.5m Ω Max;
Model Number:GBT DC;Rated current:250A;

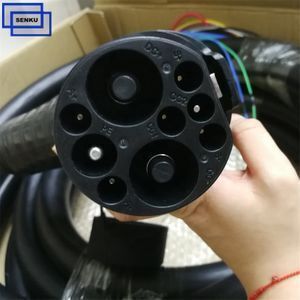

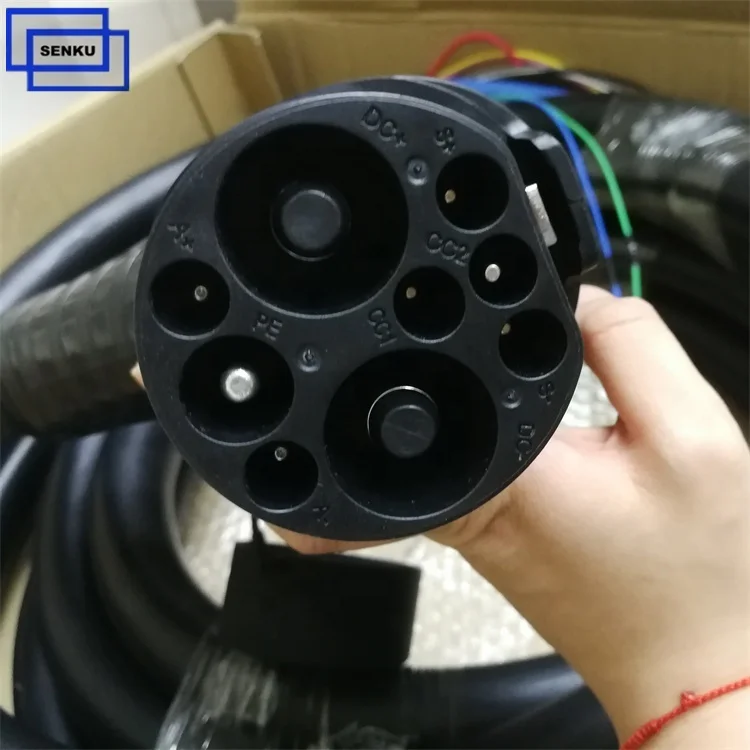

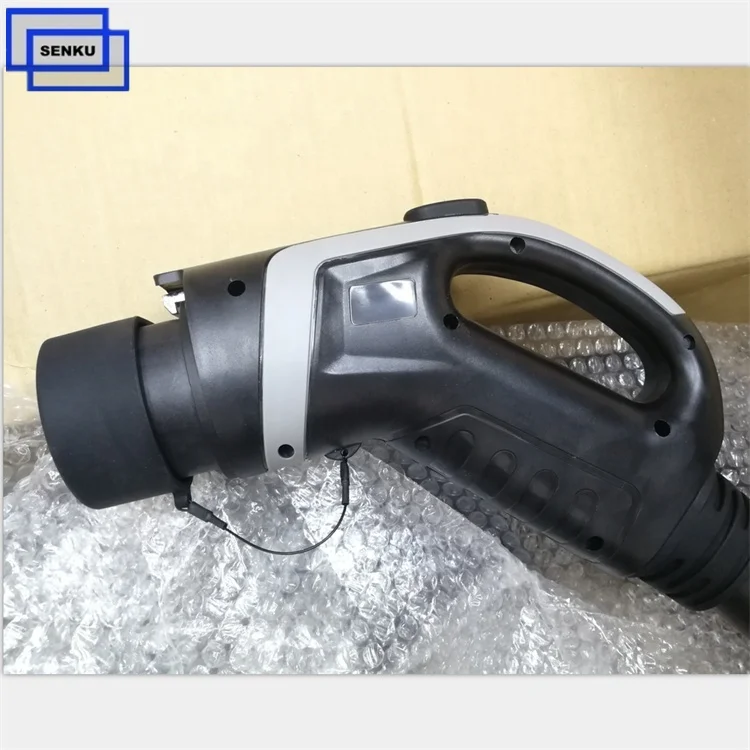

GBT Ev Connector Quick Ev Charging Station Outlet Plug







Combo 2 Plug Electric Performance.

Rated current

250A MAX

Operation voltage

1000V DC MAX

Insulation resistance

>2000MΩ (DC1000V)

Terminal temperature rise.

<50K

Withstand Voltage

3200V

Contact Resistance

0.5m Ω Max

Mechianical life

no-load plug in / plug out > 10000 times

Coupled insertion force

<100N

Impact of External Force

can offord 1m drop test and 2T vehicle run over pressure

Case Material

Thermoplastic, Flame retardant grade UL94-0

Pin

Cooper alloy, Sliver plating

Operation Temp.

-30℃ ~ + 50℃

IP protection class

 IP 65 ( working condition)

Certificate

TUV CE ROHS

Should install cable Specifc

2*80 mm² + 1*25 mm² + 6*0.75mm²

Note: This price for GBT Plug ONLY, if you need the charging cable, please tell us the cable length.



FAQ

Q: Do you have  GBT Vehicle Side Inlet Socket and plug?
Yes, we have it, Details please contact us here .

Q: Do you have any GBT ev charging stations?
Yes, Details please contact us here .
