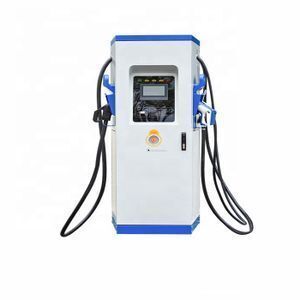

CE Approved EVSE Combo CCS Type1 Type 2 CHADEMO Fast Charge OCPP 60KW 90KW 120KW Configurable EV Charging Station

Supplier: Chongqing Senku Machinery Imp And Exp Co., Ltd
Region: Chongqing, China
Contact: Mr Bake Wei
Price: $14000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input voltage:	400V AC / 480AVC option;	Model Number:	120KW;
Single gross weight:	999.0 KG;	Selling Units:	Single item;
Single package size:	1700X900X900 cm;	Application scenes:	Parking lot/Public ev charging station;
Certificate:	CE;	Brand Name:	SENKU;
Packaging Detail:	standard ev charging station use wooden case for for ev charging station;	Package Preview:	;
Key Words:	ev charging station;	Output voltage:	150-550V DC / 150-750V DC / 150-1000V DC;
OCPP version:	OCPP1.6;	Communication:	PLC, CAN, PWM, Ethernet, Wi-FI, 3G, 4G, OCPP 1.6;
Output Power:	60kw to 160kw for option;	Place of Origin:	Chongqing China;
Charging outlets:	1 or 2 or 3;

Combo CCS1 CCS2 CHAdeMO AC Type 2 Connectors 60KW to 160KW Configurable EV Charging Station

Product Description

1. Basic Data

AC Input	Input Voltage	3-phase (without neutral supported); 260-530VAC;45Hz-65Hz
DC Output	Output Voltage/Current	DC Part: 60KW to 160KW Configurable; 200A max 150V DC -550V DC / 150V -750V DC / 150V - 1000V DC option AC Part: 22KW 32A max
Electrical Specification	HMI	Colorful 7" Touch screen; LED Indicator; Emergency Stop Button
	Start Method	RFID Card or Smart Phone APP

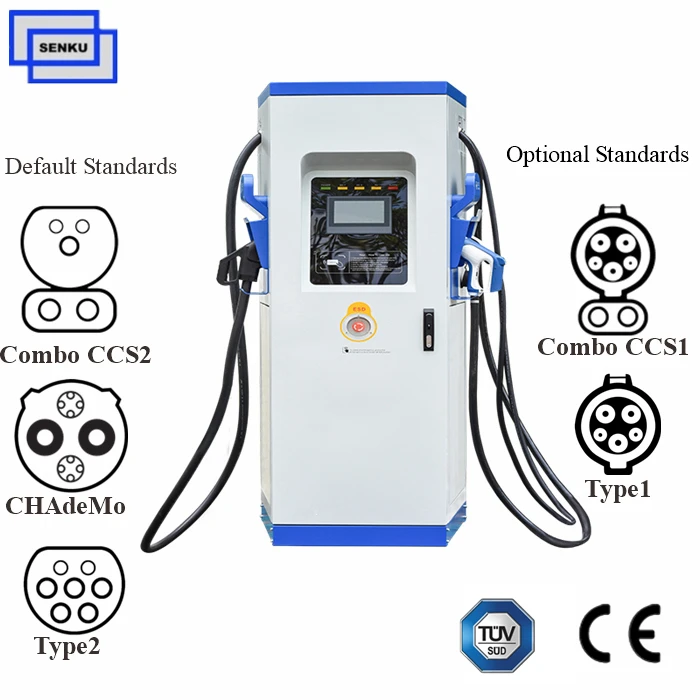

Structure Design	Connector Standard	Type1 /Type2 / CCS1 / CCS2 / CHAdeMo option
	Charging Outlet Quantity	3 or 2 or 1 for Option (All the connector can charging at the same time)
	Cable Length	4M cable
Communication	Network Method	Ethernet/ (3G/4G)
	Communication Protocol	CAN, PLC (DIN70121 and ISO15118)
		OCPP 1.6 JASON ( Charger with ocpp board inside)
Environmental Index	Operating Temperature	-20~+70°C, 5%~95% without condensation;<2000M
	Protection Grade	IP65/ IK10 (Indoor / Outdoor installation)
	Cooling Method	Fan cooling

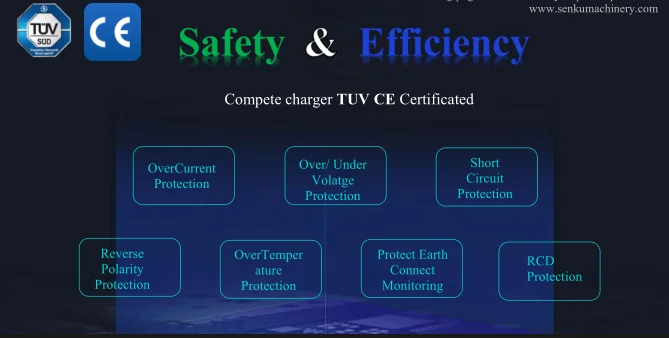

Security Protection	Multi le Protection	OverCurrent, Over/ Under Volatge, Short Circuit, Reverse Polarity, OverTemperature, Protect Earth Connect Monitoring, RCD Protections
	MTBF	100,000 hours
	Safety Standard	Comply TUV CE, EN 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014, IEC 61851-1:2017; IEC 61851-23:2014; IEC 61851-24:2014
Dimension	Dimension & Weight	7001750700 mm & 150KG (weight without charging module)
Note	Configuration	The charger MAX built in 8 units power module, easy Configuration 60kw to 160kw by adding or taking out power module

2. Main Feature

1- Ready for the Future

This ev charging station with 1000V DC ouput option. The 1000V option is able to charge electric vehicles with a battery voltage below 500 V and with battery voltage between 500V to 1000V.

This ev charging station system with modular design, which enables the operator to start today with lower power at lower cost and can easy change to high output by just adding or taking out the power modules.

2- Optimize investment cost

Save initial investment costs and start smart, by sharing capacity for three electric vehicles.

Free combination of different charging connector standards (CCS1 / CCS2 / CHADEMO / TYPE1 / TYPE2), Max 3 connectors charging at the same time.

Senku's Ultra Fast Charger (UFC) is maintenance-free and ensures continuous operation.

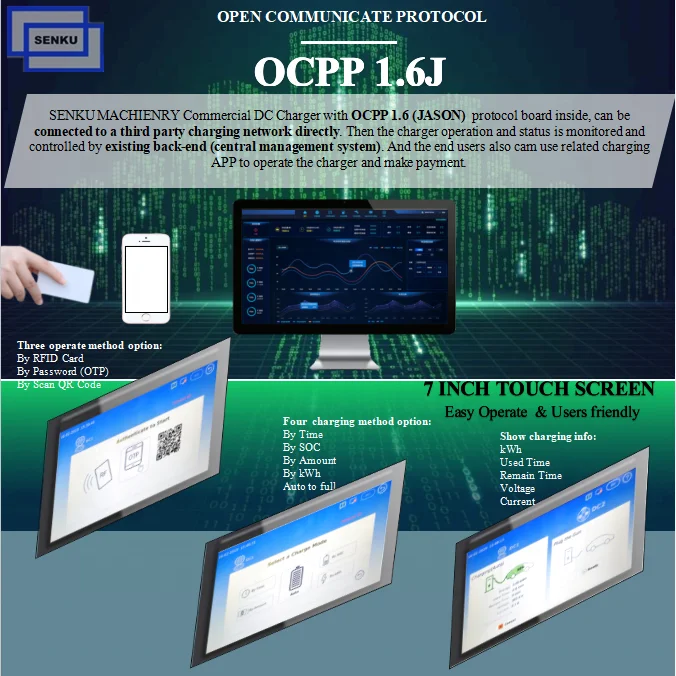

3-With Open Communicate Protocol OCPP 1.6
The ev charging station is compatible with the major charge point operator, e-mobility service provider and roaming platforms. Integration into existing backends can be realized due to the compliance with the open ev charging station protocol (OCPP). Connectivity is realized through Ethernet, 3G or 4G.

4- High Reliability

Pefect IP 65 waterproof and dust-proof design, efficient heat disipation,resistant to rain, snow, low temperature and high temperature, can stable operate in the -40℃ enviroment.

The complete charger passed the CE certificated. Safety standard EN 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014, IEC 61851-1:2017; IEC 61851-23:2014; IEC 61851-24:2014 are meeted.
