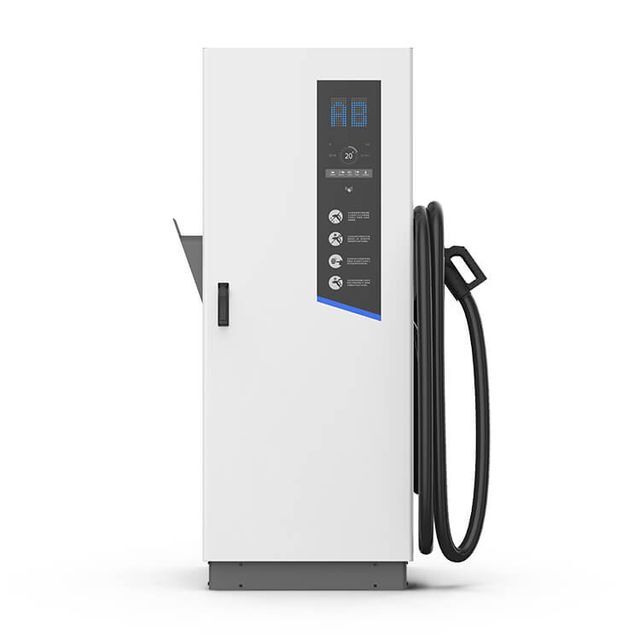

Cargador EV 60KW 80KW 120KW 160KW OCPP CCS 2 DC EV Quick charging point of electric car EV charging stations

Supplier: Guangzhou Kinouwell Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Mia Xia
Price: $8478.79 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	box + carton	Supply capacity:	1,000,000 pieces per day
Product Size:	700x550x1800mm(WDH)	Material:	Aluminum-zinc composite panel
Cable Specifications:	36MM²+10.75MM	waterproof level:	IP54
input power:	400VAC±15%/ 50/60Hz	payment method:	RFID card, APP
brand:	Keanuville	cable length:	5 meters (customized)
Rated current:	160A/120A	Flammability class:	UL94-V0
place of origin; place of origin:	Guangdong, China	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Human-computer interaction:	7 inch touch LCD screen	model:	PEVC3017E
port:	Guangzhou

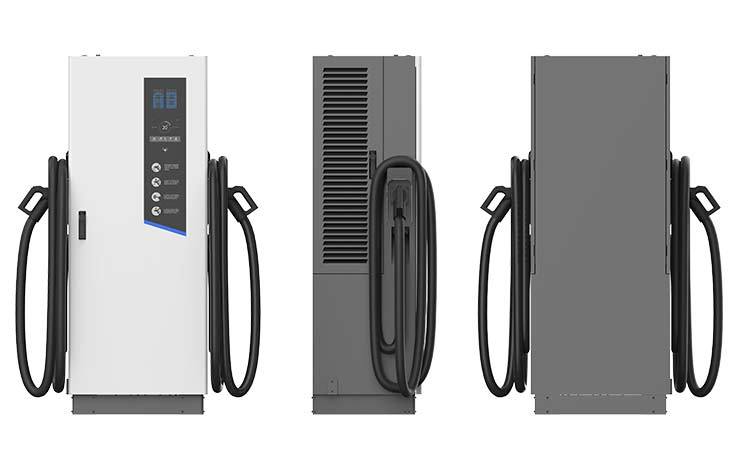

Fast DC Electric Vehicle Charger 120KW Electric Vehicle Charging Station

main feature:

Modular Design

Parallel modular layout, support hot swap of module components, flexible power combination, easy maintenance

Extreme heat dissipation

Application of isolated air duct technology to improve internal heat dissipation efficiency and ensure operation stability

Safety

With SOC overcharge protection, battery overcharge protection, BMS data abnormality diagnosis, vehicle battery voltage abnormality detection, leakage, lightning protection and other active protection functions

Product Description

KW-PEVC3107EIs a basic DC fast EV charger. Easy installation, stable performance and complete protection functions. The LCD screen can display the charging status, which is user-friendly. Support GSM/3G/4G/Ethernet communication, remote monitoring/maintenance/upgrade with Party system. The charger can optionally be equipped with a pole bracket for outdoor installation.

power supply	3P+N+PE
Rated voltage	400VAC±15%(50/60Hz)
THDi	≤5%
efficiency	≥95%
power factor	≥0.98
connector type	CCS Combo 2
The output voltage	150-1000VDC
Maximum output current	200ADC
Rated output power	120kW (max)/160kW (max)
Output Voltage Accuracy	≤0.5%
Output current accuracy	≤±5%

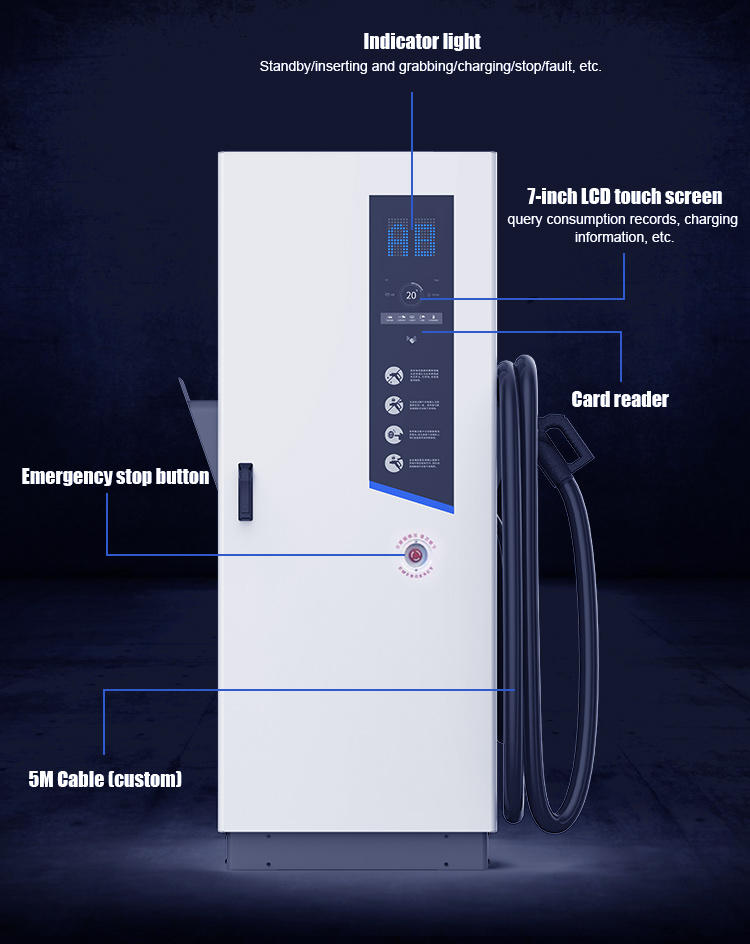

HMI	7 inch touch screen
payment method	RFID card, APP
cable length	5m
Internet connection	Cellular Modem: GSM/3G/4G LAN: 10/100 Base-T Ethernet
Protocol	OCPP 1.6J
working noise level	≤60dBA
Protection class (IP/IK class)	IP54
dynamometer	Accuracy Class 1 Energy Meter
shell	Galvanized steel

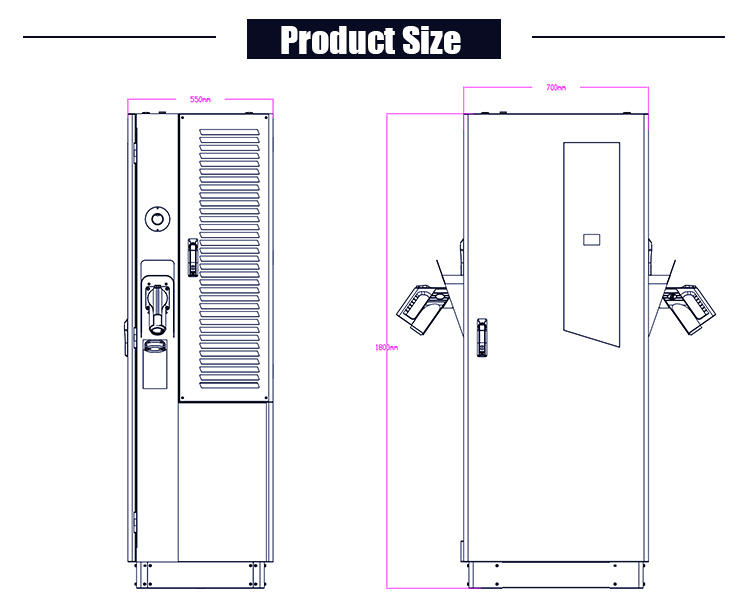

Product Size	700 x 550 x 1800mm (W x D x H)
Package dimensions	950 x 720 x 1950mm (W x D x H)
Protect	Over current, under voltage, over voltage, short circuit, residual current, surge protection, over temperature, grounding protection
Certification standards	EN/IEC 61851-1, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC62196-1, EN/IEC62196-3
Operating temperature	-35°C to +50°C
Storage temperature	-40°C to +75°C
Maximum installation height	≤2000m
Working humidity	5%–95% relative humidity
