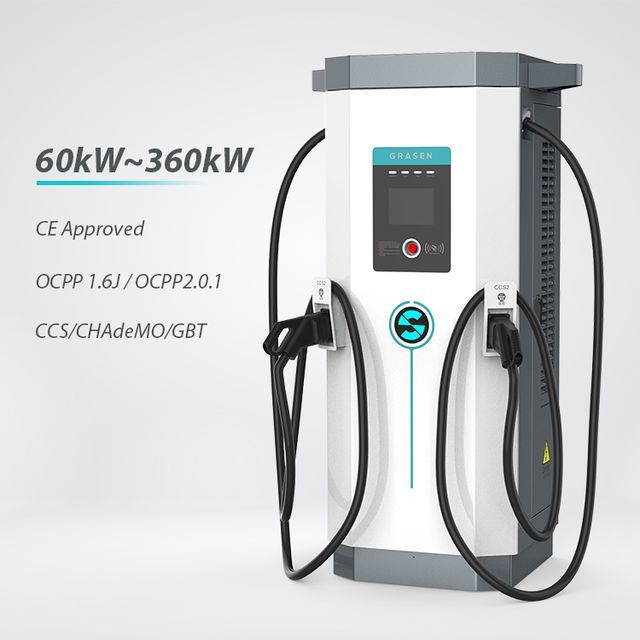

New Arrival120kW 150kW 200kW Electric Vehicle Fast Charging StationCCS2 DC Electric Vehicle Charging Station

Click here to contact

Product details

Output voltage:	200~750V DC	IP rating:	IP55
Operating temperature:	-30℃~+55℃	Supported languages:	English, Spanish or other language required
Output power:	＞100kW	Origin:	Henan, China
Input Rating:	Three-phase 400V±15% AC	efficiency:	≥95%
Payment Terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Certificate:	Passed TUV CE certification
Operating frequency:	45~65Hz	model:	GSCS750500A-T08
Output Current:	0~500A	Screen size:	8 Inch
Brand Name:	Glasson

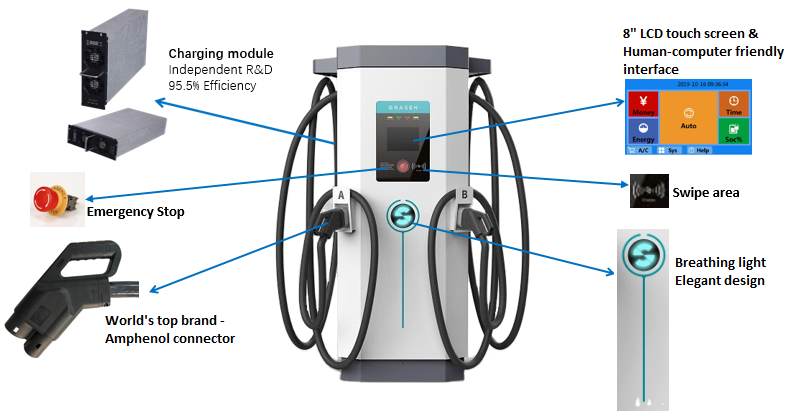

Product Description

Automatic charging, easy to use.

Passed TUV CE certification

High security and performance

introduce

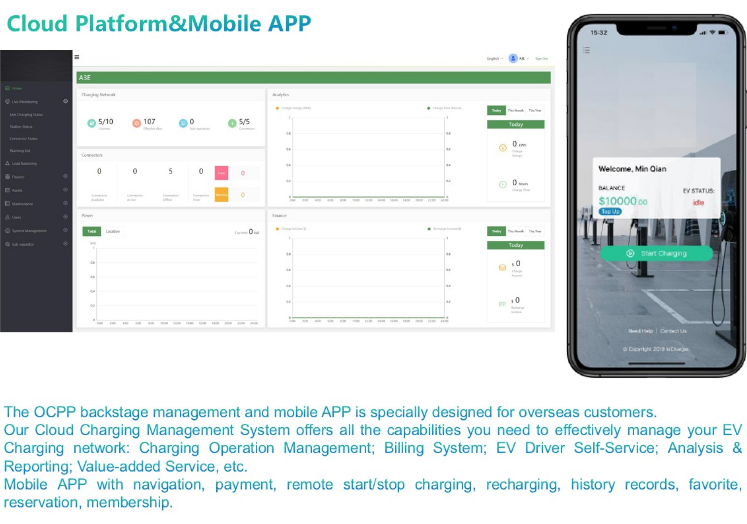

By integrating OCPP 1.6J, the charger can be easily connected to our cloud charging management system for easy operation, monitoring and maintenance.

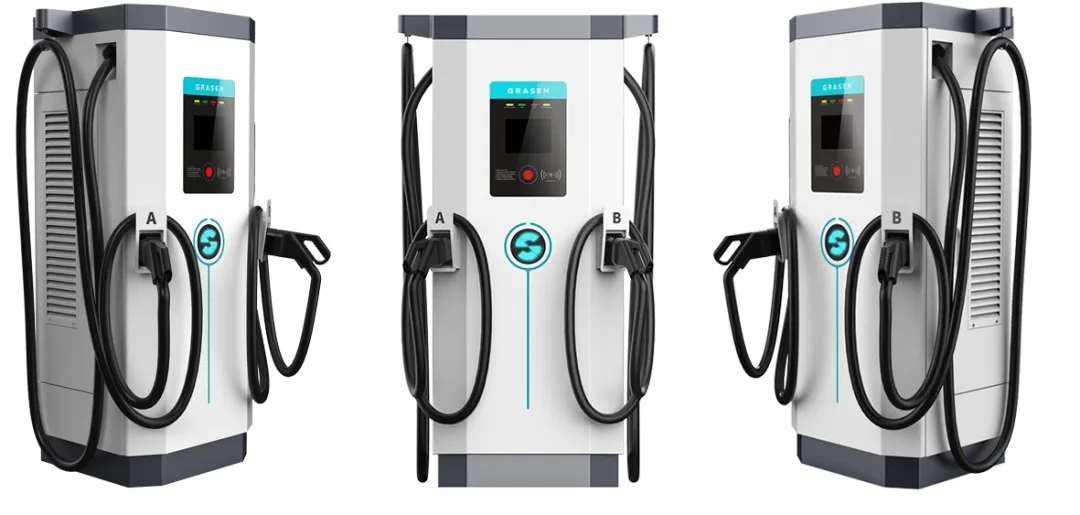

DC Fast Electric Vehicle Charging Stations

* Output power-200KW

* Connector - CCS2(Chademo/CCS1 optional)

* Network connection: 4G, Ethernet

* Support OCPP 1.6J

*TUV CE certification

* Applicable toPublic parking lots, bus stations, gas stations, highway service areas

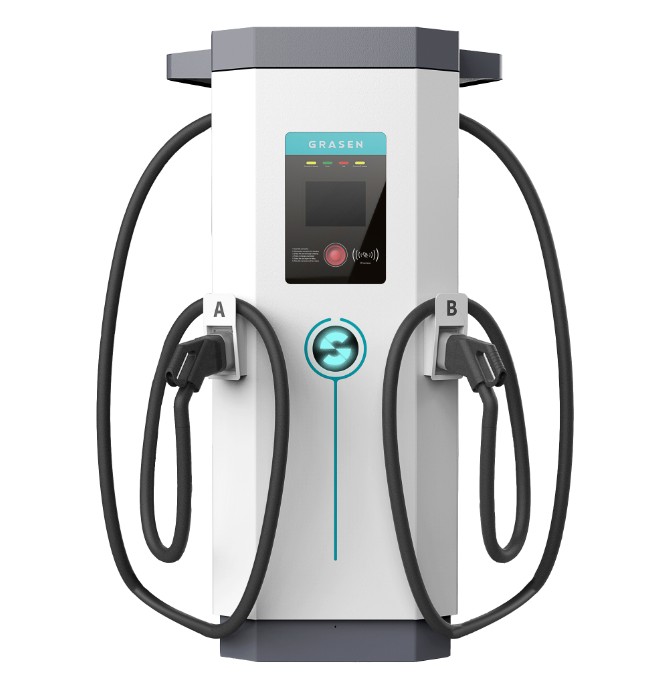

Product Introduction	type	DC charging station with two CCS-2 plugs
		describe	200kW DC charging pile	150kW DC charging pile
		Model	GSCS750500A-T08
		strength	200 kW
Electrical specifications	Input Rated Value	Three-phase 400V±15% AC
		Operating frequency	45~65Hz
		Output voltage	200~750V DC
		Output Current	5~500A
		Power Factor	0.99
		efficiency	≥95%
Functional design	Communication interface	4G, Ethernet
Functional design		Screen size	8”
Appearance and structure	Charging cable length	5m/7m
		Installation Type	Floor-standing type
		aspect	702mm1007mm1815mm
		weight	About 450 kg
Ambient temperature	IP Rating	IP55
		Cooling method	Air Cooling
		Operating temperature	-30℃～+55℃
		Storage temperature	-40℃～+70℃
Safety by design	Protection function	Overvoltage and overcurrent
Certificate	Certificate Number	50347817 001_Certificate/AN504631360001
		Reference Standards	DIN70121/ISO15118/IEC61851/SAEJ1772
		Certificate	Passed TUV CE certification
User Interface and Controls	Supported languages	English, Spanish or other language required
		Button	Emergency Stop
		User Authentication	RFID card reader, username and password, mobile phone number and postal code
