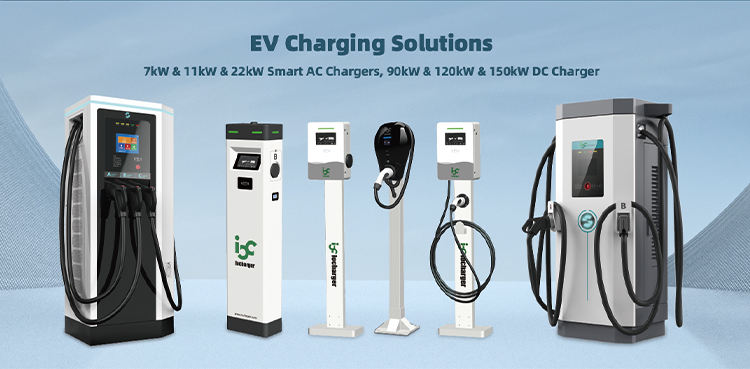

Manufacturers Iochager 60kW 90kW 120kW 150kW CHAdeMO CCS OCPP Smart DC ev fast car stations

Product details
Charging Mode:Auto or Manual;Place of Origin:Fujian;
DC Output current:250A;OCPP:OCPP 1.6J/ OCPP 2.0.1;
Package Preview:;Display:8'' TFT Touch Screen;
Protection:IP55;Supply Ability:1000 Sets per Month;
Packaging Detail:Wooden package;Certificate:IEC; CE; TUV;;
Brand Name:iocharger;DC Rated power:60/90/120/150KW;
Input Voltage:3-phase 260V-530V AC;Port:Xiamen Port,Shenzhen Port,Shanghai Port;
Model Number:IOC750150A-T08;DC Output voltage:100 - 750VDC;
Payment Terms:T/T;Multi-Standard:CCS, CHAdeMO;
Product Description

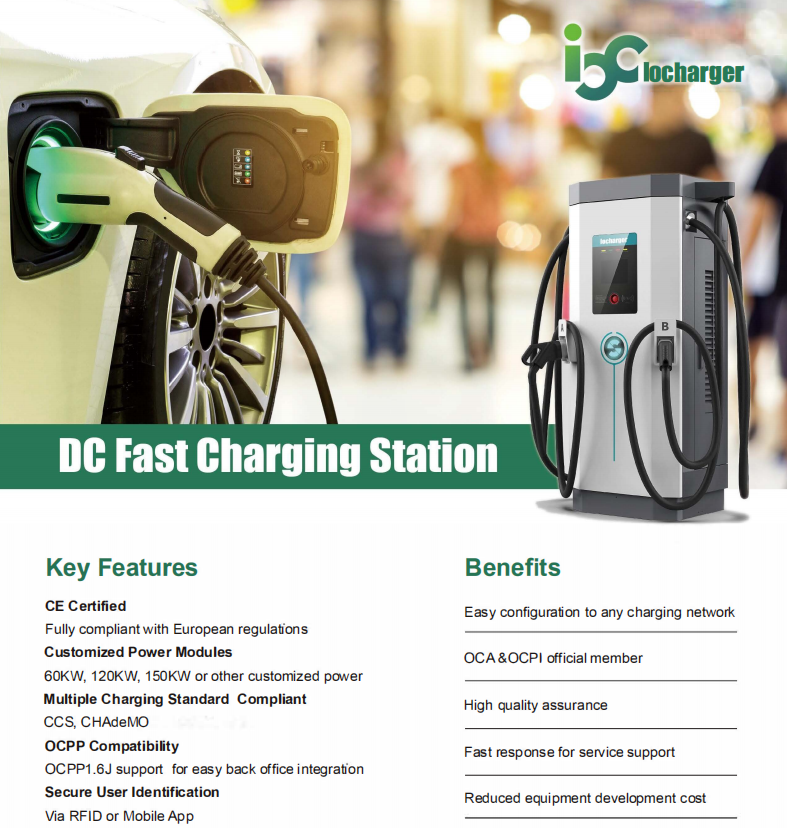

Manufacturers Iochager 60kW 90kW 120kW 150kW CHAdeMO CCS OCPP Smart DC ev fast car stations



Input Rating 3-phase 260V-530V AC, 50/60Hz
Power Factor >=0.99
Efficiency 0.955
Power Output 60KW/120KW/150KW
Output Voltage 150V-750V/150V-550V/150-1000VDC
Output Current 100A MAX/200A MAX/ 250A MAX
Electrical Protection Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning Surge, Over temperature
Display 8" TFT LCD touch screen
Supporting Language English, Spannish, or other required local language
User Authentication RFID card reader, user name & password, mobile No. & pin code
Push Buttons 3 Physical buttons for Multi-functional purpose, Emergency stop
Charge Options Charge by duration, by energy, by amount
Operating Temperature (-30't to +55't) in operation, (-40't to +75't) in storage
Working Humidity 95% relative humidity, non-condensing
Altitude Up to 6000 feet (2000 m)
IP Performance IP55
Cooling Forced air
Charging Cable Length 16.4 ft (5 m), straight cable
Dimension (H x W x D, mm) 1816*1007*640 mm
Net Weight 370KG/400KG/430KG
Network Interface Ethernet, 4G

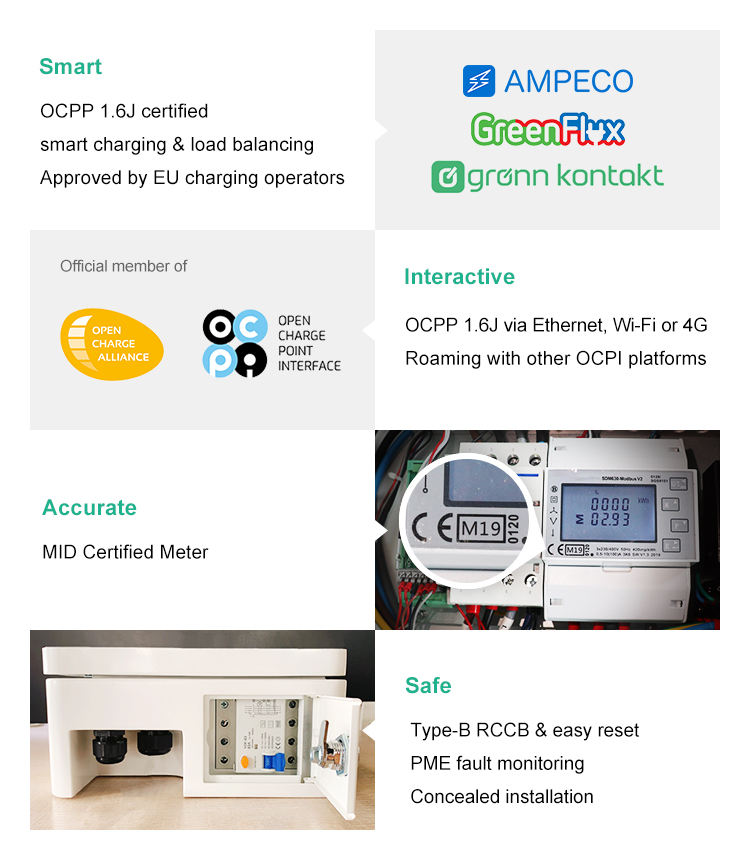

OCPP OCPP1.6J

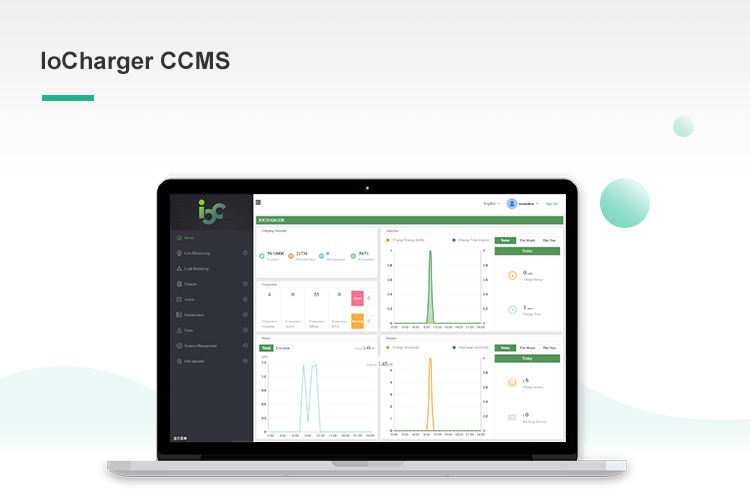

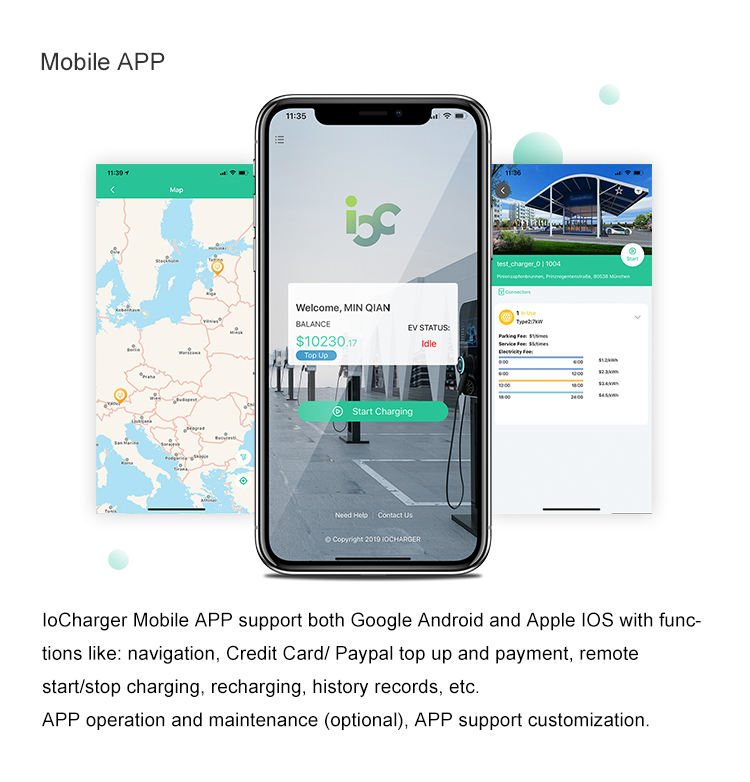

Web Portal & Mobile App Yes, ios/Android


Company Information



FAQ



Here are some customer’s common questions about our products :



Q1:Are you Trading Company or manufacturer?

A: We are professional design and manufacturer, our factory has been established for 7 years.



Q2:What are your main market?

A:Mostly Europe and America, then Asia.



Q3:How long time to make a sample?

A:3-7 days if we make a new sample for you.

If you just select our existing sample, we can send you sample the next day.



Q4:How long is the lead time:

A: The lead time is 7-30 days, it depends on the quantity and production scheduling.



Q5: How many kinds of payment?

A: We have T/T and L/C etc.

If you need the detailed terms of payment, pls contact us.



Q6: Why is new model expensive than other old models?

A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.



Q7: What certifications do you have?

A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc certification.



Q8: How long is the warranty time?

A: The warranty time is 2 years.



Our Service

1. We will reply you for your inquiry in 24 hours.

2. T/T and L/C etc payment terms all accepted.

3. Shipment:By air,By sea,By International express (DHL,Fedex,).

4. Guarantee Period: Within 24 months after shipment.

5. Provide operating guide (instruction).

6. Customized design,sample and packing according to clients requirements.
