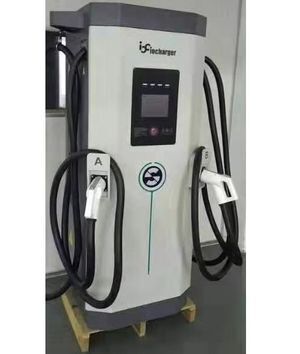

IoCharger 150kW OCPP Chademo CCS DC fast EV Charger Station with RFID and 4G LTE for EV Charging Station

Supplier: Xiamen Galaxy Camphol Technology Co., Ltd.
Region: Fujian, China
Contact: Mr MIN QIAN
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

DC Output Voltage:	100~1000V;	Certificate:	IEC; CE; ISO; ROHS;
Supply Ability:	100 Set/Sets per Month;	Protection:	IP54;
Brand Name:	Iocharger;	Warranty:	1 years;
Multi-Standard:	CCS, CHAdeMO;	Place of Origin:	Fujian China;
Package Preview:	;	OCPP:	OCPP1.6J/OCPP1.5S;
Input Voltage:	260~530V AC;	Port:	Xiamen Port,Shenzhen Port,Shanghai Port;
Payment Terms:	L/C,T/T;	Packaging Detail:	Wooden package;
Output Power:	DC 60/90/100/120/150KW;	Efficiency:	≥94%;

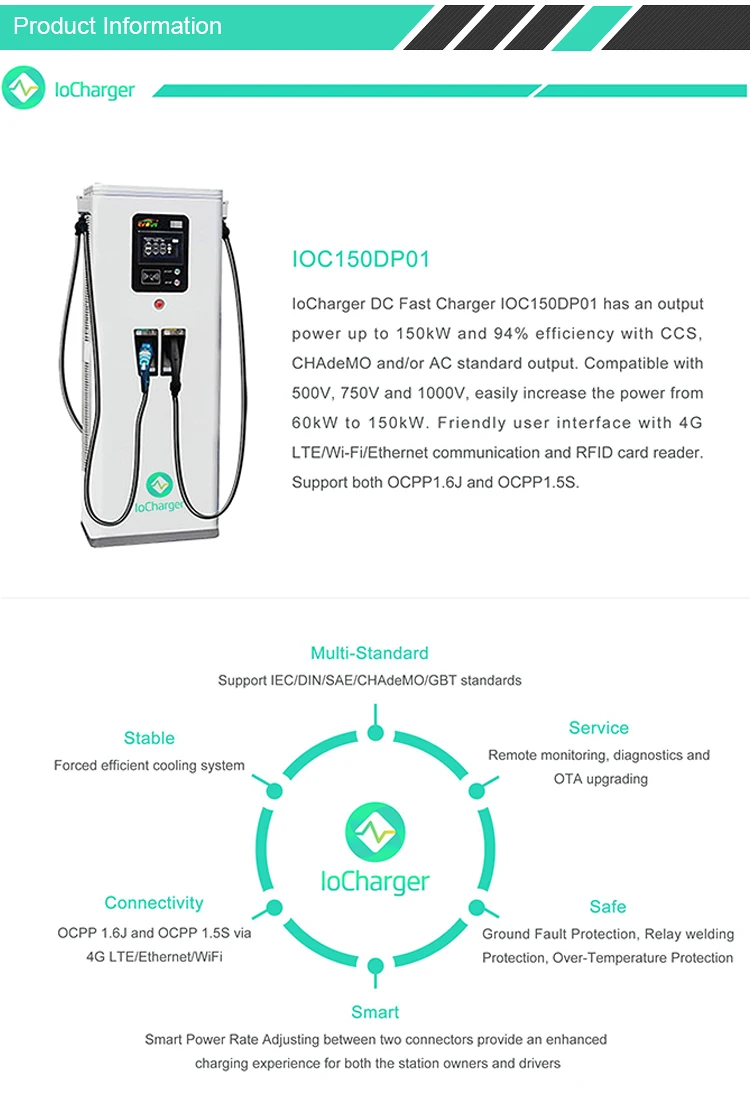

Model Number:	IOC150DP01;	Charging Mode:	Auto or Manual;

IoCharger is going to build a simple and smart EV charging network to connect operators, users and all the EV chargers together.

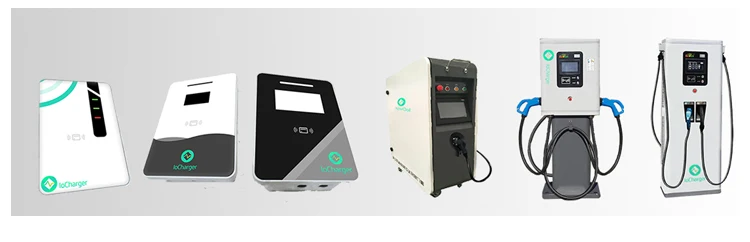

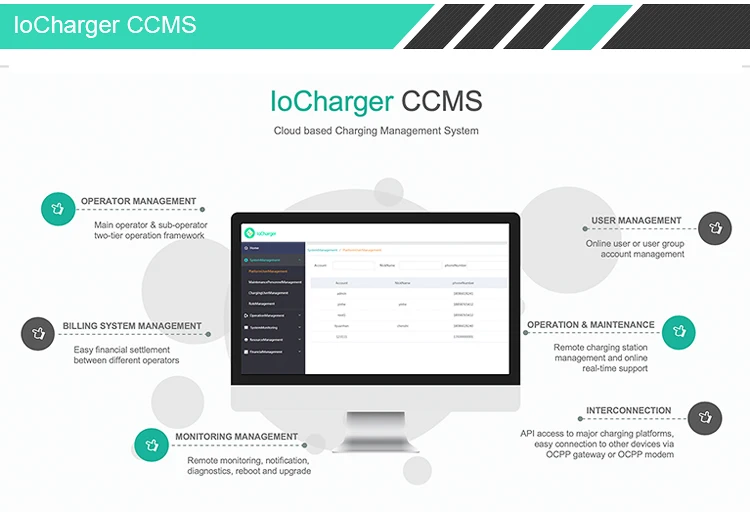

IoCharger offers a total solution from CCMS (Coud Charging Management System), smart AC Charger, fast DC charger, to OCPP Gateway, with reliable hardware & software design.

Multi-standard support: CCS, CHAdeMO, OCPP1.6J/OCPP1.5S

Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes

	Sepcification / Model	IOC150DP01
Power Input	Input Voltage	3-phase 260Vac-530Vac
	Input Frequency	50Hz/60Hz
	Power factor	≥0.99
Power Output	DC Rated power	60/90/100/120/150KW
	DC Output voltage	100 - 750VDC
	DC Output current	0 ~ 180A
	AC Output max current	32A
	Efficiency	≥94%
Environment	Operating Temperature	(-20℃ ~ +55℃)
	Storage Temperature	(-40℃ ~ +75℃)
	Humidity	< 95% relative humidity, non-condensing
	Altitude	Up to 2000m
User Interface	Display	8" Highlight TFT touch screen
	Support Language	English, Spanish( Other languages avaiable upon request)
	Push Buttons	3 Physical buttons for Multi-functional purpose
	Emergency Stop	RCD-B, E-Stop, AC leakage switch
	Charge Options	Charge by duration, by energy, by money, Auto full
	Authentication	Mirefare M1 RFID Username + Password Mobile Number + Pin Code
Protection	Protection	Ground Fault, Over Current, Over Voltage, Under Voltage, Residual Current, Surge protection, Short Circuit, Over temperature, Open Door Dectection, Insulation monitoring
Communication	CCS	DIN70121/ISO15118/IEC61851/SAEJ1772
	CHAdeMO	JEVS G104
	OCPP	OCPP1.6J/OCPP1.5S
	Network Interface	4G LTE/Wi-Fi/Ethernet
Mechanical	Ingress Protection	IP54
	Cooling	Forced air
	Mounting Type	Pedestal
	Dimension	10009601800mm
	Weight	460Kg

Here are some customer’s common questions about our products :

Q1:Are you Trading Company or manufacturer?

A: We are professional design and manufacturer, our factory has been established for 7 years.

Q2:What are your main market?

A:Mostly Europe and America, then Asia.

Q3:How long time to make a sample?

A:3-7 days if we make a new sample for you.

If you just select our existing sample, we can send you sample the next day.

Q4:How long is the lead time:

A: The lead time is 7-30 days, it depends on the quantity and production scheduling.

Q5: How many kinds of payment?

A: We have T/T and L/C etc.

If you need the detailed terms of payment, pls contact us.

Q6: Why is new model expensive than other old models?

A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.

Q7: What certifications do you have?

A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc certification.

Q8: How long is the warranty time?

A: The warranty time is 1 year.

Our Service

1. We will reply you for your inquiry in 24 hours.

2. T/T and L/C etc payment terms all accepted.

3. Shipment:By air,By sea,By International express (DHL,Fedex,).

4. Guarantee Period: Within 12 months after shipment.

5. Provide operating guide (instruction).

6. Customized design,sample and packing according to clients requirements.
