SENKU EN 61851 IEC 61851 CE Certificate Electric Car 100KW EV Charging Station

Product details
Key Words:Electric Car 100kw ev charging station;Rated Voltage:3-phase+N+PE; AC 400V±10% ; 50Hz±5%;
Model Number:Electric Car 100kw ev charging station;Brand Name:SENKU;
Output Parameter:100KW / 100A / 200V-1000V DC;Place of Origin:Chongqing China;
Package Preview:;Optional Output Power:45KW/60KW/75KW/80KW/90KW/100KW/105KW/120KW/140KW/160KW;
Supply Ability:500 Piece/Pieces per Month for 100kw ev charging station;Port:Shanghai , Ningbo;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Optional Output Voltage:150V - 550V DC / 150V - 1000V DC option;
Packaging Detail:standard oversea packing for 100kw ev charging station;Ingress Protection:IP54 / IP65;
Charging Interface:2;

SENKU EN 61851 IEC 61851  CE Certificate Electric Car 100KW EV Charging Station

The 100KW EV Charging Station meet the international charging standards for new energy vehicles. European standard interface, setting control, management, query, display and other functions, all in one device. The entire charging process is under intelligent control. Offering 150-1000V wide output voltage range. Intelligent dual plug power offers dynamic allocation allowing charging of two electric vehicles at the same time, as well as super fast charging for one vehicle with two plugs. Safe, reliable, efficient and convenient. Applicable for large electric bus stations, expressway service areas, electric car charging stations and other places. Suitable for all types of electric vehicles capable of DC fast charge.

 BASIC DATA



Electric Performance.

Charging Interface

CCS Combo-2 / CCS Combo-1 / CHADEMO

Line Voltage

AC 400V±10%; 3-phase+N+PE (250V -530V AC)

Frequency

50Hz±10%

Current THD Value

≤5%

Current Total Harmonic Distortion Rate

≥0.99

Output Current(A)

0~100A / 100KW

(45KW / 60KW / 75KW / 80KW / 90KW /

105KW / 120KW / 140KW / 160KW/ 180KW option)

Rated Output Voltage(V)

250-750V

(150V -550V DC / 150V -1000V DC option)

Voltage Regulation Accuracy

≤±0.5%

Steady Current Accuracy

≤±1%

Stabilized Voltage Precision

≤0.5%

Ripple Peak Factor

≤0.5%

OCPP

OCPP 1.6 / OCPP 2.0

Communication

Communication btween Charger & Vehicle: PLC /CAN

Communication btween charger & charger:Ethernet/3G/4G

Protection Grade

IP54

Cooling

Fan Cooling

Ambient Temperature

-20℃~50℃ normal; 50℃~75℃ derating output

Storage Temperature

-40℃ ~ +70℃

Humidity

5 ~ 95% no frost

Altitude

≤2000m

Noise

≤65dB

Protection

Over-voltage, under-voltage, overload, short circuit, earthing,

lightning protection, power outage, full automatic stop protection





Company Info

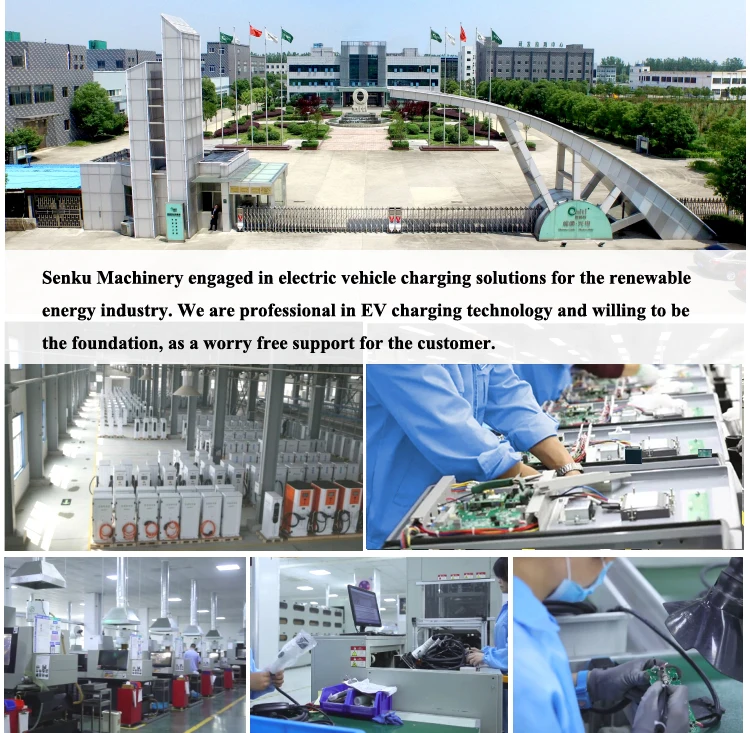

PRODUCTION PROCESS

PRODUCT ADVANTAGES



1)Ultra-fast charging
100KW fast charging, and can charging 2 EVs at the same time.

2)Wide output voltage range
The 100KW EV charging station with 150~1000V wide output voltage range, adaptive 12/24V auxiliary power supply, meet the charging requirements of most vehicles .

3)Optional charging modes
100KW EV charging station with dual connector, optional charging modes: one connector charging on 100% output, two connectors charging simultaneously with smart power distribution, cycle charging.

4)Higher reliability
IP54 design for harsh environment, both indoor and outdoor installation.
Perfect waterproof and dust-proof design, efficient heat dissipation, resistant to rain, snow, high or low temperature,stable operation in harsh environment.

5)Strong security
Multiple protections: auto power off, over charge protection and failure isolation, etc.





6)Friendly interface
Multi-language intelligent human-machine interface, easy to operate.

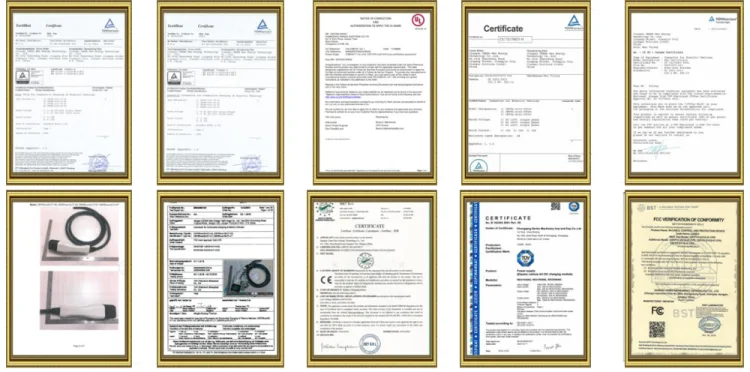

 7CE certified
Adopt European standard interface, TUV CE certified, safety and reliable.

8) Long service life
1 Year warranty and whole service life technical support.

During the warranty time, we provide comprehensive technical support.In normal conditions, we provide after-sales technical training by providing written training materials or videos, also we support online remote technical service. If there is a urgent situation, we will also send our professional technicians to provide local on-site support.

And we supply "One time purchase, lifetime service” , even the EV charger which you buy is out of warranty time, you also can contact us to get in time service support.



 OTHER EV CHARGING SOLUTION

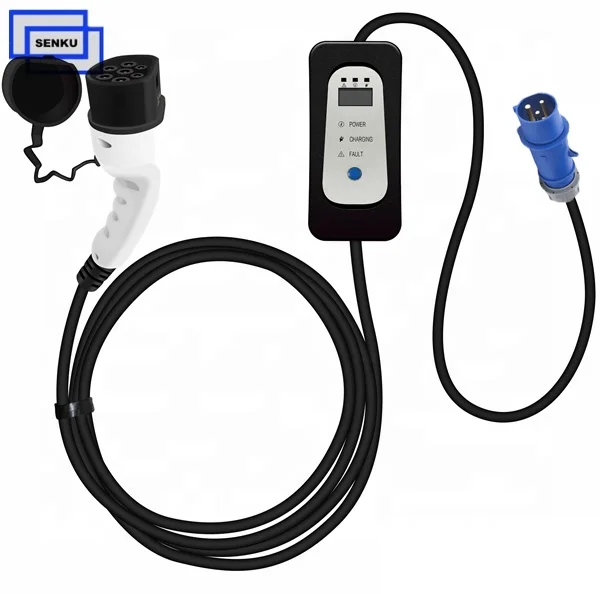

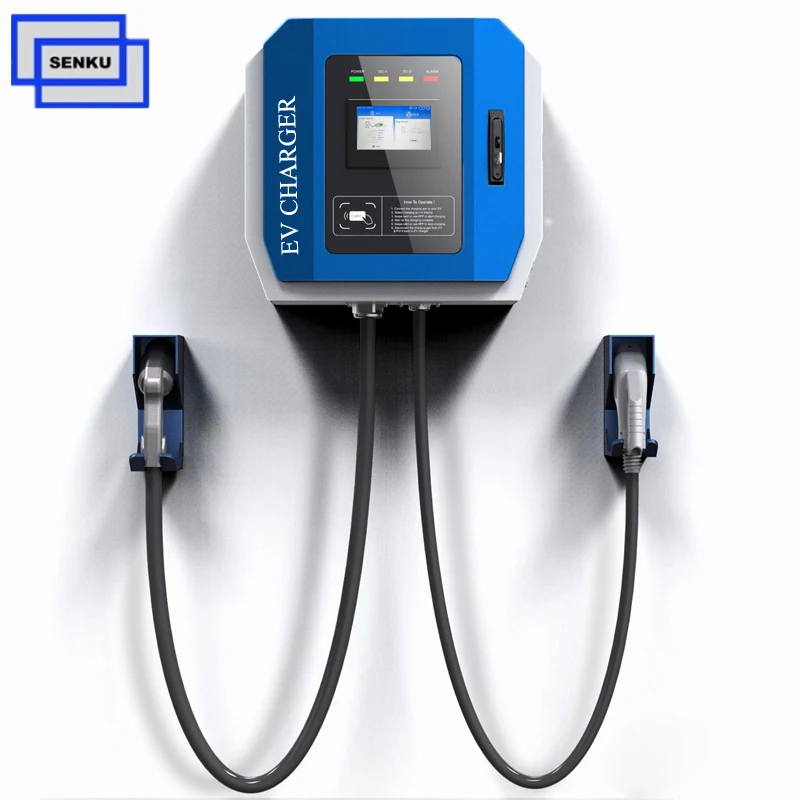

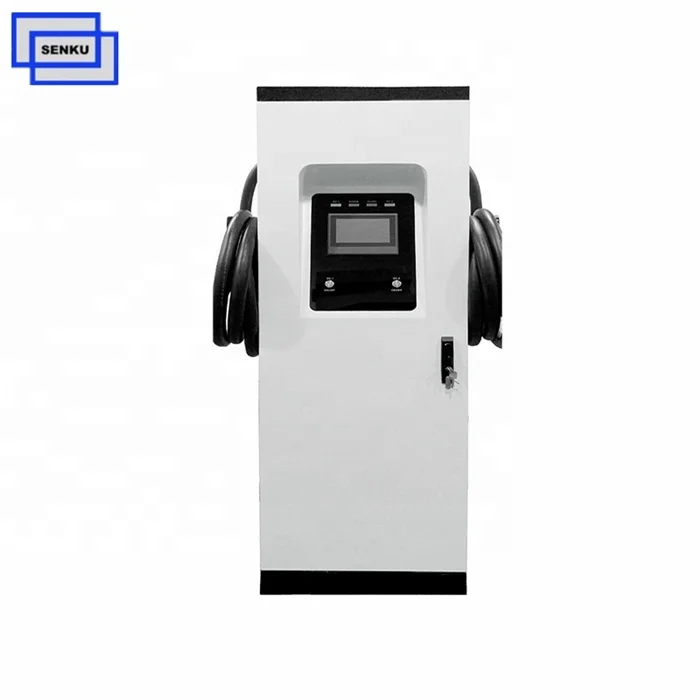

Portable EV Charging Solution          Commercial AC EV Charging Solution                    Commercial Wallbox DC EV Charging Solution

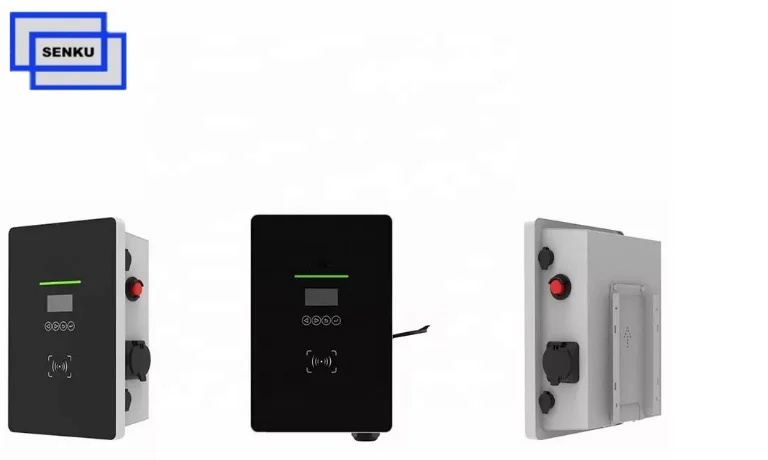

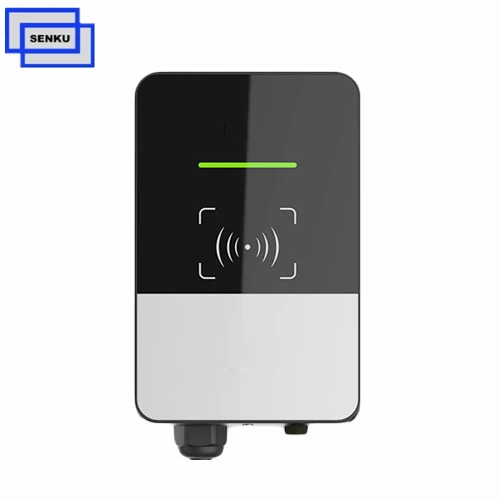

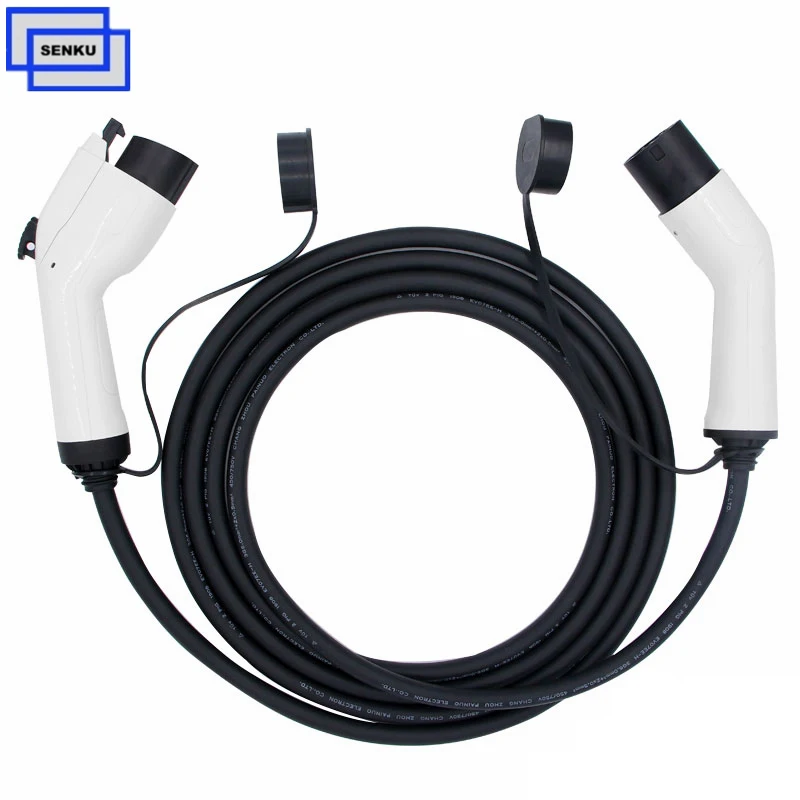

Home Wallbox EV Charging Solution       Type2 to Type1 EV Charging Solution             Type2 to Type2 EV Charging Solution
