Package Type: | Box package with Hot sell 2 phase 12N.M 4 axis stepper motor nema 34 kit for cnc router; | Phase: | 2; |
Name: | 3 axis micro stepping motor; | Certification: | CE,ISO,ROHS; |
Single package size: | 38.5X23.5X23.5 cm; | Application: | CNC Plasma Cutting Machine; |
Voltage: | 3.9V/4.8V/5.75V/6V/12V; | Place of Origin: | Jiangsu China; |
Brand Name: | DEWO; | Package Preview: | https://sc01.alicdn.com/kf/HTB1AN8yXLvsK1Rjy0Fiq6zwtXXak.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1hoRuXFzsK1Rjy1Xbq6xOaFXas.jpg_640x640.jpg; |
Selling Units: | Single item; | Current / Phase: | 2A-3.5A; |
Shape: | Square; | Frame size: | 86mm*86mm; |
Model Number: | NEMA 34; | Key words: | cnc spindle motor; |
Single gross weight: | 15 KG; | Product name: | Hot sell 2 phase 12N.M 4 axis stepper motor nema 34 kit for cnc router; |
Type: | Hybrid; | Diameter: | 14mm; |
Length: | 156; | Weight: | 5.65KG; |

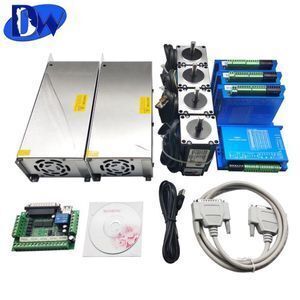

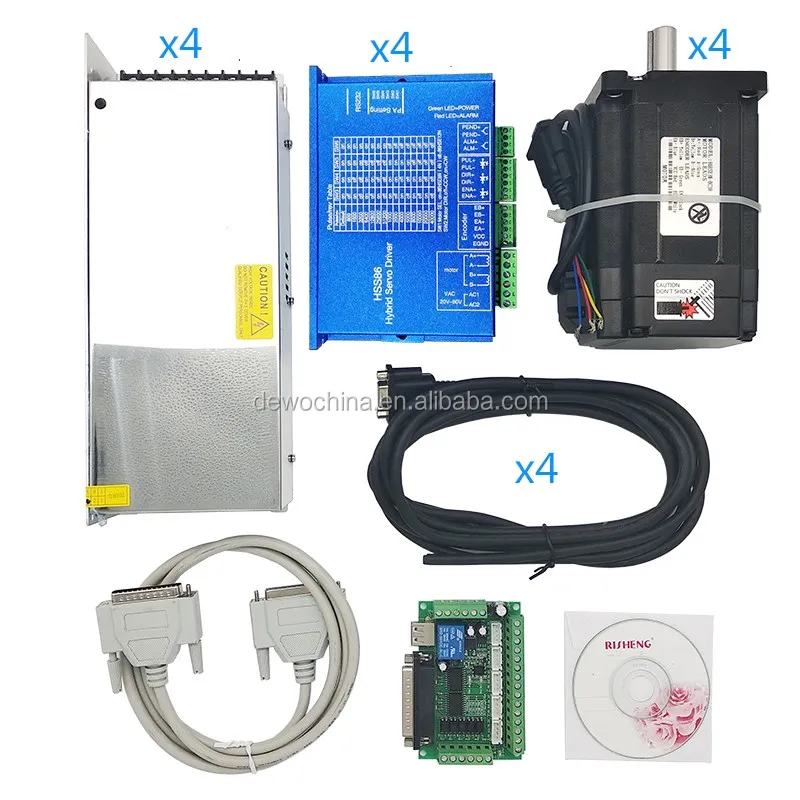

Hot sell 2 phase 12N.M 4 axis stepper motor nema 34 kit for cnc router
stepper motor electrical specifications:
Model No. | Step Angle | Current (A) | Resistance (Ω±10%) | Inductance (mH±20%) | Holding Torque (N.m) | Motor Length (mm) | Encoder Resolution (PPR) | Weight (Kg) |
86HSE4N-BC38 | 1.8° | 6.0 | 0.45 | 3.7 | 4.5 | 82 | 1000 | 2.65 |
86HSE8N-BC38 | 1.8° | 6.0 | 0.45 | 3.7 | 8.0 | 118 | 1000 | 4.0 |
86HSE12N-BC38 | 1.8° | 6.0 | 0.45 | 5.2 | 12.0 | 156 | 1000 | 5.65 |
stepper motor specifications:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃ Max |
Ambient Temperature | -20℃ Max ~ +50℃ |
Insulation Resistance | 100M ΩMin.,500VDC |
Dielectric Strength | 500VAC for 1 minute |
Shaft Radial Play | 0.02Max(450g-load) |
Shaft Axial Play | 0.08Max(450g-load) |
Max.Radial Force | 220N(20mm from the flange) |
Max.Axial Force | 60N |

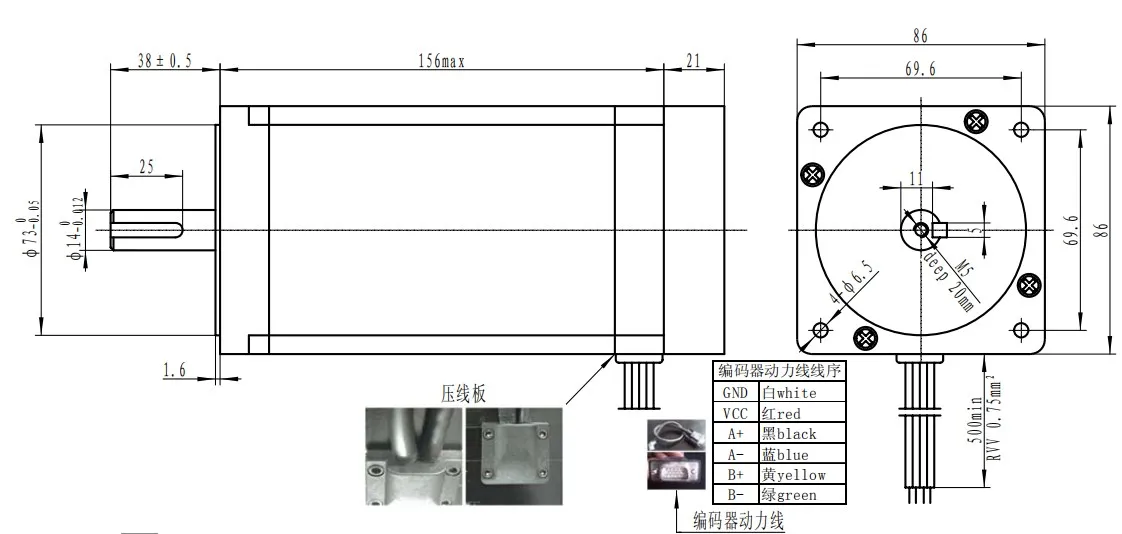

Dimensions:
Stepper motor driver features:
1.Position error correction and never lose steps.
2.Quick response and perfect acceleration,high torque at high speed.
3.Automatic current adjustment based on load,lower temperature rising.
4.Over-current,over-voltage and position ultra difference protection function.
5.Pulses response frequency can reach 200KHZ.
6.16 kinds microsteps choice,highest 51200 microsteps/rev.
7.Driver nema 34 series 4.5n.m,8n.m,12n.m closed loop stepper motor.
8.Voltage range:AC20V-80V,DC30V-110V
Microstep Selection:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |

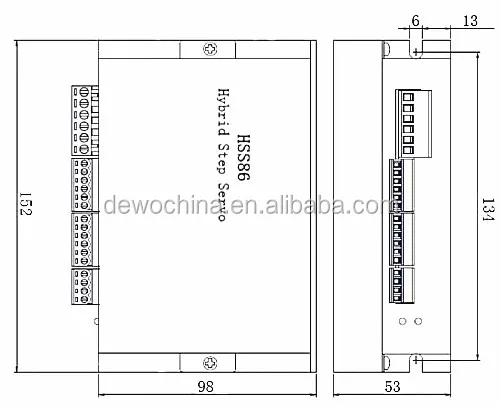

Stepper motor driver dimensions:
Products package:
Products shipping:
Products certificate:
FAQ:
Q:Where is your factory.
A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.
Q:How to choose the suitable stepper motor.
A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or you can sent us the model you are using We can help you to find the suitable stepper motor.
Q:When can I receive the drawings of the stepper motor.
A:We will provide the drawings of the stepper motor after you place the order.
Q:How long is the warranty time.
A:12 months And we provide life-long technical service and after sale service.
Q:How can we know the product quality?
A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get enough information in the product page.

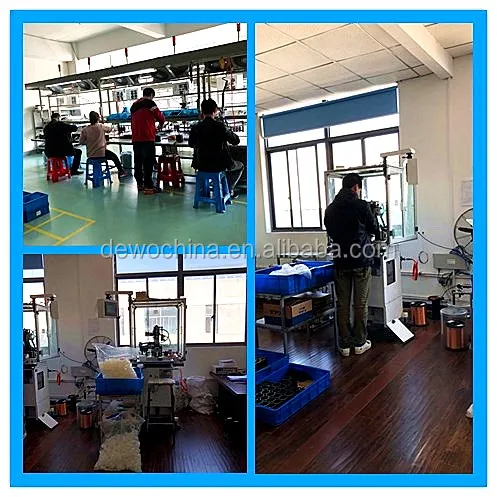

Company information:
Changzhou DEWO Mechatronics Co.Ltd.is a comprehensive company which specializes in producing and researching stepper motor and motor driver In addition We have two branches Changzhou Leicon technology CO.,Ltd and Changzhou Jinsanshi mechatronics Co.,Ltd.
Now we have an excellent group with rich experience in manufacturing and researching We can solve the actual using problems for customers Our products are highly commended by customers because of its easy operation Long using life Stable performance Low failure rate and high technical content
Our products are widely applied in engraving machine Cutting plotter Textile machine 3D printer Medical instruments Stage light equipment Robot CNC Music fountain And other industrial automatic eauipment
Our main products include from size NEMA 8 NEMA11 NEMA 14 NEMA 16 NEMA 17 NEMA 23 NEMA 24 NEMA 34 NEMA 42 NEMA 52 series hybrid stepper motor And variable sizes linear stepper motor Geared stepper motor Stepper motor with brake And we have products about easy servo system of NEMA 17 NEMA 23 NEMA 24 and NEMA 34 sizes In addition We can produce suitable drivers for all the motors And we are always researching and developing new products
We have passed ISO9001:2008 And have got the certification of CE On the way of development The principle of “Efficiency is the life Quality is the fundamental” is always insisted by DEWO people We take the market sa guidance Provide high quality products and good service to customers We are expecting the cooperation with more friends from home and aboard in the near frture.

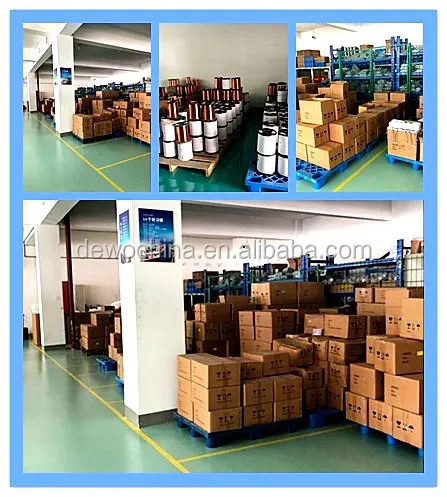

Company exhibition:
