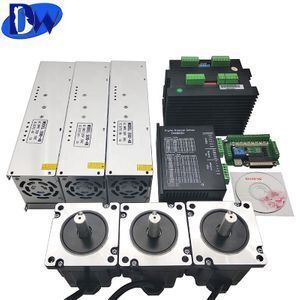

cnc stepper motor kit, nema 34 stepper motor 8.5N.m, 3 axis breakout board and driver

Supplier: Changzhou Dewo Motor Co., Ltd.
Region: Jiangsu, China
Contact: Ms Wendy wang
Price: $228.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

motor torque:	8.5N.m;	stepper motor:	86HS118-6004;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Port:	Shanghai;
Brand Name:	DEWO;	Supply Ability:	5000 Piece/Pieces per Day;
stepper motor driver:	DM860D;	Motor Type:	Stepper Motor;
Driver voltage:	24-80VDC or 20-60VAC;	Model Number:	3 axis nema34 cnc kits;
Place of Origin:	Jiangsu China (Mainland);	Driver current:	2.4-7.2A;
controller board:	3 axis mach3 controller board;	Packaging Detail:	standard export packing, cartons;

Product Description

Nema 34 stepper motor

Model No.	Step Angle (°)	Voltage /Phase (V)	Current /Phase (A)	Resistance /Phase (Ω)	Inductance Phase (mH)	Holding Torque (kg.cm)	Detent Torque (g.cm.Max)	Rotor Inertia (g.cm²)	Motor Length (mm)	Lead Wires No.	Motor Weight (kg)
86HS65-3004	1.8	3.3	3	1.1	6.5	28	800	1000	65	4	1.7
86HS68-4004	1.8	1.3	4	0.33	1.6	35	1000	1200	68	4	1.7
86HS78-4004	1.8	1.5	4	0.38	2.5	35	1200	1400	78	4	2.3
87HS78-4204	1.8	1.9	4.2	0.45	4	45	1200	1400	78	4	2.3
87HS78-6008	1.8	3.0	6	0.5	4	45	1200	1400	78	8	2.3
87HS82-4504	1.8	1.4	4.5	0.32	2.8	45	1300	1500	82	4	2.5
86HS82-5608	1.8	2.0	5.6	0.35	3	50	1300	1500	82	8	2.5
86HS100-5004	1.8	2.5	5	0.5	4	68	2000	2100	100	4	3.2
86HS100-5008	1.8	2.5	5	0.5	4	65	2000	2100	100	8	3.2
86HS118-6004	1.8	3.6	6	0.6	6	85	2400	2700	118	4	3.7
86HS118-5608	1.8	3.4	5.6	0.6	6	85	2400	2700	156	8	3.7
86HS156-5504	1.8	3.9	5.5	0.7	9	120	3600	4000	156	4	5.5
86HS156-6204	1.8	3.6	6.2	0.75	9	122	3600	4000	156	8	5.5

Dimensions: Wiring Diagram:

(Unit=mm)

L1 and L2 canbe customized according to customers' requirements.

Stepper drivers DM860D

3 Axis Mach3 Breakout Board

Power Supply

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirements.

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Our Services

First-class service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.

Our products:

A wide range of application:

Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
