Stable Quality Mini Self Return Spring Linear Potentiometer with 0-10v Output

Supplier: Dongguan Sop Mechanical And Electrical Co., Ltd.
Region: Guangdong, China
Contact: Ms Tina Liu
Price: $31.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Linearity:	± 0.1% FS;	Output signal:	DC 0-10V;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	300 Piece/Pieces per Day KTR Mini Self-return Linear Position Sensor;
Model Number:	KTR;	Resistance:	1K ~1M;
Repeatability:	0.01mm;	Lifetime:	Above 50*1,000,000 times;
Operating Temperature:	10 ~ +70;	Technology:	Metal Alloy;
Place of Origin:	Jiangxi China;	Type:	Spring Self-return;
Port:	Nanchang;	Brand Name:	SOP;
Type:	Slide Potentiometer;	Feature:	compact size;
Maximum working speed:	3m/s;	Resistance:	5k ohm;
Max. Operating Voltage:	AC 50V;	Resistance Tolerance:	10%;
Rated Power:	0.05W;	Protection rating:	IP 65;
Packaging Detail:	1 piece/box;	Stroke length:	100mm;

Mini Self-return Linear Position Sensor with 0-10v Output

Product Description

KTR Series Electrical / Mechanical Datas:

KTR Series	5	10	15	25	50	75	100	Unit
Strokes	5	10	15	25	50	75	100	mm
Electrical Stroke	5	10	15.5	25.5	50.5	75.5	101	mm
Resistance ±5%	2		5					KΩ
Linearity	1		0.5		0.25	0.15	0.1	± %
Mechanical Stroke	9	14	19	29.5	54.5	79.5	105	±2mm
Length (A)	43.5	48.5	53.3	78	93	118	143	±2mm
Resolution	infinite
Repeatability	0.01							mm
Displacement speed	≤3							m/s
Protection class	IP65
Lifetime	> 50 x 10⁶							cycles
Vibration	5~2000, A_max=0.75, a_max=20							Hz/mm/g
Working current	≤1							uA
Max Current	10							mA
Max Voltage	42							V
Input Voltage & Output Voltage Temperature Rate	5 (Typical)							ppm/K
Insulation Resistance	≥10 @ 500V, 1bar, 2s							MΩ
Insulation Intension	≤100 @ 500VDC,50Hz, 2s,1bar							uA
Temperature Range	-40 ~ 120							℃

KTR Series Sensor Features:

Spring self-recovery linear potentiometer
Stroke lengths available from 5 to 100 mm (0.2 to 4 inchs)
Mounting brackets included
High precision and repeatability
Protection class of IP65 (Dust tight, Water resistant)
Compact size, housing is only 18 mm x 18 mm
Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output

Detailed Images

KTR Series Sensor Drawing:

KTR Series Sensor Structure:

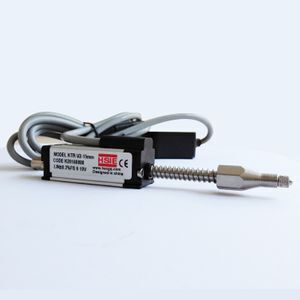

KTR Series Sensor Photos:

Product Package:

1 * KTR Mini Self-return Linear Position Sensor

Each unit is packed with a cylindrical or square box, custom package is acceptable if necessary.

Shipping Methods:

By express, such as DHL, UPS, FedEx...
By air
By sea

It depends on the cost, quantity of goods and delivery time you asked.

Installation display :

Why Choose Us:

Quality control; 100% QC inspection before shipment
Prompt reply; Any inquiry or question will be replied within 24 hours
Rapid production time; Goods will be shipped out within 7 working days
After-sale service; A professional team is always ready to solve your problems

FAQ

Q: Are you factory or trading company?

A: We are over 10 years factory, welcome to visit us.

Q: Can you offer sample for test before bulk order?

A: Yes, Sample is available.
