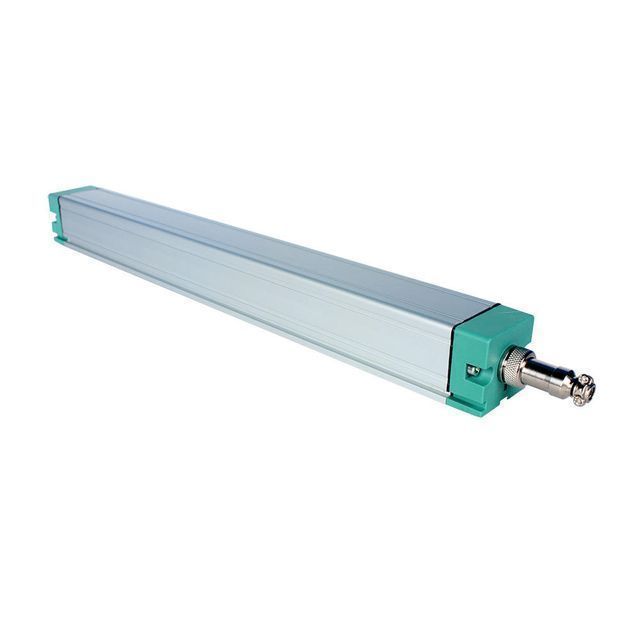

KTC linear encoder position sensor displacement sensor with aviation connector

Product details
power supply:12~24V DCusage:position sensor
accuracy:0.08% of full scaleoutput:simulation
Packaging Details:Packed in plastic film, then packed in paper tubes, then packed in cartons Custom packaging is availableOrigin:Jiangxi, China
Sales unit:single productproduct name:KTC Linear Displacement Transducer with Aviation Connector
Gross weight per piece:1.000 kgElectrical connections:Aviation connector
Measuring range:0...200mmPackage preview:
Building materials:aluminum alloymodel:KTC-R-200
theory:resistcolor:green
Protection class:IP65 max.output signal:0~5K ohms
brand:Standard operating procedurestype:Linear Displacement Sensor
Single package size:45X6X6 cmShaft material:Stainless steel

KTC linear encoder position sensor displacement sensor with aviation connector



Product Description



describe:

The SOP tie rod linear position sensor with conductive plastic element is designed for displacement or length measurement and is available in different stroke lengths up to 1250 mm. These sensors offer infinite resolution with a repeatability of 0.01mm and a linearity of up to 0.04%.

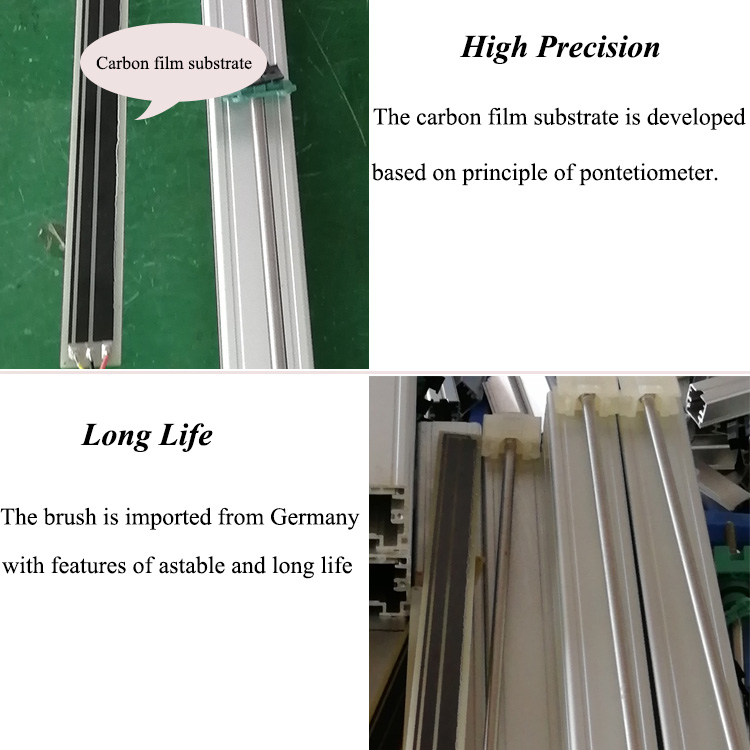

The KTC series features a solid stainless steel shaft and long bearings in the housing for strong, smooth operation and long life. Improved resistance track connection technology (double trimming technology) ensures higher reliability and linearity, while the multi-finger wiper can stabilize the output signal even under the worst working conditions.



application:

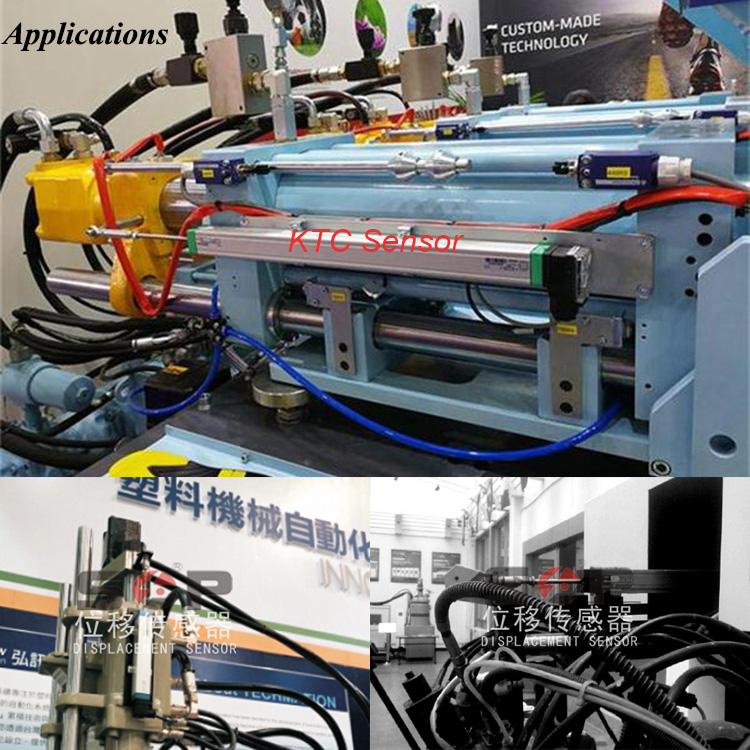

KTC series linear sensors are widely used in position or displacement measurement of various equipment such as injection molding machines, die-casting machines, rubber machinery, woodworking machinery, shoemaking machinery, and hydraulic machinery.



feature:

♦ Long service life;

♦ Anodized aluminum alloy casing

♦ Excellent performance and excellent linearity

♦ Running speed up to 10m/s

♦ IP65 protection level

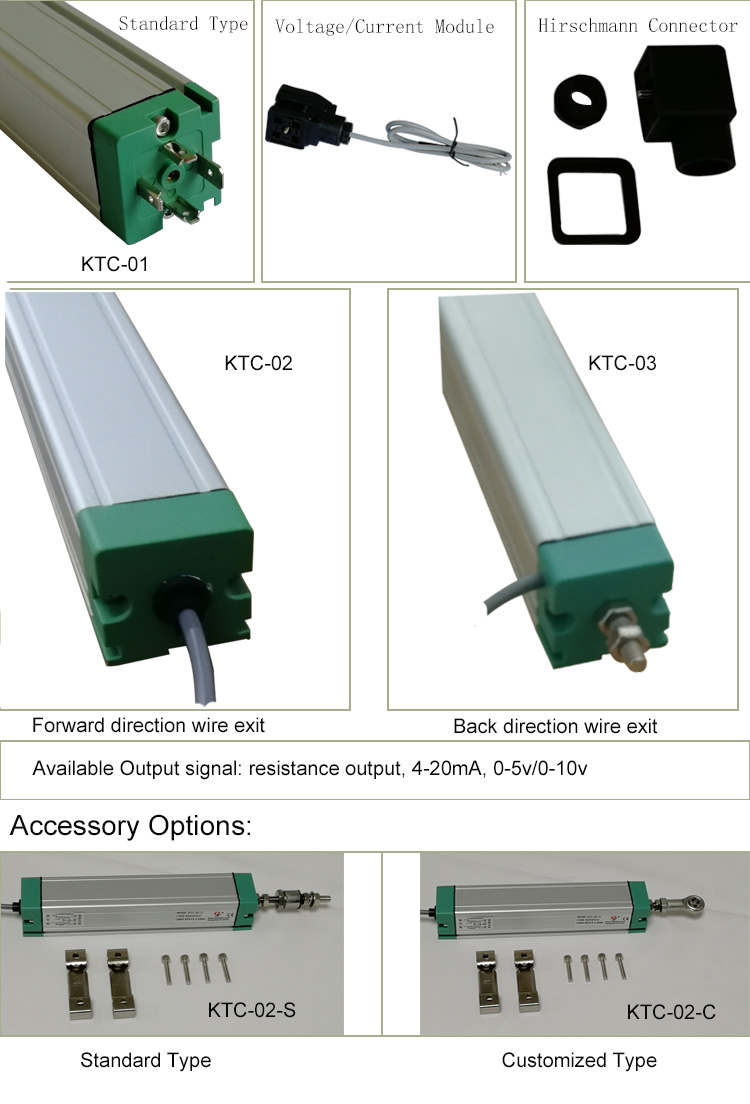

♦ Available with integrated signal converter with 4-20mA or 0-5VDC output



Parameters Table:

KTC series

200

strokes

200mm

electric shock

201.5mm

Resistance ±5%

5 kohms

Linearity

±0.08%

mechanical travel

208.5±2mm

Length (A)

267±2mm

solve

endless

repeatability

0.01

Speed ​​of work

≤10m/s

move

±5°angular deviation

degree of protection

IP65 DIN405000/IEC529 (Maximum)

life

> 20 × 106

vibration

5~2000, onemaximum=0.75, amaximum=20

Working current

≤1uA

Maximum current

10mA

maximum voltage

24V

Input voltage and output voltage temperature change rate

5 (typical) ppm/k

Insulation resistance

≥10@500V, 1bar, 2s

Dielectric strength

≤100@500VDC,50Hz,2s,1bar

temperature range

-40 ~ 120℃

Please contact us freely for more details.

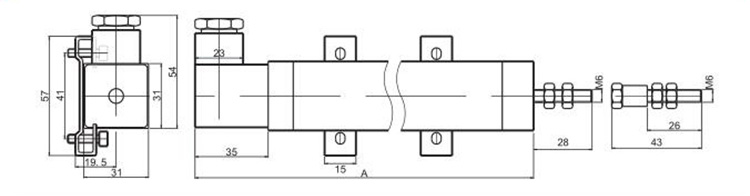

structure:



aspect:

product display
