Anysecu 4G LTE ZELLO /REAL with WIFI 7.0 W2 plus Car Radio Sim Card PTT Network Radio N60 Upgrade Version

Product details
Storage Channel:199;CPU:MT6737M Quad core processor 64bit;
Talk Range:no distance limited;USB:USB 2.0;
Platform Tested:RealPTT, Zello;Model Number:4GW2;
Brand Name:Anysecu;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAI;
Packaging Detail:export carton box;Talk Range:Talk Range Limitless in WCDMA/GSM Coverange;
Dimensions:170x80x85mm;RAM+ROM:1GB+8GB;
Frequency Range:See details;Working Voltage:DC 10-24V;
Type:Handheld;Bluetooth:Bluetooth 3.0HS;
Screen Size:4.5 inches, 480x320mm;Port:SHENZHEN;
OS:Android 7.0;Wifi:IEEE802.11 b/g/n;
Place of Origin:China;Supply Ability:1000 Piece/Pieces per Week;

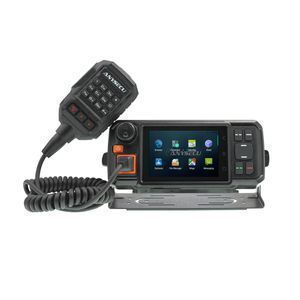

Anysecu 4G LTE ZELLO /REAL PTT with WIFI  7.0 4G-W2 plus Car Radio  Sim Card Network Radio 3G-W2 N60 Upgrade Version

In USA ,not work on Verizon, only AT&T or T-Mobile



Product Description

Safety Warning before use

Do not use the mobile radio in the explosive environments ( such as gas , dust , steam , etc . )

Please turn off the mobile radio : The machine can not be modified or adjusted for any reason.

Please don't let the mobile radio stand in sunlight directly for a long time , or put it near by the heating appliances.

Do not place mobile radio in extremely dusty ,moisture and water splashing places , and do not put in uneven surface.

Maintenance can only be carried out by professional and technical personnel , Please do not disassemble by oneself.

Input DC 10-24V, please Do not directly connect 220V/110V power supply, which may cause burn to the PCB



In USA ,not work on Verizon, only AT&T or T-Mobile



General Specification

CPU

MT6737M Quad core processor 64bit

RAM+ROM

1GB+8GB

OS

Android 7.0

Screen Size

4.5 inches, 480x320mm

Language

Multi languages

Frequency band

EU version

TDD-LTE: Band38/40/41

FDD-LTE: Band1/3/5/7/8/20

WCDMA: Band 1/2/5/8

GSM/GPRS/EDGE: Band2/3/5/8

US version

FDD-LTE:Band1/2/4/5/7/12/13/17/28a/28b

WCDMA: Band 1/2/4/5

GSM/GPRS/EDGE: Band2/5



+

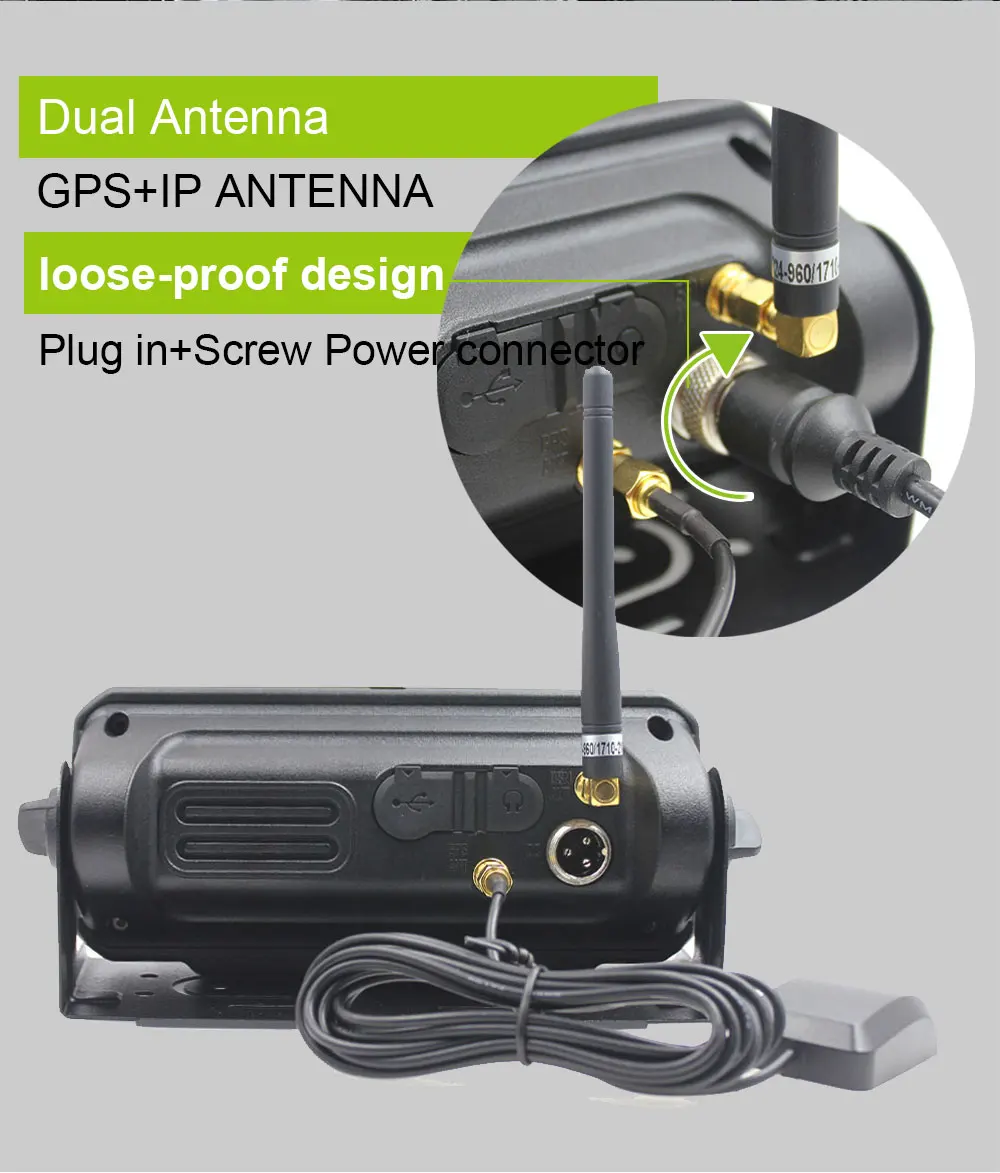

Antenna

1)WCDMA/GSM with external antenna
2)GPS antenna with external antenna
3) BT/WIFI antenna is built-in FPC antenna

Wifi

IEEE802.11 b/g/n

Bluetooth

Bluetooth 3.0HS

GPS

GPS/AGPS

USB

USB 2.0

SIM Type

Standard sim card

Dimension

170x80x85mm

Weight

380g

Working Voltage

DC 10-24V

Working Temperature

-30℃ to +75℃

Platform Tested

RealPTT, Zello

Talk Range

Limitless in WCDMA/GSM Coverange

RF Parameter

Maximum Output Power

WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm) GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm) GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)

Receiving Sensitivity

WCDMA 2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850: ≤-109dBm
GSM850/900/1800/1900: ≤-107dBm

GPS

GPS

GPS Positioning, Support A-GPS function,1.57542GHz;

Sensitivity

Catch -144dBm, Track -159dBm

Technical Sensitivity

Data Speed Rate

GSM CS: 9.6kpbs/ DL 9.6kpbs GPRS: Multi-slot Class 10
EDGE: Multi-slot Class 12
WCDMA CS:  64kpbs/ DL 64kpbs WCDMA PS: 384kpbs/ DL 394kpbs

Protocol

HSDPA/WCDMA/EDGE/GPRS/GSM

WIFI

WIFI

IEEE 802.11 b/g/n , 2.4G;

Maximum RF power

≤20dBm

Receiving Sensitivity

IEEE 802.11 g: ≤-65dBm;

Bluetooth

Bluetooth

Support V4.0,V3.0,V2.1

Maximum RF power

Class 1 ≤10dBm;

Receiving Sensitivity

GFSK:  ≤-95dBm,DQPSK:  ≤-94dBm , DPSK:  ≤-88dBm;
