Carbonated Soft Drink Beverage Mixer

Supplier: Zhangjiagang Mars Packing Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Eli Yao
Price: $4100.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training;	Supply Ability:	100 Set/Sets per Year;
Payment Terms:	L/C,T/T;	Power(W):	1.5Kw;
Packaging Detail:	Wooden case;	Processing Types:	Carbonated Beverage;
Port:	Shanghai;	Processing:	Mixer;
Voltage:	380V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	1000* 800*2000mm;	Warranty:	1 Year;
Type:	Drink Mixer;	Condition:	New;
Brand Name:	Mars;	Weight:	600Kg;
Place of Origin:	Jiangsu China (Mainland);	Certification:	CE;

Carbonated soft drink mixer for Carbonated drink filling line

Product Description:

Gas drink mixer for Carbonated drink filling line:mainly suitable for mixing process of all kinds of carbonic acid drink. High quality easy operation.

Features:
1. Fine material: The parts which contact the liquid are all made of fine low carbon stainless steel in accordance with the requirement of food sanitation, inside and outside are all polished
2. Automation with alarm: The pressure in tanks and the liquid levels are all controlled automatically with PLC. Once a error occurs, the alarm lamp will light and the alarm will ring, then the mixer will stop automatically.
3. Easy operation and regulation: The operation of the mixer is especially convenient. Only turning around the buttons according to the pre-set program, then the normal operation can be achieved. The production capacity, water-syrup proportion and CO2 content can be adjusted without changing any parts.
4. Even mixing and accurate proportion: The mixture is even because of one time mixing process is adopted, the proportion of water and syrup is strictly controlled with measuring needle valve with fine regulation, the precision can reach around 0.5%.
5. Enough gas content: The mixer adopts vacuum desoxidation technology at normal temperature; The desoxidation ratio reaches above 90%. It also has a plate heat exchanger to cool the syrup-water mixture and achieves twice carbonation, in that way the CO2 content is especially high.
6. High cleaning: The mixer fixes CIP process with reasonable structure, so it is easy to clean and disinfect the mixer without disassembling any parts which meets with requirement of food hygiene law. The reproductive rate of bacteria per ml is lower than 5%, and there are no bacillus coli in beverage.

Welcome to visit our factory for further study.

Model	QHS-1500	QHS-2500	QHS-3000	QHS-5000
Production Capacity(kg/h)	1000-1500	2000-2500	3000-3500	5000-5500
Mixing production scale (water: sugar)	3: 1-6: 1	3: 1-6: 1	3: 1-6: 1	3: 1-6: 1
Content of carbon dioxide	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5
Mixing temperature	< 5	< 5	< 5	< 5
power consumption (kw)	1.5	2.97	3	5
Overall Size(mm)	1000× 800× 2000	1500× 1000× 1900	1700× 1000× 2200	2000× 1500× 3000

The beverage mixer adopts advanced gas-liquid mixing device, can mix syrup, water and CO2 gas at the same time for filling machine. Also it can apply to thin beer, aerate for beer and produce sparkling wine.

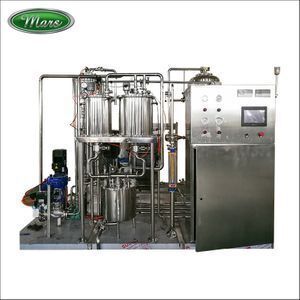

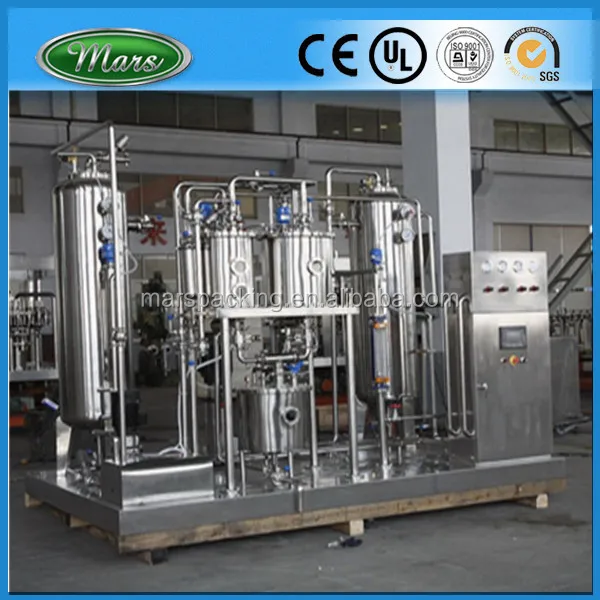

Product show
