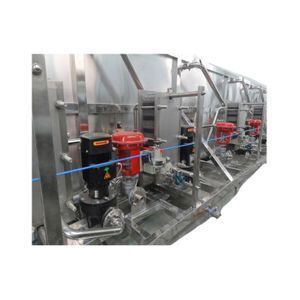

Beer Cans Tunnel Pasteurizer

Supplier: Zhangjiagang Mars Packing Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Eli Yao
Price: $20000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	Wooden case,beer tunnel pasteurizer;
Place of Origin:	Jiangsu China;	Applicable Industries:	Food & Beverage Factory;
Power:	6.6Kw;	Packaging Material:	Glass;
Type:	Beer Cans Tunnel Pasteurizer;	Payment Terms:	L/C,T/T;
After-sales Service Provided:	Field installation, commissioning and training;	Supply Ability:	100 Piece/Pieces per Year;
Port:	Shanghai;	Warranty:	12 Months;
Brand Name:	Mars;	Application:	Beverage;
Condition:	New;	Voltage:	380V;
Dimension(LWH):	600012001800mm;	Power(W):	13kw;
Certification:	CE;	Driven Type:	Electric;
Packaging Type:	Bottles;	Automatic Grade:	Automatic;
Weight:	5000Kg;	Condition:	New;

Beer Cans Tunnel Pasteurizer

The filling temperatuer of carbonated drink is 0-4 celcius degree, and the environment temperature is 20-30 degree, so the filled bottles will be full of water drops if they are not warmed, the bottle warming machine warms the bottles by spraying warm water from the nozzles to the outside walls of PET bottles to keep the bottles warm and away from water drops, and and make it convinent for labelling.

Features:

1)The chain plate apply anti-friction and high temperature resistance engineering plastic.

2) Apply advanced PLC controller to assure all action precision.

3)The conveyor is frequency controlled.

4)All spray tubes are made of stainless steel and spray evenly.

5)All spray nozzles are made of engineering plastic.

6)The catchment flume is made of stainless steel and equipped with a level alarm device.

7)The spray-cooling tunnel has a spray cooling recycling water pump.

Main Technical parameters
Model	PLS-3000	PLS-6000	PLS-10000
Capacity(b/h)	2000-3000	4000-6000	8000-10000
Bottle inlet temperature()	5-10
Bottle outlet temperature()	<45
Sterilizing temperature()	62-63/85-92
Sterilizing time(min)	10( Adjustable)
Steam pressure(MPa)	0.5-0.6
Width of chain (m)	1.22	1.5	1.5
Circling water(m³/h)	10	20	40
Water consumption(m³/h)	1	1.5	2
Steam consumption (kg/h)	200	350	600
Overall dimension (mm)	800015001850	1100018001850	1560018001850
Weight (kg)	4800	7200	9600
