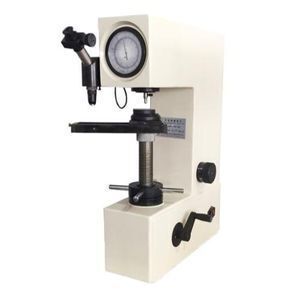

HBRV-187.5 Brinell Rockwell Hardness Tester /Universal Hardness Tester

Supplier: Shanghai Jimin Test Instrument Co., Ltd.
Region: Shanghai, China
Price: $999.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Single gross weight:	97 KG;	Brand Name:	JMTT;
Hardness Scale:	HRB;	Display:	Digital;

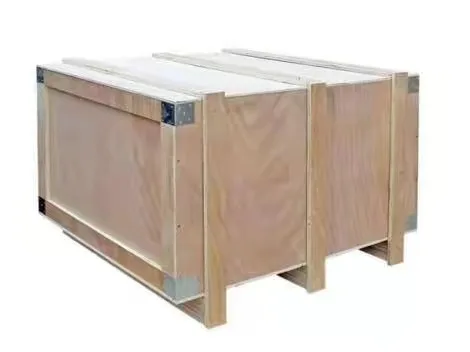

Warranty:	24 Months;	Package Type:	WOODEN CASES;
Testing range:	20-88 HRA, 20-70HRC, 20-100HRB;	Package Preview:	https://sc01.alicdn.com/kf/HTB1LWJjeUuF3KVjSZK9q6zVtXXaf.jpg_640x640.jpg;
Quality Standard:	Standard ASTM B647-84(2000);	Model Number:	HBRV-187.5;
Single package size:	48X18X66 cm;	Testing force(gf):	60kgf(588N) 100kgf(980N) 150kgf(1471N);
Product Name:	Rockwell Hardness Tester;	Selling Units:	Single item;
Supply Ability:	100 pieces per month;	Material:	Cast Steel;
Place of Origin:	Shanghai China;	Measuring range:	HRB;

Product Description

Main Function:

HBRV-187.5 Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic system, widely used and easy to operate, therefore it is the popular machine for industrial enterprises and scientific research institutes.

Application range:

Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.

Technical Specification:

Model	HBRV-187.5
Rockwell Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force	30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force	30kgf (294.2N), 100kgf (980.7N)
Indenter	Diamond Rockwell Indenter, Diamond Vickers Indenter, Φ1.588mm, Φ2.5mm, Φ5mmBall Indenter
Hardness Reading	Rockwell: Dial, Brinell & Vickers: Check Hardness Table
Magnification	Brinell: 37.5×, Vickers: 75×
Min. Measuring Unit	Brinell: 4μm, Vickers: 2μm
Hardness Resolution	Rockwell: 0.5HR, Brinell & Vickers: Check Hardness Table
Max. Sample Height	Rockwell: 185mm, Brinell: 145mm, Vickers: 145mm
Throat Depth	140mm
Execute Standard	ISO 6508,ASTM E18,JIS Z2245,GB/T 230.2 ISO 6506,ASTM E10,JIS Z2243,GB/T 231.2 ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
