Flammability: | VW-1; | Brand Name: | TONY; |
Application: | High Temperature; | Packaging Detail: | 50m/roll,100m/roll; |
Cutting tool: | cutting machine; scissors; | Material: | Fiberglass; |
Product name: | Fiberglass Sleeving; | Tensile Strength: | Excellent; |
Breakdown voltage: | 700V; | Place of Origin: | China; |
Standard color: | White/Black; | Payment Terms: | T/T,Western Union,Paypal/Trade Assurance; |
Packing: | 100m/roll; 50m/roll; | Size: | 3.00mm~30mm; |
Operating Temperature: | 600℃; | Port: | Shenzhen; |
Model Number: | MDWG-003~MDWG-030; | Type: | Insulation Sleeving; |
Supply Ability: | 500000 Meter/Meters per Month; | Rated Voltage: | 700V; |
Usage: | High temperature; low voltage; | Standard: | RoHS; |

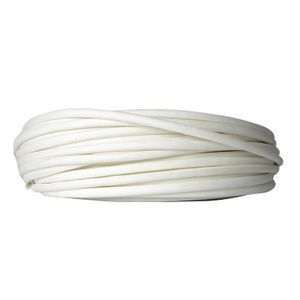

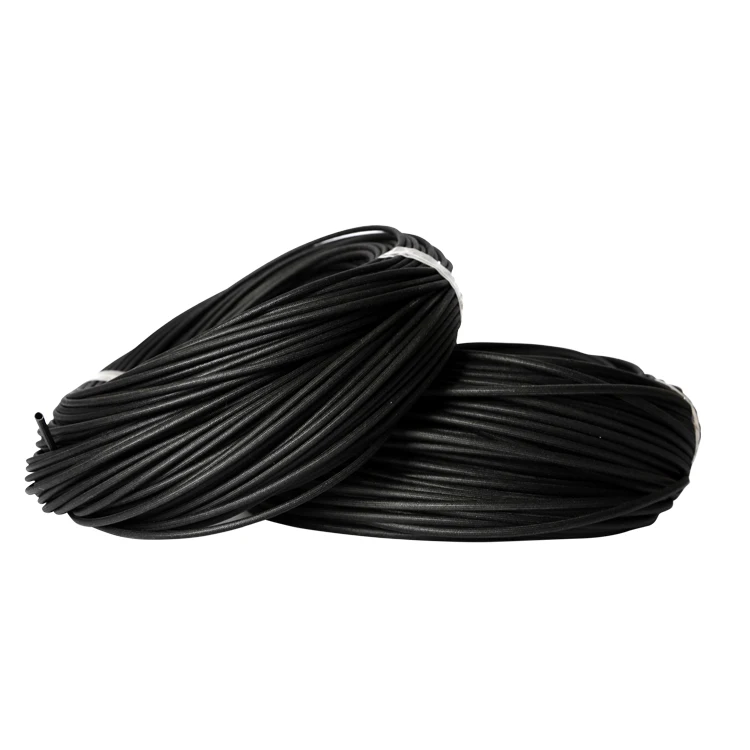

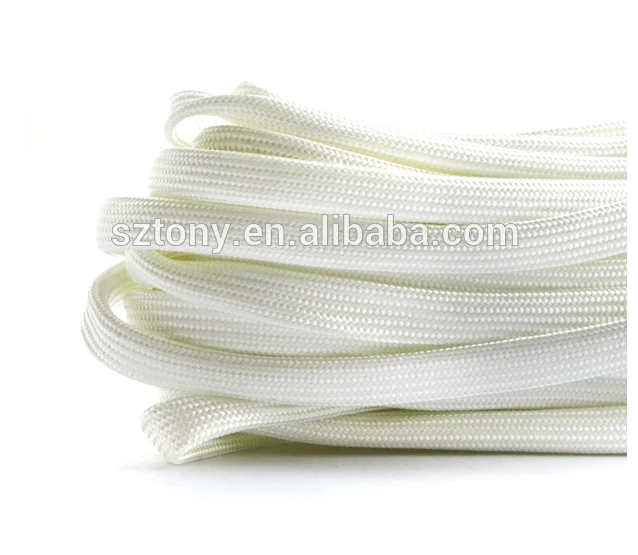

600 degrees High Temperature Heat Treated Fiberglass Sleeve
Description:
Heat treated fiberglass sleeving is a good solution for where has high requirement for extreme temperature,
but low voltage levels.
Its flexibility and expand ability makes it easily to over irregular shapes. It also provides abrasion and flame resistance.
Application:
This kind of fiberglass sleeving is widely used in heating components , carbon brushes, toasters,coffee-makers etc.
Technical data:
Material | Fiberglass |
Operating range | 600°C |
Breakdown voltage | 700V |
Flammability | VW-1 |
Standard color | White, black |
Certificate | RoHS |
Cutting tool | Cutting machine, scissors |
Datasheet:
Part No. | I.D.(I) (mm) | Wall thickness (t) (mm) | Packaging (L) m/roll |
MDWG-003 | 3.00 | 0.18 | 100 |
MDWG-004 | 4.00 | 0.30 | 100 |
MDWG-005 | 5.00 | 0.30 | 100 |
MDWG-006 | 6.00 | 0.30 | 100 |
MDWG-007 | 7.00 | 0.35 | 100 |
MDWG-008 | 8.00 | 0.35 | 50 |
MDWG-010 | 10.00 | 0.35 | 50 |
MDWG-012 | 12.00 | 0.35 | 50 |
MDWG-015 | 15.00 | 0.43 | 50 |
MDWG-018 | 18.00 | 0.43 | 50 |
MDWG-020 | 20.00 | 0.43 | 50 |
MDWG-025 | 25.00 | 0.43 | 50 |
MDWG-030 | 30.00 | 0.43 | 50 |
Note:
1. The part No. will be followed by BK, WH to indicate the color of sleeving.
2. Special packages and sizes can be supplied upon request.
3. All numeric data shows average or typical values, not including customized sizes.
