Usage: | protectiong wire harness and optic fiber; | Certificate: | RoHS,; |
Standard Color: | black/red/yellow/blue/green; | Packaging Detail: | spoll,carton box; |
Brand Name: | TONY; | Material: | PET (Nylon is also),PET; |
Place of Origin: | Guangdong China; | Payment Terms: | T/T,Western Union,Paypal/Credit Card; |
Model Number: | ID.3mm~76mm; | Supply Ability: | 1000000 Meter/Meters per Week; |
Type: | braided sleeve; | Flammability: | Flame-retardant VW-1; |
Melt Point: | 250°C±5°C; | Port: | shenzhen; |
Feature: | braided and expandable; | Operating range: | -50°C to +150°C; |
Sample: | Free; | Cutting tool: | Hot Knife; |

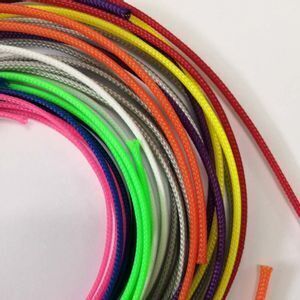

ID.3mm~76mm Colorful PET Braided Expandable Cable Sleeve
Description:
PET braided expandable cable sleeving is sleeved by the ROHS polyester silk knitting .It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety. Products are widely used in computer power cord, audio-video, automotive, aviation , wire and cable industries, It has protect and beautify the role. Others can be customized according to customer demands including a variety of colors, patterns and all kinds of UV fluorescence color.
Datasheet
Part No. |
Size Dia. mm |
Max. bundle Dia. mm |
Packing (Long) |
FR-003 |
3.0 |
6.0 |
500m |
FR-004 |
4.0 |
7.0 |
500m |
FR-006 |
6.0 |
9.0 |
500 m |
FR-008 |
8.0 |
16.0 |
350 m |
FR-010 |
10.0 |
19.0 |
350 m |
FR-012 |
12.0 |
24.0 |
200 m |
FR-014 |
14.0 |
25.0 |
200m |
FR-016 |
15.0 |
27.0 |
200 m |
FR-019 |
20.0 |
30.0 |
200 m |
FR-025 |
25.0 |
35.0 |
200 m |
FR-032 |
30.0 |
50.0 |
150 m |
FR-038 |
40.0 |
60.0 |
100 m |
FR-045 |
45 |
75 |
100 m |
FR-050 | 50 | 80 | 100 m |
FR-064 | 64 | 105 | 100 m |
FR-076 | 76 | 120 | 100 m |
Main Properties:
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3.Flammability: UL VW-1
4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5.Cutting tool: Hot knife
6. Certificate: RoHS, MSDS
Braided Expandable Cable Sleeving Application:
1. Automobile wires protection
2. Structured cabling system
3.A/V cables & cables
4.Industrial hoses & tubes protection
