Top quality electrostatic powder coating system for worldwide distributor

Supplier: Hangzhou Color Powder Coating Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Betty Wang
Price: $9500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Coating:	Powder Coating;	Warranty:	1 year;
Port:	Shanghai/Ningbo;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Energy & Mining,Food & Beverage Shops,Advertising Company,powder coating;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Packaging Detail:	wooden carton or paper carton for powder coating plant including powder spray gun,powder coating booth and curing oven.;
Weight:	55kgs;	Supply Ability:	1000 Piece/Pieces per Month;
Certification:	CE;	Power(W):	50W;
Type:	Powder Coating Booth;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Voltage:	100-240V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	COLO;	Condition:	New;
Place of Origin:	Zhejiang China;	Dimension(LWH):	120cm80cm80cm;
Substrate:	Steel;

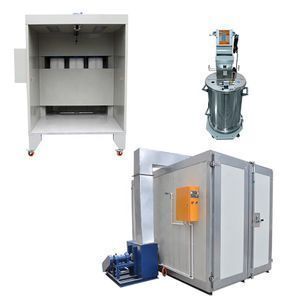

Electrostatic powder coating system include Electrostatic spray powder coating machine ,powder spray booth and powder curing oven.

This manual powder coating machine package gives an easy and quick start of powder coating businesses. efficient and econimical solution for DIY coating rims, and other small objects such as bike and bicycle accessories

1. Powder coating gun

0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed - 55L (other size hopper also could availbale)

Manual coating equipment Function description

the powder gun through the powder hose . The powder is electrostatically

charged at the nozzle of the gun. In addition, an electrostatic field is

created between the gun nozzle and the grounded object. The charged

powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from

below. The powder acquires, thereby, fluid-like characteristics.

The conveying air, supplementary air, and rinsing air are set on the control

Unit

Electrical data
Mains input voltage	100-240 VAC
Operating frequency	50-60 Hz
Input power	50W
Nominal output voltage (to the gun)	max. 12 V
Nominal output current (to the gun)	max. 1 A
	IP54
Ambient temperature range	0°C - +40°C (+32°F - +104°F)
Max. operating temperature	85°C (+185°F)
Approvals	CE

Pneumatical data
Compressed air connection	1/4" male quick release
Max. input pressure	10 bar / 145 psi
Min. input pressure (while unit in operation)	6 bar / 87 psi
Max. water vapor content of the compressed	air 1.3 g/m³
Max. oil vapor content of the compressed air	0.1 mg/m³

2. Powder spray booth

Powder spray booth is an economical solution for basic powder coating operations requiring reclaim capability in continuous production situations.

For job shops, first-time powder coaters and to suppliment large in-house powder coating operations,this powder spray booths offer a variety of configuration options.

Also could Custom designed,Manual and automatic spray stations are also available.

Other features include:

COLO-S-1517-A

Normal control

100% polyester filters, quick-release type

Clean by solenoid valve automaticly

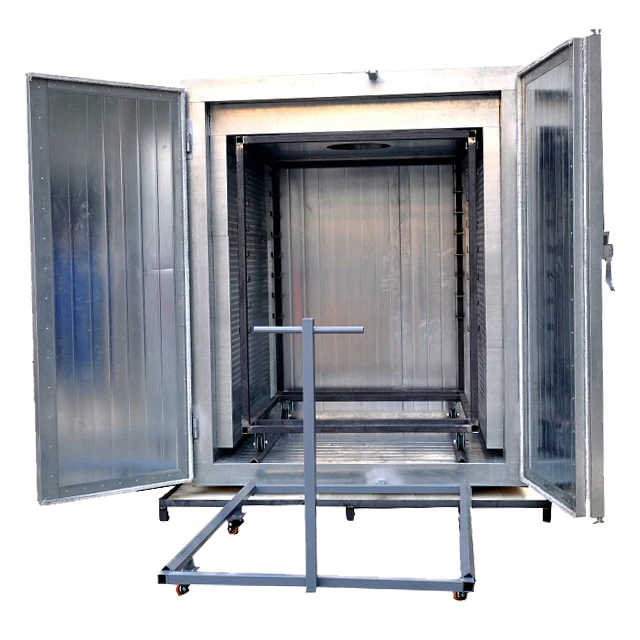

3.powder curing oven

Used for curing the workpiece which has been spraying during the powder coating.

When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

The powder coating process involves three basic steps:

Part preparation or the pre-treatment
The powder application
Curing

If you need more information, pls click here.

Production flow

Advanced production equipment and precise technology level guarantee the first class quality.

Certifications

COLO powder coating spray gun, spray booth and curing oven adhere to CE, ISO certificates. With advanced technology for good effect uses. We are professional in powder coating field and have the ability to design based on special requests.
