3000w pure sine wave off grid solar charger controller inverter with UPS function

Product details
Output Voltage:110V/120V/220V/230V/240V;Output waveform:Prue Sine Wave;
Solar controller:MPPT;Output Current:30A;
Type:DC/AC Inverters;Weight:20kg-30kg;
Grid power input frequence:45-65Hz;Output Frequency:50Hz/60Hz;
Warranty:2 Years;Place of Origin:China;
Size:310mm*145mm*465mm;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Grid power Input voltage:85-138VAC/170-275VAC;solar charge controller inverter:3kw off grid solar charge controller inverter;
Certificate:CE ROHS;Packaging Detail:3000w pure sine wave off grid solar charger controller inverter with UPS function 300w-1000w off grid solar inverter pack in carton box, 1500w-10000w off grid solar power inverter pack in plywood box.;
Switching time:<10ms ( Typical load );Input Voltage:24V/48V/96V;
Brand Name:Sunchees;Display:LCD;
Battery charge current:20A;Model Number:SIC3KW;
Supply Ability:3000 Piece/Pieces per Month;Output Type:Single;
Port:Guangzhou/ Foshan;

3000w pure sine wave off grid solar charger controller inverter with UPS function



Product Description







Sunchees off grid solar charge controller inverter features



1. Double CPU intelligent control technology, performance excellence;



2. The power mode / energy saving mode / battery mode can be set up, flexible application;



3. The type of battery / charging current can be set, convenient and practical;



4. smart fan control, safe and reliable;

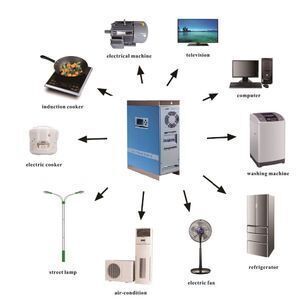

5. The pure sine wave output, can adapt to various types of load;



6. The LCD real-time display device parameters, running status at a glance;



7. The output overload, short circuit protection, automatic protection and alarm;



8. The intelligent solar controller, overcharge, overdischarge protection, current limiting charging, multiple protection;

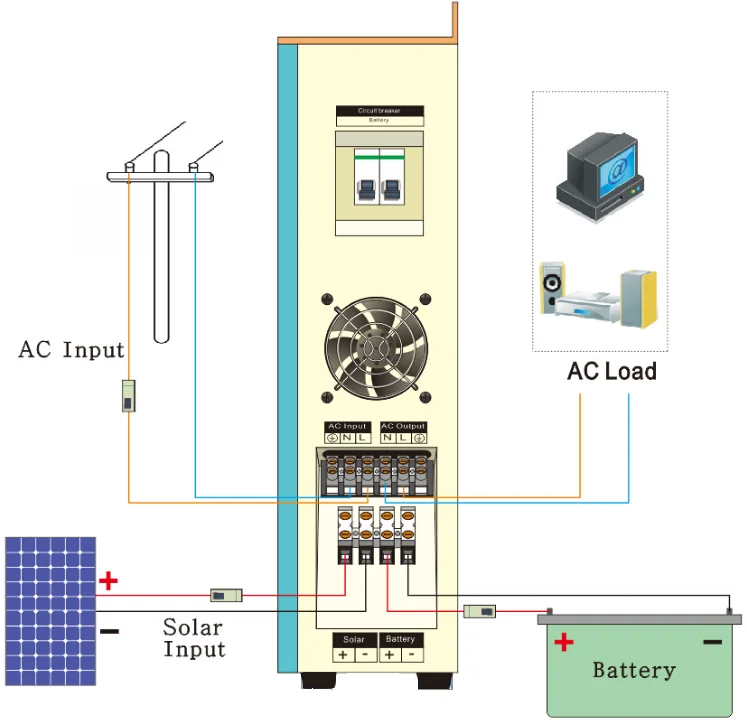

9. Easy operation,only need connect the panels and batteries directly to the Hybrid solar inverter.



Off grid solar charge controller inverter Specification



Model

SIC2000W

SIC3000W

SIC4000W

SIC5000W

Battery

Rated voltage

24VDC

48VDC

48VDC

48VDC

Charging current

20A

Input

Charging current

85-138VAC/170-275VAC

Frequency

45-65Hz

Output

Voltage range

50/60Hz±1% ( inverter mode )

Switching time

<10ms ( typical load)

Frequency

110VAC/220VAC; ±5%( inverter mode)

Output waveform

Pure sine wave

Efficiency

>85%(80% resistive load)

Overload

110-120%/30S; >160%/300ms;

Protection function

Battery over voltage and low voltage protection, overload protection, short circuit protection, over temperature protection, etc.

Solar controller

Maximum  PV  voltage

≤50(VDC)

≤50(VDC)

≤100(VDC)

≤100(VDC)

Charging voltage range

20-50(VDC)

20-50(VDC)

40-100(VDC)

40-100(VDC)

Rated charging current

60A

Maximum power

720(W)

720(W)

1440(W)

1440(W)

Over charge protection voltage

28.4(VDC)

28.4(VDC)

49.6(VDC)

49.6(VDC)

Over charge recovery voltage

28(VDC)

28(VDC)

56(VDC)

56(VDC)

Floating charge voltage

27.4(VDC)

27.4(VDC)

54.8(VDC)

54.8(VDC)

Operating ambient temperature

0-40℃

Storage ambient temperature

-15 - +50 ℃

Operation / storage environment

0-90%  No condensation

Package size: length * width * height

370mm*195mm*570mm

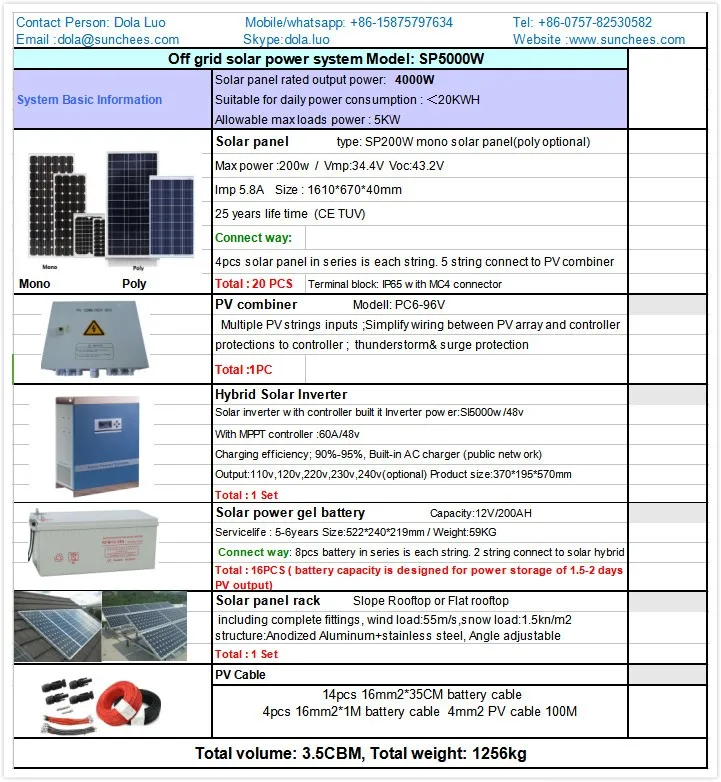

We design and make complete set solar power system, detailed quotation and specification, welcome to contact us directly.

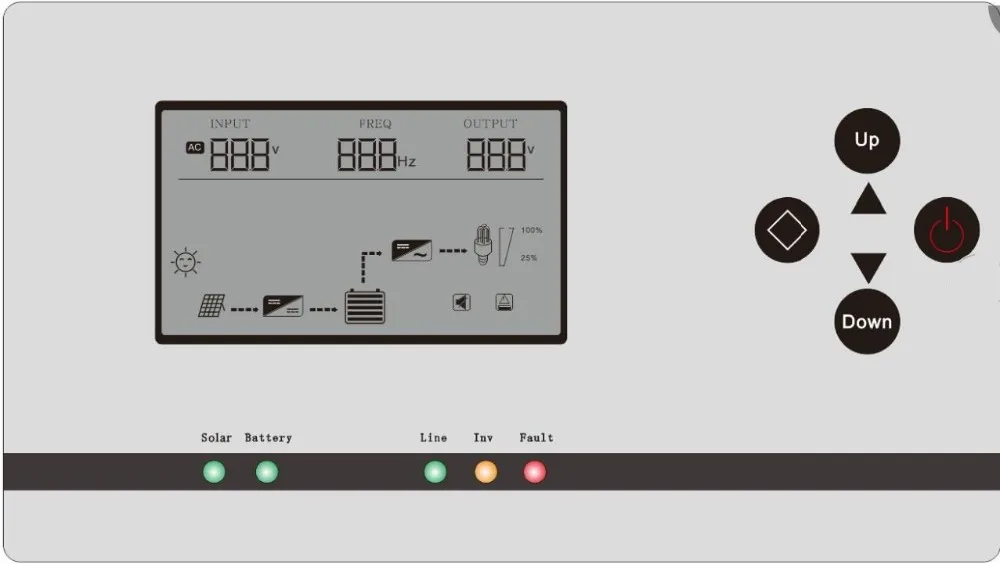

LCD display







Packaging & Shipping

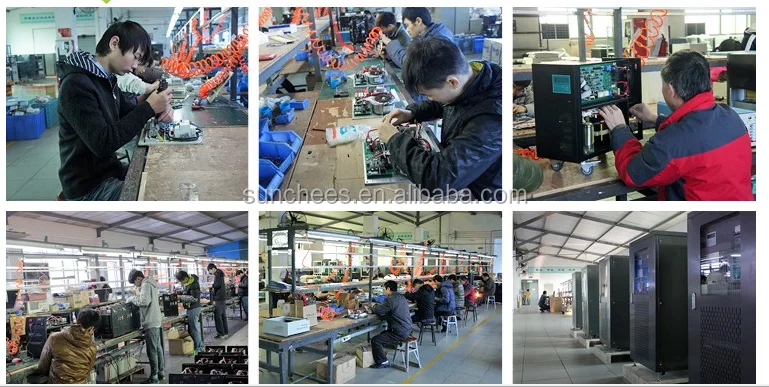

Company Information





FAQ

Q1.Are you factory?

A1. Yes, our factory and sales department are located in Foshan and we would be pleasured to welcome you in our factory at any time when you are in China.



Q2.All products have a warranty?

A2.Yes. All products are at least 2 years warranty.



Q3.What is the shipping way?

A3.DHL,UPS,TNT,EMS,FedEx, Ship by sea.



Q4. What is the payment method?

A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/MoneyGram/Alibaba can also be used.



Q5.Can we design packing?

A5.Yes.We can use customer's own packing



Q6.Can we add our logo on products?

A6.Yes.We can add your logo on products.



Q7.Can we customize product?

A7.Yes.OEM&ODM.



A8.Are there some optional function for your inverter?

Q8.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.



Q9.what is Sunchees inverter after sales service

A9.during the warranty ,ship free PCB by DHL or FEDEX.



Q10.what is your trade Assurance

A10:100% product quality protection

       100% product on time shipment protection

       100% payment protection for your covered amount



Our Services



We accept OEM and small trial orders, more information or would like the quotation, pls feel free to contact with me directly!
