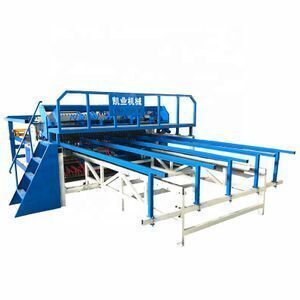

Automatic wire mesh fence panel welding machine

Automatic wire mesh fence panel welding machine

Description of machine:

This production line is I am at home and abroad for many years with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery process automatic control. Equipment to strengthen the damping process, effectively reducing noise.

Welding wire diameter range of the device is 3-6mm, the mesh size is 50-200mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).

Welding host, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.

Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.

Wire alignment and length by integrated design, and the use of PLC control, easy to operate.

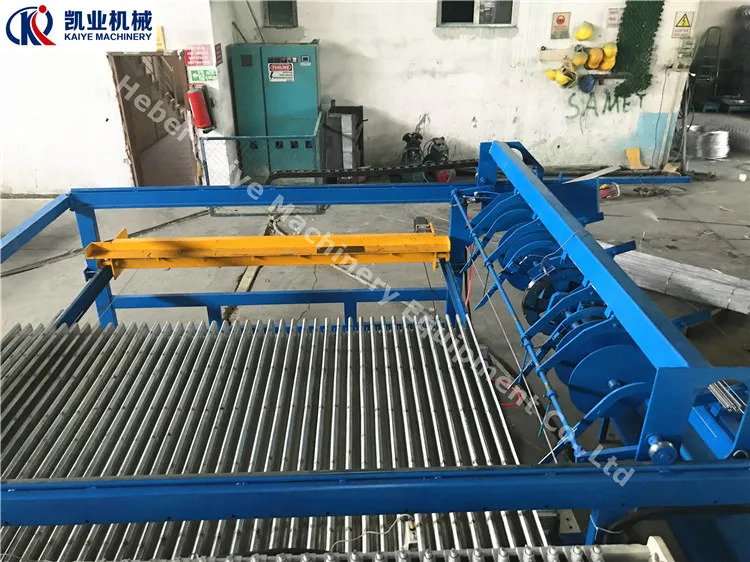

Wire mesh collection device to take up the space is little, simple, reliable, easy to assemble, easy to handle, suitable for the production flexibility of large customers.

System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. By raw material usage optimization system can achieve the ultimate. The greatest degree of raw material savings for customers. Improve production efficiency, provide more efficient, intelligent management.

welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

Features of product:

1,CNC wheel-step design to provide high accurate mesh grid

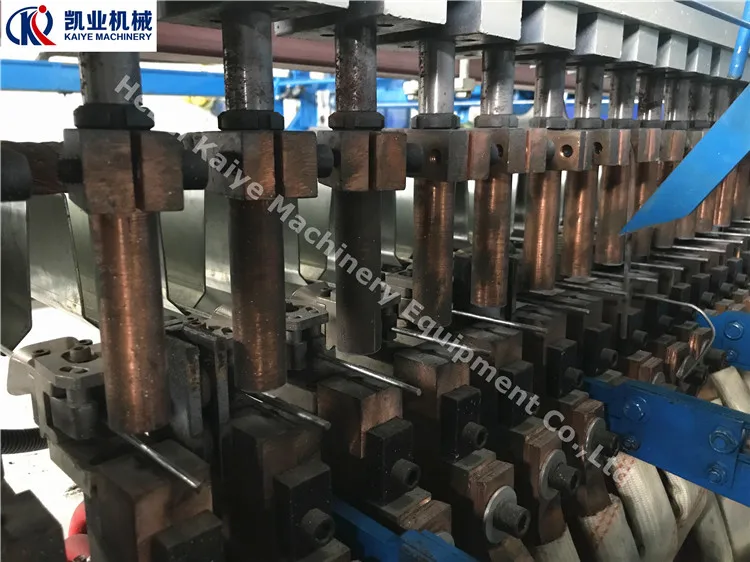

2,Electrode lift system to extend electrode life

3, Line wire loop and balance system to ensure wire mesh accuracy.

4,Line wire vertical straightening system to provide high quality

5,Welding pressure steplessly adjust to apply multiple wire diameter

6,High speed mesh cutting system,

7,Line wire automatic put by from wire feeding car

8,Automatic mesh turning, stacking and conveying system

Mechanical parameters

»Please reply the questions as below for we give you the best price:

1. Wire diameter : From  mm to  mm.

2. Line wire space : From  mm to  mm.

    Cross wire space : From  mm to   mm.

3. Mesh width: 1200mm,1600mm, 2100mm, 2500mm, 3000mm ( customized)

4. Industrial voltage : 380V 50HZ ( Customized)

5. Do you want to weld wire mesh panel or mesh in coil ?

6. Is the auxiliary equipment also require ?

If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.
