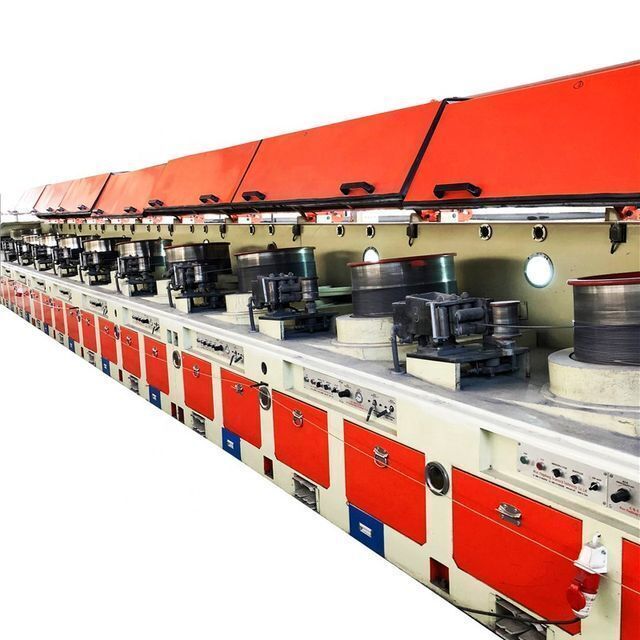

High speed automatic steel wire drawing machine with PLC control
-
Supplier: Hebei Kaiye Machinery Equipment Co., Ltd. -
Region: Hebei, China -
Contact: Mr Larry Liu -
Price: $11200.00 / 1 - 2 sets
$8980.00 / 3 - 4 sets
$6380.00 / >=5 sets -
Min. Order: 1 set
| Inlet Diameter: | 6.5mm; | Type: | Horizontal Metal Drawing Machine; |
| Warranty of core components: | 1 Year; | Port: | XINGANG,TIANJIN; |
| Video outgoing-inspection: | Provided; | Voltage: | 220V/380V/415V/440V; |
| Supply Ability: | 15 Set/Sets per Month; | Package Preview: | ; |
| Cooling system: | Water cycle; | Showroom Location: | Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia; |
| Power: | 22KW/30KW; | Place of Origin: | Hebei China; |
| Condition: | New; | Spare parts: | Wire Drawing Die; |
| Warranty: | 1 year; | HS code: | 8463102000; |
| Control system: | Frequency Conversion; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Core Components: | Gearbox,Bearing,Motor,PLC; | Drawing Capstan: | Ceramic Plasma Capstan; |
| Usage: | Metal Wire Drawing; | Certification: | CE ISO; |
| Packaging Detail: | Main mechanical plastic packaging and steel wire fixed in the container,Accessories are packed in wooden cases; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Drawing Speed: | 12 m/s; | Marketing Type: | New Product 2020; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Farms,Construction works ; | Key Selling Points: | Easy to Operate; |
| Weight: | 1500KG; | Suitable material: | Medium High Carbon Steel Wire; |
| Local Service Location: | Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; | Year: | 2021; |
| Outlet Diameter: | 2.0mm; | Machinery Test Report: | Provided; |
| Keywords: | wire drawing machine; | Dimension(L*W*H): | 1.3m*1.8m*1.3m; |
| Brand Name: | KAIYE; |
Product Application
1.Product Introduction
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
2.Working flows and automation

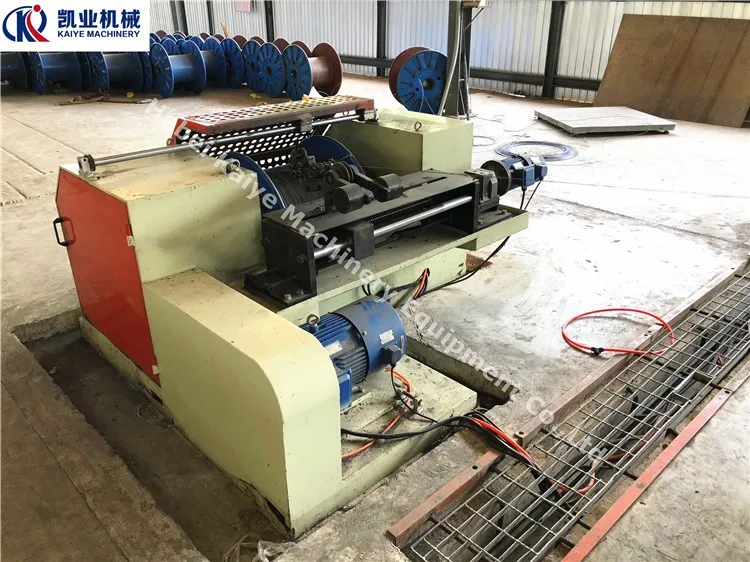

Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
LZ11/560 Straight line Wire drawing machine | ||||||
Capstan diameter | 560mm | |||||
Capstan numbers | 11 | |||||
Inlet wire diameter | Φ8.0mm | |||||
Outlet wire diameter | Φ2.0mm-Φ6.0mm | |||||
Tensile strength | ≤600mpa | |||||
Total compressibility | 90.53% | |||||
Average compressibility | 25.52% | |||||
Max. Speed | 12 m/s | |||||

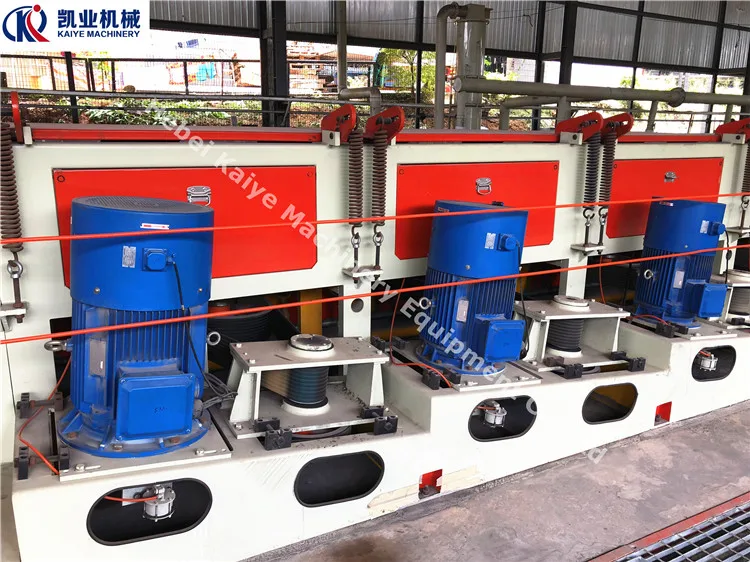

Power | 22 KW*11 (Frequency conversion motor )+22KW*11(inverter) | |||||
Mold size | Φ40mm×25 | |||||
Block type | Vertical ,tilted | |||||
Take-up wire | Elephant trunk type take-up system | |||||
Tension frame | Internal tension frame. | |||||
Main frame | Welding of steel plate and square pipe. | |||||
Stop brake | Pneumatic brake | |||||
Vacuuming design | Reserve suction hole | |||||
Lighting | Each stand with separate lighting. | |||||
PLC | Siemens | |||||
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
Machine Parts

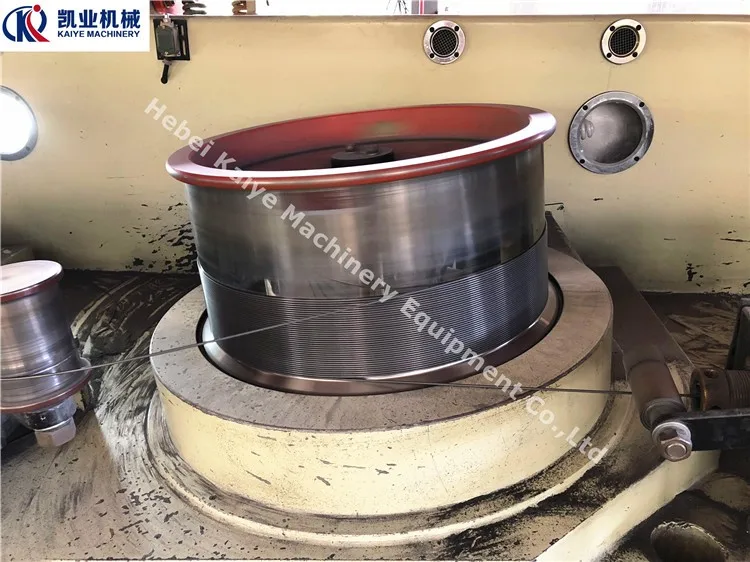

Name: Drawing drum
①Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60.
②Surface roughness less than 0.8mm.,hardness HRC>55, the interior part of the capstan is by the process of ZnAl corrosion spraying.
③The effective life of the capstan is over 22000 hours.
Main Features

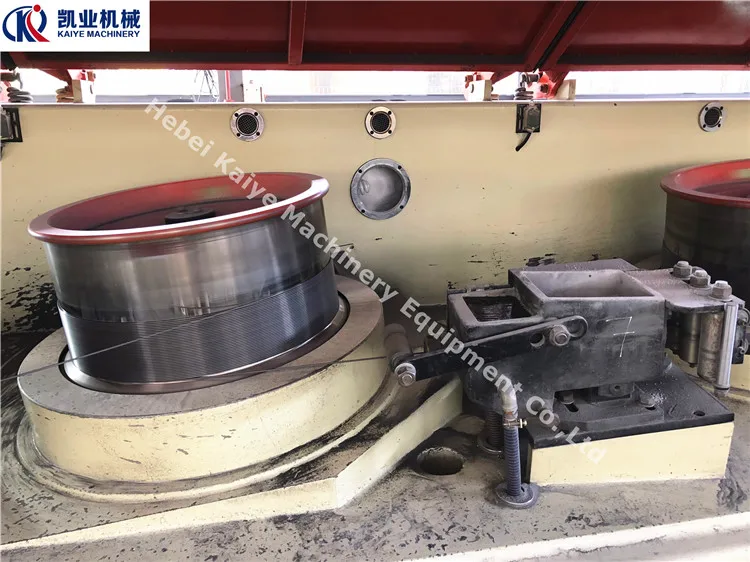

Name: Mold box cooling
The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good.

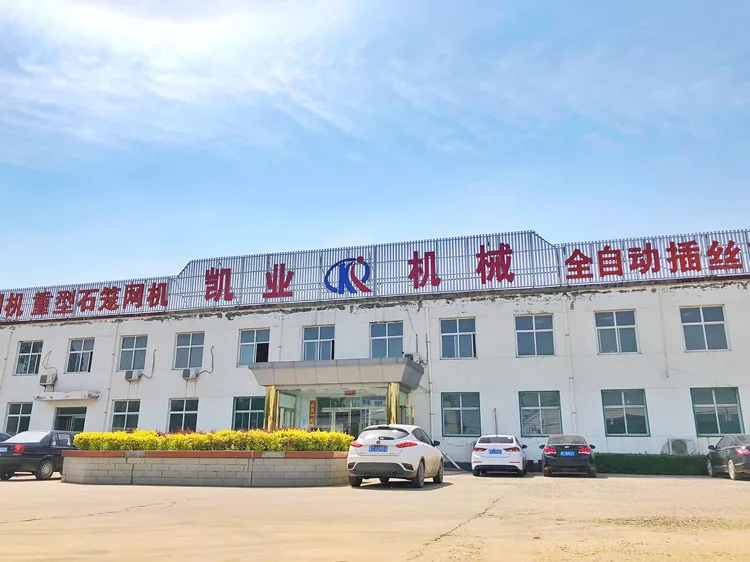

Hebei Kaiye Machinery Equipment Co., Ltd.

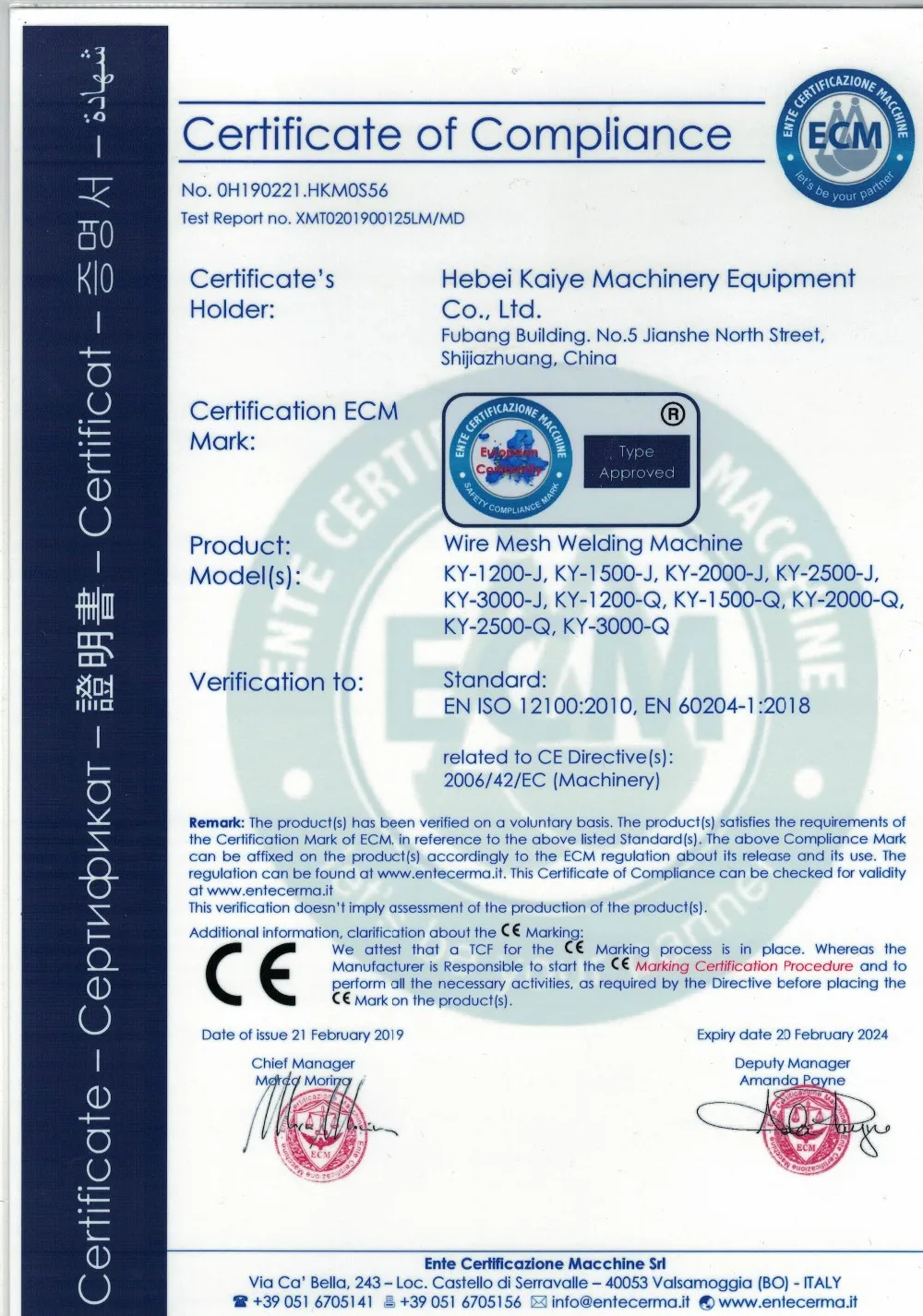

1. We are professional wire mesh machine manufacturer with almost 20 decades experiences in China.We have senior engineers,senior technicians,more than 100 employees and we own many national patent. Our products got ISO9001:2009&CE&SGS certificate.
2. We are located in Anping,the wire mesh capital in China, with huge wire mesh industry support. All of our machines comply with international quality standards and customers' needs, and are greatly appreciated in a variety of markets all over the world. Our main market is Asian, Africa, South America ect.
3. Hebei Kaiye Machinery Equipment Co., Ltd. is a professional manufacturer and exporter integrating the design, development and production of wire mesh machines for flooring heating mesh machine, poultry cage welding machine, construction mesh welding machine, fence mesh welding machine, reinforcing mesh welding machine and related accessories.
Factory Customer
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1.3m (L) * 1.8m (W) * 1.3m (D) | |
Weight | 1.5 T | |
Packaging Details | ||
Packaging | ||
Size | 1.3m (L) * 1.8m (W) * 1.3m (D) | |
Weight | 1.5 T | |
Packaging Details | ||
CNC stirrup rebar bending machine
91.8% Response Rate
wire straightening and cutting machine
91.8% Response Rate
Chain link fence machine
91.8% Response Rate
Q:Why choose us?
A:Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q:Where is your factory located?
A:Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q:How do you guarantee your machine's quality when producing?
A:Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factoty before shippment ,all the parts are in good condition.
Q:What's the payment terms?
A:T/T, 30% in advance, and the balance before delivery. also accept LC.
Q:How to use the Machine?working machine?
A:Offer video and operation manual,if need engineer oversea service,the customer need to pay the round air tickets,hotel,food and also the salary USD 80 per engineer one day.
Reminder
If you have any interest in wire drawing machine or other wire mesh machine products,please feel free to contact with us.I hope we can provide you with the best machines and services.
-
