Drawn Cup Full Complement One Way Needle Roller Bearing HFL 3030 HFL3030
-
Supplier: Changzhou Suma Precision Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Ellen zhang -
Price: $1.20 /piece -
Min. Order: 1 piece
| Thickness: | 30mm; | Selling Units: | Single item; |
| OEM: | Accept; | Brand Name: | SUMA; |
| Model Number: | HFL3030; | Cage Material: | ST14; |
| Type: | Needle; | Port: | Shanghai ; Ningbo; |
| Application: | Light industry, printing, packing machinery; | Single package size: | 19X18X10 cm; |
| Package Preview: | https://sc02.alicdn.com/kf/HTB1MD1XKr1YBuNjSszeq6yblFXaZ.jpg_640x640.jpg; | Single gross weight: | 0.5 KG; |
| Product Name: | Drawn Cup Bearings; | Precision Rating: | P0 PI; |
| Seals Type: | non-sealed; | Package Type: | Roll pack + Carton Box; |
| Bore Size: | 30 - 30.001 mm; | Delivery: | 2 Days; |
| Package: | Roll Pack + Carton Box; | Number of Row: | Three Row; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining; | Place of Origin: | Jiangsu China; |
| Needle Material: | GCr15; | Weight: | 51g; |

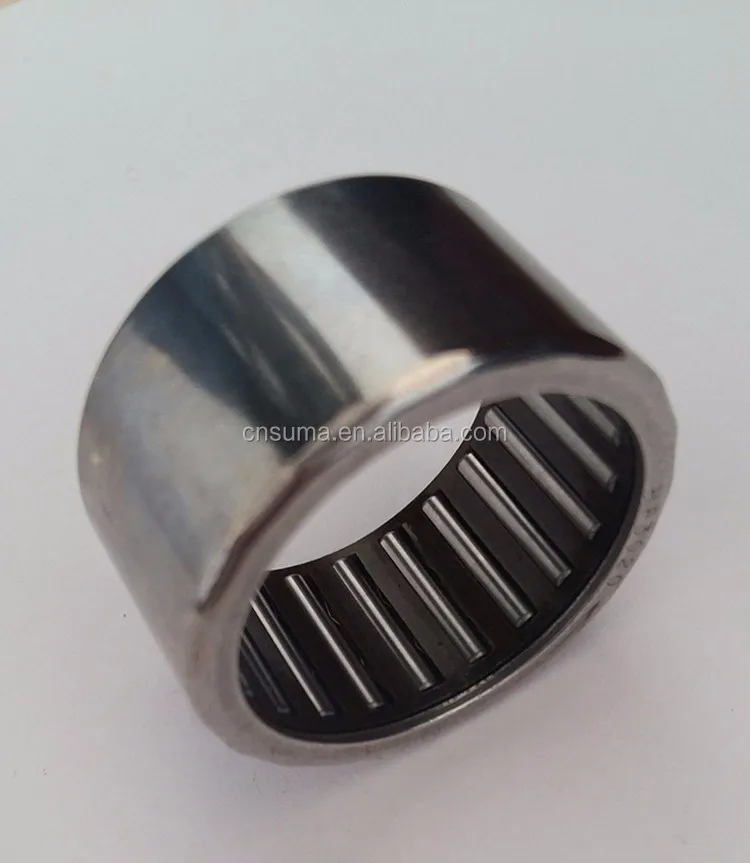

Drawn Cup Needle Roller Bearing HFL 3030 HFL3030
Structure of Drawn Cup Bearngs :
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Product name | drawn cup needle bearing |
Model | HFL3030 |
Material | ST14 |
Torque capacity | 90Nm |
Inner diameter | 30mm |
Outer diameter | 37mm |
Height | 30mm |
Weight | 51g |
Application | Light industry, truckle, printing, textile, packing machinery |
Package | Roll pack + Carton box + Wooden Pallet |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of Drawn Cup Bearings for your choice
Shaft Diameter |
| Mass Approx |
| Torgue Ma |
| Basic Load Ratings | |||||
|
|
| |||||||||
Clutch Designation | Borndary Dimensions | Limiting Speed | |||||||||
|
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | C | Co | |||
|
| KN | |||||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
-- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
-- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
-
