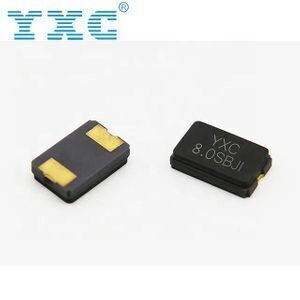

5032 8MHz 10PPM 20PF SMD 2 Pins Crystal Ceramic Resonator Package

Click here to contact
Product details
Package:2-SMD;Selling Units:Single item;
Package Type:1000pcs/reel;Frequency Range:8-54MHz;
Single package size:23X21X4 cm;Load Capacitance:20pF;
Certification:ISO9001, REACH, SGS, RoHS;Model Number:YSX530GA;
Frequency Tolerance:±20ppm;Package Type:ceramic;
Factory Manufacturer:Yes;Brand Name:YXC;
Place of Origin:Zhejiang China;Aging(25'C):±3ppm/Year;
Operating Temperature:-20℃ ~ +70℃;Company Information:33 Years Experience;
Frequency:8MHz;Customised Frequency:Accept;
Single gross weight:0.13 KG;
Specifications

Specifications

1. External dimensions: 5.0*3.2*1.2mm.

2. Frequency range: 8 ~ 54MHz.

3. 2 pads SMD glass sealed crystal units.

4. High reliable environment performance.

5. Tight tolerance and stability parts are available.

6. Designed for automatic mounting and reflow soldering.

7. Reasonable cost and good delivery performance.

8. Contains Pb in sealing glass exempted by RoSH directive.

9. The best choice of portable PC, PDA, DSC and USB interface card.



Electrical Specifications

Item/Type

YSX530GA

Nominal Frequency Range

8~54MHZ

vibration Mode

AT Fundamental

Load Capacitance

12pF, 20pF,or specify

Frequency Tolerance (at 25°C)±10ppm,±20ppm,or specify
Frequency Versus Temperature Characteristics±20ppm,or specify
Operating Temperature-20°C ~ +70°C, -40°C ~ +85°C,or specify
Storage Temperature-40°C ~ +85°C,or specify
shunt Capacitance7pF Max

 Level of Drive

1~100 W Max(10uW typical)

 Frequency Aging (at 25°C)

±3ppm/Year

Insulation resistanceMore Than 500MΩ  at DC 100V



REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.



More Products

Our Certification

1.33 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Custom-made Frequencies

Application



Company Information



Exhibition photo



Our Services









1. Extensive Stock Holding

2. Committed to combating counterfeiting

3. On time delivery

4. Money back quality guarantee

5. Customized service







FAQ



Q: Are you trading company or manufacturer ?

A: YXC is manufacturer of crystal oscillator, factory located in Zhejiang province, China. Welcome visited.

Q: How long is your delivery time?

A: 24 hours ship out if in stock. Lead time for customized orders will be 2-4 weeks.

Q: Do you provide samples ? is it free or extra ?

A: Free samples is offered and shipping cost will be around 5-10 dollars globally.

Q: What basic information to provide when ordering a crystal?

A: (1) Basically standard frequency, load capacitance, size, DIP or SMD. These are key points.

    (2) More demands like temperature range, frequency tolerance could be noted.

    (3) Would be better if datasheet is available. Technical suggestion is supportive.
