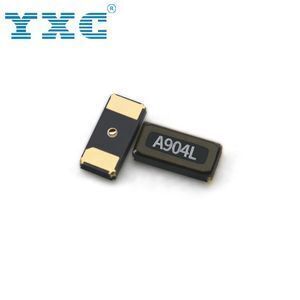

EPSON FC135 32.768 khz FC-135 32.7680KA-A5 Q13FC1350000400 Crystal Clock Oscillator 32.768Khz 12.5PF

Product details
Nominal Frequency:32.768KHZ;Packaging Detail:3000pcs Tape&Reel;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Load Capacitance:12.5pF;
Product No:Q13FC13500004;Samples:Accept;
Brand Name:YXC;Aging(25'C):±3PPM/year;
Certification:ISO9001, REACH, SGS, ROHS;Place of Origin:Japan;
Product Name:32.768Khz oscillator;Factory Manufacturer:YES;
Shipment:DHL, UPS, TNT, Fedex, EMS;Port:Shenzhen;
Package Type:Surface Mount;Package Type:SMD;
Dimensions:3.2*1.5*0.9mm;In stock:In stock;
Model Number:FC-135;Frequency Range:32.768KHZ;
Warranty:Global 180 Days Return;Supply Ability:30000 Piece/Pieces per Week;
Operating Temperature:-40℃ ~ +85℃;Frequency Tolerance:±20ppm;



Specification

Specifications

1. External dimensions: 3.2*1.5*0.80MM

2. Frequency range: 32.768KHZ

3. Overtone Order: Fundamental

4. Applications: Small communications devices



Electrical Specifications



Item/Type

FC-135

Nominal Frequency Range

32.768KHZ

Storage Temperature

-55℃ to +125℃

Operating Temperature

-40°C ~ +85°C (+105℃)

Level of drive

0.5μW(1.0μW Max)

Frequency Tolerance(at 25℃)

±20ppm
Shunt Capacitance (C0)1.3pF Typ
Dynamic Capacitance (C1)3.4fF Typ
Aging @25℃ 1st year(Max)±3PPm/year



More Product

Our Certification

1.33 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Custom-made Frequencies

Application



Company Information



Exhibition photo



Our Services









1. Extensive Stock Holding

2. Committed to combating counterfeiting

3. On time delivery

4. Money back quality guarantee

5. Customized service







FAQ



Q: Are you trading company or manufacturer ?

A: YXC is manufacturer of crystal oscillator, factory located in Zhejiang province, China. Welcome visited.

Q: How long is your delivery time?

A: 24 hours ship out if in stock. Lead time for customized orders will be 2-4 weeks.

Q: Do you provide samples ? is it free or extra ?

A: Free samples is offered and shipping cost will be around 5-10 dollars globally.

Q: What basic information to provide when ordering a crystal?

A: (1) Basically standard frequency, load capacitance, size, DIP or SMD. These are key points.

    (2) More demands like temperature range, frequency tolerance could be noted.

    (3) Would be better if datasheet is available. Technical suggestion is supportive.
