Supplier Type: | Original manufacturer; | Samples: | Accept; |
Load Capacitance: | 12.5pF; | Voltage - Supply: | Not Applicable; |
Base Resonator: | Crystal; | Selling Units: | Single item; |
Shipment: | DHL, UPS, TNT, Fedex, EMS; | Packaging Detail: | 1000pcs/bag; |
Package Type: | Throught Hole,DIP; | Model Number: | YT-38; |
In stock: | In stock; | Frequency: | 32.7680KHz; |
Nominal Frequency: | 32.768KHz; | Dimensions: | 3.0*8.0mm; |
Media Available: | datasheet,Photo; | Company Information: | 33 Years Experience; |
Single gross weight: | 0.5 KG; | Warranty: | Global 180 Days Return; |
Frequency Tolerance: | 10ppm; | Certification: | ISO9001, REACH, RoHS; |
Single package size: | 22X20.5X6.5 cm; | Factory Manufacturer: | Yes; |
Brand Name: | YXC; | Frequency Range: | 32KHz; |
Application level: | Industrial; | Operating Temperature: | -20℃~+70℃; |
Place of Origin: | Zhejiang China; | Customised Frequency: | Accept; |
Cross Reference: | YT-26; |
Fetures:

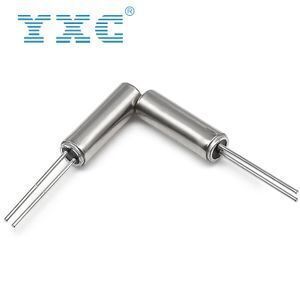

1. External dimensions: 3.0*8.0 mm.
2. Frequency range: 32.768KHz.
3. Frequency tolerance(standard):±20ppm.
4. Exellent Reliability Performance.
5. Applications: clock and Microcomputer.
Specifications:
Item |
YT-38 |
Nominal Frequency |
32.768KHz |
Mode vibration |
Fundamental/AT |
Load Capacitance |
12.5pF,or specify |
Frequency Tolerance (at 25°C): |
±10ppm, ±20ppm, or specify |
Frequency versus Temperature characteristic |
±20ppm, or specify |
Operating Temperature |
-20°C ~ +70°C -40°C ~ +85°C |
Storage Temperature |
-40°C ~ +85°C or specify |
shunt capacitance |
1.6 pF Max |
Level Of Drive |
1~100μW |
Insulation resistance |
more than 500Ω Min at DC100V±15V |
Frequency Aging @25°C |
±3ppm Max/Y |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
