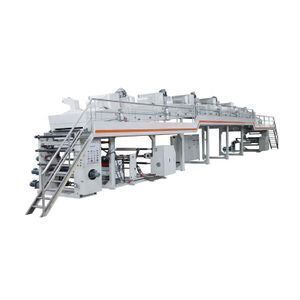

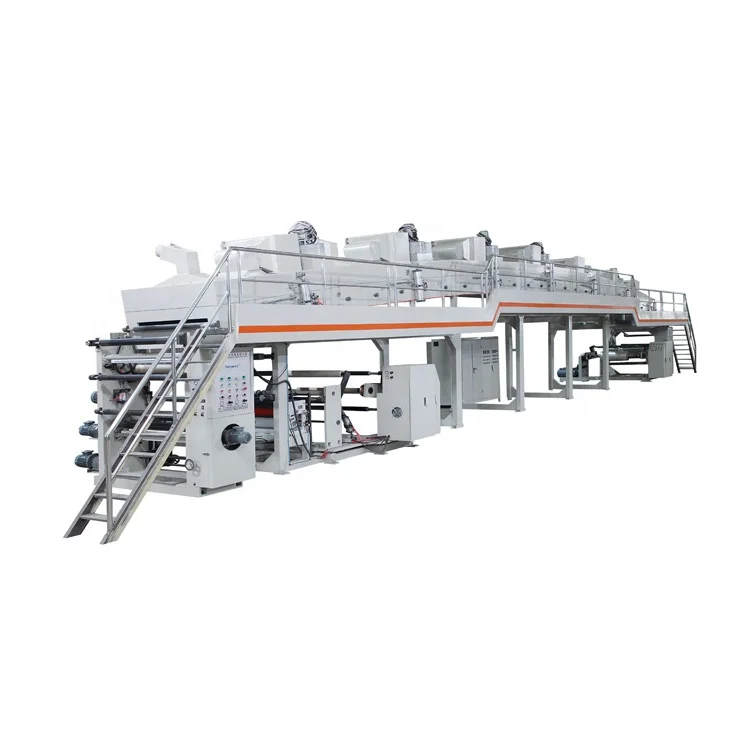

120KW Multi-functional coating machine for adhesive tape gl500c adhesive Tape coating machine

Supplier: Ruian Benyue Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms sala chen
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	NINGBO/SHANGHAI;	Tension Control System:	Mitsubishi;
Key Selling Points:	High Productivity;	Application:	Machinery & Hardware,Apparel,Textiles;
Glue Type:	Water based/solvent based;	After Warranty Service:	Video technical support,Online support,Spare parts;
Main Motor Brand:	ABB;	Web guide System:	Re /Italy;
Warranty:	1 year;	Supply Ability:	100 Set/Sets per Year;
After-sales Service Provided:	Engineers available to service machinery overseas;	Coating head:	gravure roller coating;
Humidification Systems:	Optional;	Dimension(LWH):	1300028003800mm;
Weight:	13000KGS;	Type:	Coating Machine;
Driven Type:	Electric;	Showroom Location:	None;
Place of Origin:	Zhejiang China;	Heating type:	Electric/Thermo oil / Steam Gas (based on users);
Packaging Type:	Case;	Applicable Industries:	Manufacturing Plant;
Certification:	CE/ISO9001;	Automatic Grade:	Automatic;
Touch screen:	Simens;	After-sales Service Provided:	Field installation, commissioning and training;
Condition:	New;	Voltage:	380v;
Payment Terms:	L/C,T/T;	Local Service Location:	None;
ovey open type:	side door open / pneumatic cylinder open;	Packaging Detail:	STANDARD EXPORTED WOODEN CASE;
Brand Name:	benyue;	Packaging Material:	Plastic,Paper,Wood;

120KW Multi-functional coating machine for adhesive tape gl500c adhesive Tape coating machineG MACHINE

Application:

HYTB-1000 COLORING/PAINT COATING MACHINE is widly used for making metallized film, stamping foil, dhesive tape, protective film, thermal paper, carbon paper, etc.

HYTB-1000 COLORING/PAINT COATING MACHINE is mainly suitable for reel -type substrate coating production.The material such as :

Paper ,Opp ,Alumium,CPP ,PET ,Bopp ,Fabric ,ETC .

Characteristics:

1 overall machine adopt 4frequency motor control, overall machine tension automatic control, speed keep synchronous

2 independent unwinding frame, adopt magnetic powder auto control the tension

3 gravure coating method, coating doctor blade shaft adopt heavy double shaft machine independent moving, blade adjust by manual with pneumatic, angle adjust freely, coating quantity depend the mesh of gravure roller, different coating quantity can change different mesh gravure roller.

4 oven 10m for 4section independently control, hot air intake drying system, adjustable inner cycle air intake and out device, air intake and out with strong air , dry thoroughly

5 oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker can work very easily.

6 the tension between coaitng roller and traction steel roller adopt float swing arm

7 auto-length and speed meter device

8 webguide adopt EPC air sensitive register to assure the trimness when rewinding

9 rewinding and unwinding adopt key type airshaft for easily operate when loading and unloading the material, air shaft take in/off adopt safety lock type

10 high presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat. to reach good cooling effect.

MAIN PARAMETER

type	TB-1000
Coating method	Gravure coating
Coating width	1000mm
Unwinding dia.	Ø600mm
Rewinding dia.	Ø620mm
Oven length	10M
Oven temperature	5-140°C
Work speed	10-110m/min
Machine speed	130m/min
diamension	13000×2800×3800mm
Machine weight	13000kg
Overall machine total power	120kw
