Condition: | New; | Warranty: | 1 year; |
swing angle of ram: | +/- 45 degree; | brake motor: | 1.5/0.85 kw; |
cross travel of table: | 320 mm; | tool shank size: | 25x40 mm; |
speed of main motor: | 700/1410 rpm; | products name: | vertical slotting machine; |
table diameter: | 350 mm; | Place of Origin: | shandong; |
After-sales Service Provided: | Online support,Video technical support; | Packaging Detail: | plywood cases; |
max.slotting length: | 160 mm; | Weight: | 1000 kgs; |
Dimension(L*W*H): | 1270x1100x1700 mm; | table loading: | 300kgs; |
Brand Name: | tokmc; | width of T-slot: | 14mm; |
Port: | qingdao; | Certification: | CE; |
Payment Terms: | L/C,D/A,D/P,T/T; | Supply Ability: | 100 Set/Sets per Month; |
Power(W): | 0.85/1.5 kw; | Voltage: | 380V 50HZ; |

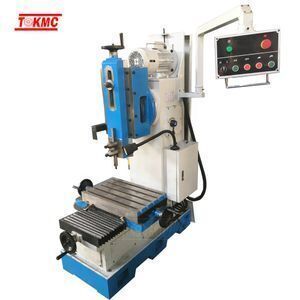

Vertical keyway slotting machine B5016C
Specification | Unit | B5016C |
Max. Slotting length | mm | 160 |
No. Of ram strokes per minute |
| 23,32,44,48,67 |
Swing angle of ram | deg | 45° |
Table diameter | mm | 350mm |
Vertical adjustment of ram | Mm | 160 |
Distanc between tool holding surface and column front | mm | 485 |
Distance between table surface and lower end of ram slide | mm | 320 |
Max.longitudinal travel of table | mm | 360 |
Max. Cross travle of travel | mm | 320 |
Max.rotary angle of table | deg | 360 |
Tool shank size (WXH) | mm | 25x40 |
Max.cutting force | N | 4500 |
Max.table load-carrying capacity | KGS | 300 |
Width of table center T-slot | Mm | 14 |
Power of main drive motor | Rpm | 700/1410 |
Net weight | KGS | 1000 |
Overall dimensions | mm | 1270x1100x1700 |
Slotting machine : standard accessory
1- Electrical System Suitable To CE
2-Motor 380 V / 50 Hz.
3 - Brake for Motor
4 - Spindle Chip Cover with Safety Switch
5 - Chip Covers for Guideways
6 - Chip Tray
7 - Time Adjustable Auto Lubircation System
8 - Rotary Table 320 mm & Chuck 250 mm & Index
9 – Working Lamp
10 - Coolant System /
11- Tool Holder 8-10-12 mm
12- Tools and Keys
