Products Status: | Stock; | Place of Origin: | Guangdong, China; |
Power supply: | DC 5V; | Interface protocols: | USB1.1; |
Interface Type: | DVI; | Selling Units: | Single item; |
Dimension: | 169*75*41mm; | Single gross weight: | 1.1 KG; |
Place of Origin: | Guangdong China; | Single package size: | 26X20X9.5 cm; |
Monitor Connections: | 1 Ports; | Brand Name: | PWAY; |
The warranty: | 1 year free warranty; | Model Number: | SD0201K2; |
Computer Connections: | 2 Ports; | Package Type: | kraft box; |
Resolution: | 4Kx2K@30Hz; | Maximum pixel clock: | 225MHz; |
Brand Name: | PWAY; | Standards: | DVI 1.0; |
Model Number: | PW-SD0201K; | Resolution: | 1920 x 1200; |

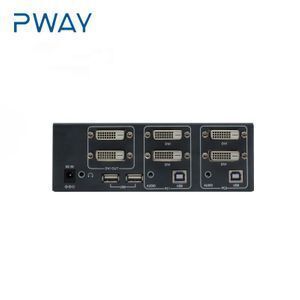

DVI AUDIO USB 2*1 SWITCH
Product Description
DVI KVM switch two groups of high-definition Audio and video source and USB interface implementation free switch, Adaptive EDID , can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity, make the output signal is more smooth and steady, is a reliable, high performance and efficient way of DVI USB switch.
Features
l The two lines of high-definition Audio and video source and USB interface implementation free switch
l Support video resolution max up to 4Kx2K@30Hz;
l Compliance with DVI 1.0 standard;
l Adaptive EDID , able to adapt to a variety of complex application environment;
l Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1 or 2)
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
Specifications
Parameter | Description | |
Video | Standards | DVI 1.0 |
Maximum pixel clock | 225MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to 4Kx2K@30Hz, 3D, 1920*1080@60Hz | |
Connector | DVI-D Interface | |
Impedance | 100Ω | |
DVI Cable Range | <5M( Resolution: 1920*1080@60Hz) | |
Audio | Interface | 3.5mm earphone seat |
Signal type | Stereo | |
USB | Interface protocols | USB1.1 |
PC input interface type | USB-B | |
Output interface type | USB-A | |
Other | Power supply | The power adapter: DC 5V |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 169*75*41mm | |
The warranty | 1 year free warranty |

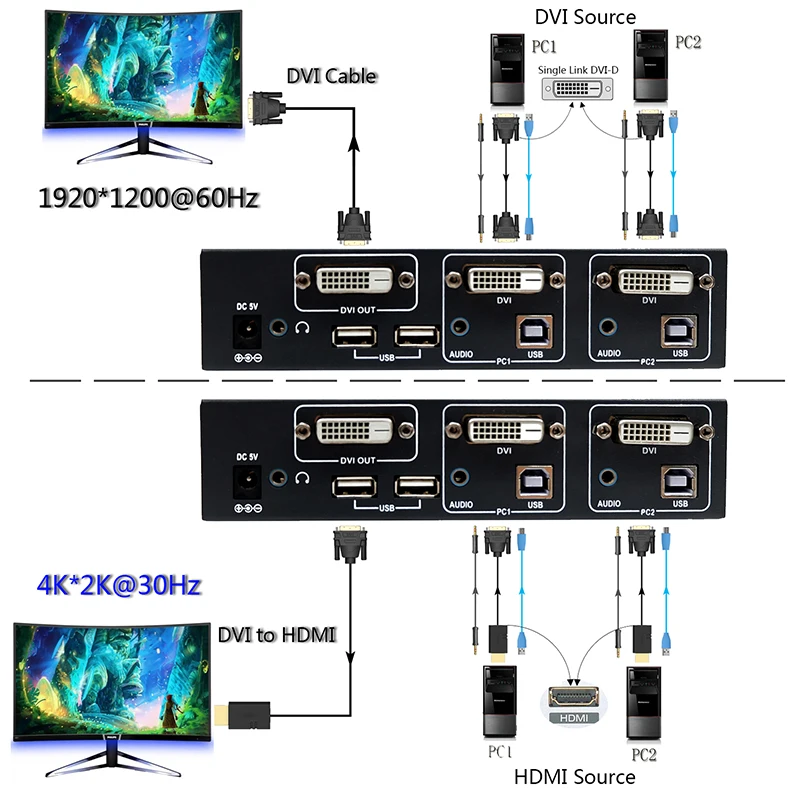

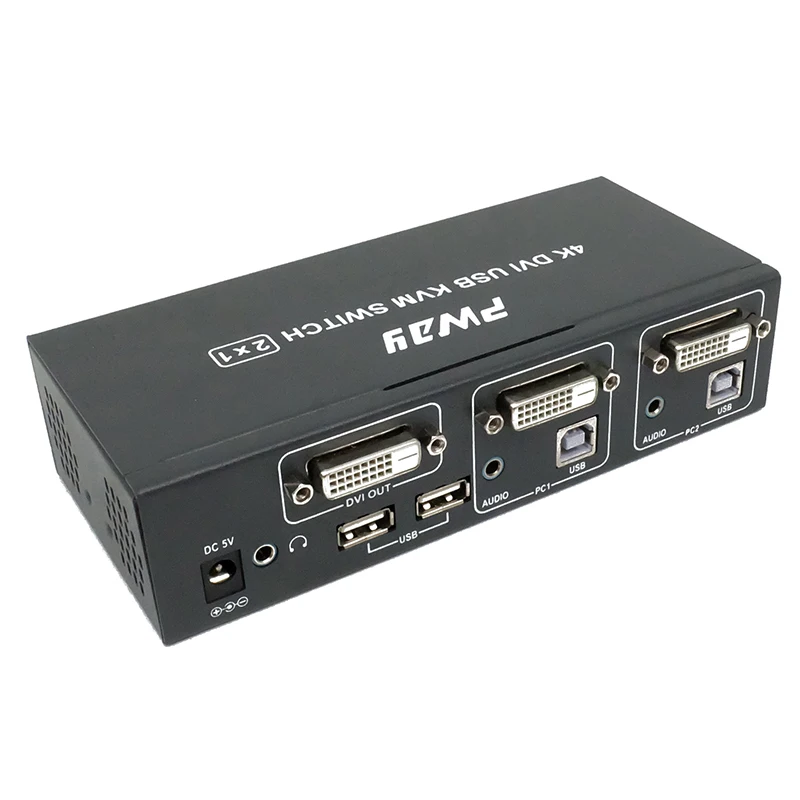

Detailed Images
Paking List
l DVI KVM2*1 Switcher host 1 pcs
l USB Cable 2 pcs
l DVI Cable 2 pcs
l Power adapter 1 pcs
l user manual 1 pcs
