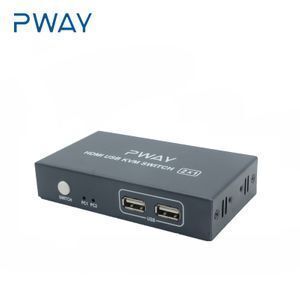

PWAY 4K HDMI 2Prot USB KVM Switch

Supplier: Shenzhen Pinwei Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Terry Li
Price: $14.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	PWAY;	Standards:	HDMI 1.4;
Temperature:	Operating: -5℃ ~ +70℃;	Maximum pixel clock:	225MHz;
Maximum data rate:	10.2Gbps;	Resolution range:	3840*2160@30Hz;
Computer Connections:	2 Ports;	Interface protocols:	USB1.1;
Selling Units:	Single item;	Products Status:	Stock;
Interface Type:	HDMI;	Monitor Connections:	1 Ports;
Resolution:	3840 x 2400;	Humidity:	Operating: 5% ~ 90%;
Place of Origin:	Guangdong China;	Package Type:	cowhide box or gift box;
The warranty:	1 year free warranty;	Dimension:	11061.7222mm;
Single package size:	26X17X7.6 cm;	Power supply:	USB-B power supply: 5V;
Model Number:	PW-SH0201B;	Single gross weight:	1 KG;

Product Description

Description

HDMI KVM switch two groups of high-definition Audio and video source and USB interface implementation free switch, Adaptive EDID , can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity, make the output signal is more smooth and steady, is a reliable, high performance and efficient way of HDMI USB switch.

Features

l The two lines of high-definition Audio and video source and USB interface implementation free switch;

l Support video resolution max up to 4Kx2K@30Hz;

l Compliance with HDMI 1.4 standard;

l Adaptive EDID , able to adapt to a variety of complex application environment;

l Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1 or 2)

l High compatibility, can auto-match source and display device;

l Built-in automatic adjustment system, make the image smooth, clear and stable;

l Built-in ESD protection system;

l Simple to install, plug and play;

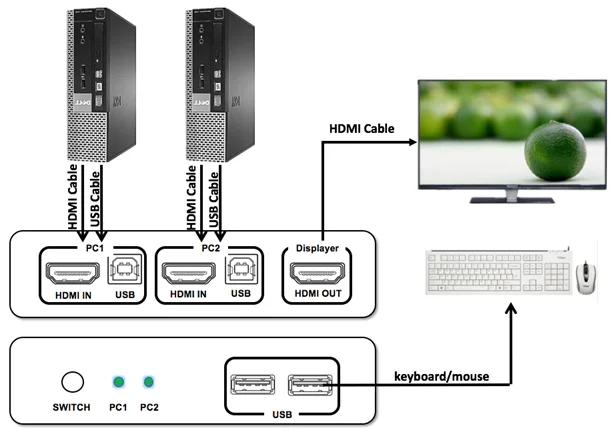

Panel

Port name	Description
1	PC1 group HDMI USB input
2	PC2 group HDMI USB input
3	HDMI video output signal
4	PC1, PC2 switch buttons and status indicators
5	PC1 status indicator
6	PC2 status indicator
7	USB keyboard mouse connectors
